E5242-64NO1
E5242-64NO1
E5242-64NO1

E5242-64NO1

UGC DOR5976378
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.73 CAD - $59.73 CAD
$59.73 CAD
$59.73 CAD - $59.73 CAD
$59.73 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage UNF (Unified National Fine) 2 avec 64 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 2,8 mm et carré d'entraînement de 2,24 mm, en HSS finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5242-64NO1
GradeLumineux
Product Number5976378
Product FamilyE524

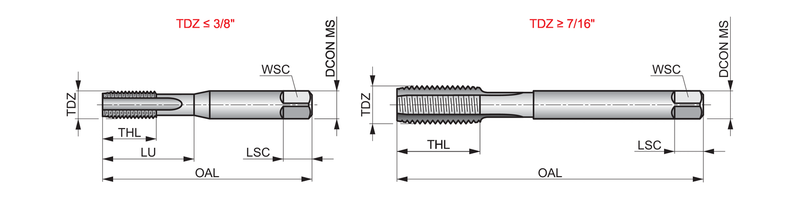

Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2
Thread Diameter — in (TD)0.086"
Thread Diameter — mm (TD)2.184 mm
Thread Form (THFT)UNF - Pas fin uniforme
Threads per Inch (TPI)64.0
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153727
EAN7320760153727
File Type Download
E5242-64NO1 — Line Drawing PDF Download
