E5242-64NO2
E5242-64NO2
E5242-64NO2

E5242-64NO2

UGC DOR5976381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.73 CAD - $59.73 CAD
$59.73 CAD
$59.73 CAD - $59.73 CAD
$59.73 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2, à entrée 4-6xP, pour filetage unifié fin (UNF) 2 avec 64 filets par pouce et tolérance 2B, dimensions selon la norme ISO 529 avec queue de 2,8 mm et carré d'entraînement de 2,24 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5242-64NO2
GradeLumineux
Product Number5976381
Product FamilyE524

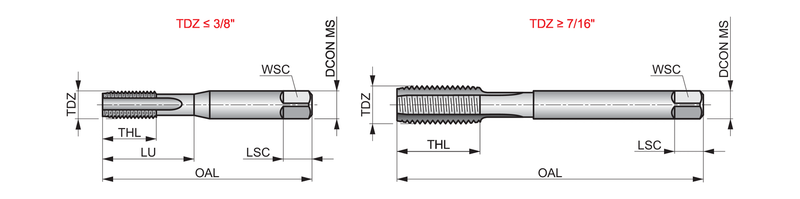

Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2
Thread Diameter — in (TD)0.086"
Thread Diameter — mm (TD)2.184 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)64.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number152843
EAN7320760152843
File Type Download
E5242-64NO2 — Line Drawing PDF Download
