E5242-64NO3
E5242-64NO3
E5242-64NO3

E5242-64NO3

UGC DOR5976387
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.73 CAD - $59.73 CAD
$59.73 CAD
$59.73 CAD - $59.73 CAD
$59.73 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage Unified National Fine UNF 2 à 64 filets par pouce avec jeu 2B, dimensions selon la norme ISO 529 avec queue de 2,8 mm et carré d'entraînement de 2,24 mm, en HSS, finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5242-64NO3
GradeLumineux
Product Number5976387
Product FamilyE524

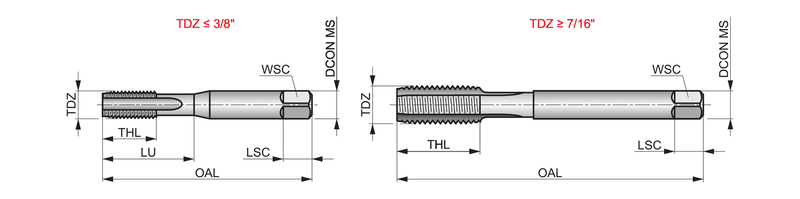

Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)2
Thread Diameter — in (TD)0.086"
Thread Diameter — mm (TD)2.184 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)64.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number97953
EAN7320760097953
File Type Download
E5242-64NO3 — Line Drawing PDF Download
