E5473/4NO3
E5473/4NO3
E5473/4NO3

E5473/4NO3

UGC DOR5976397
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.31 CAD - $108.31 CAD
$108.31 CAD
$108.31 CAD - $108.31 CAD
$108.31 CAD

Vendu en lots de : 1

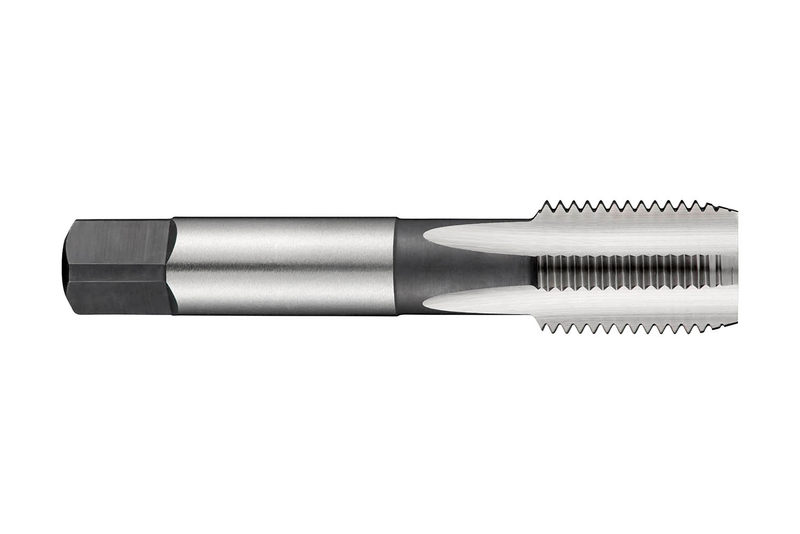

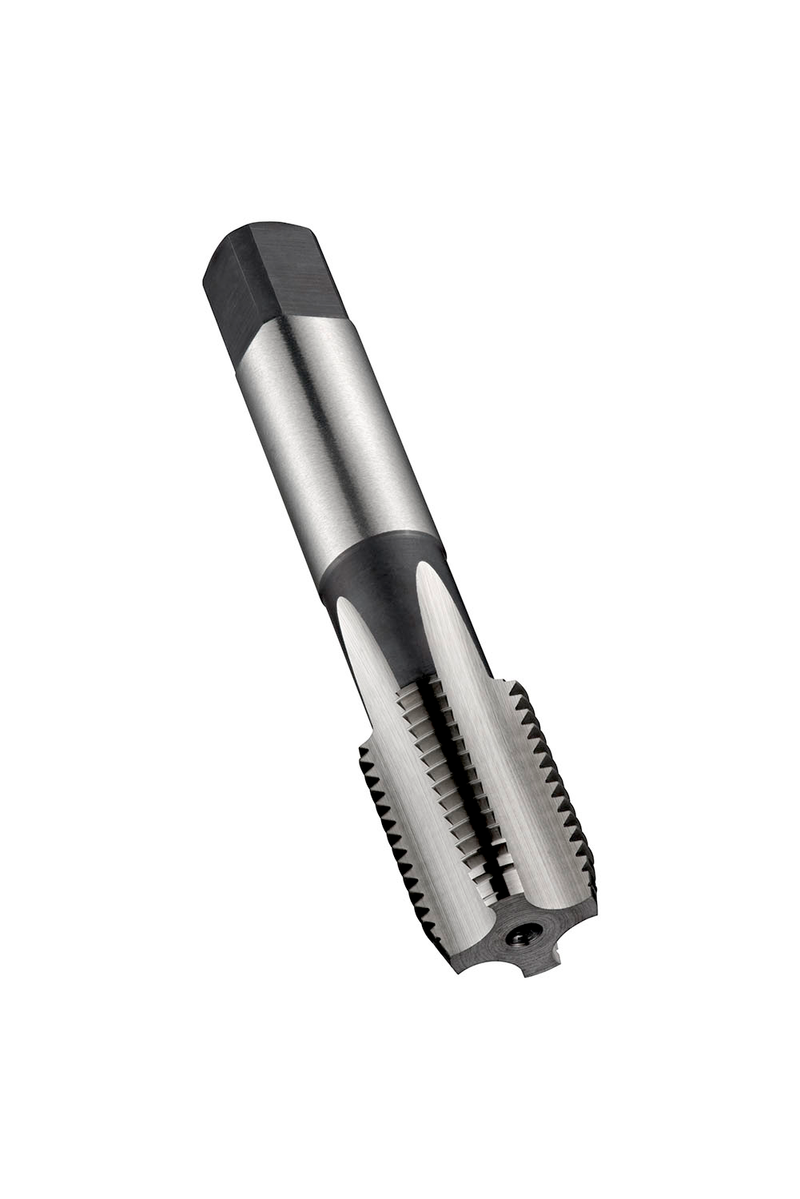

Taraud main à goujures droites NO3 avec entrée conique 2-3xP, pour filetage British Standard Pipe G 3/4" avec 14 filets par pouce et classe de tolérance normale, dimensions selon la norme ISO 2284 avec queue de 20,0mm et carré d'entraînement de 16,0mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5473/4NO3
GradeLumineux
Product Number5976397
Product FamilyE547

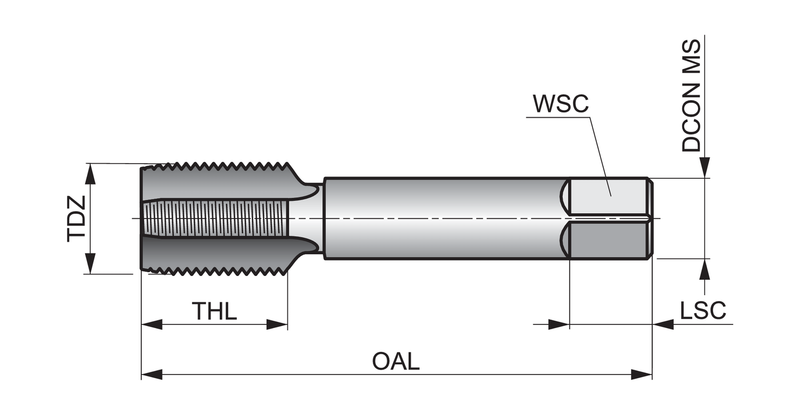

Dimensions
Overall Length — in (OAL)3.7795"
Overall Length — mm (OAL)96.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)1.041"
Thread Diameter — mm (TD)26.441 mm
Thread Form (THFT)G - Fixation de tuyau britannique standard - Série G
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number99308
EAN7320760099308
File Type Download
E5473/4NO3 — Line Drawing PDF Download
