E5243/4NO1
E5243/4NO1
E5243/4NO1

E5243/4NO1

UGC DOR5976398
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.69 CAD - $86.69 CAD
$86.69 CAD
$86.69 CAD - $86.69 CAD
$86.69 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO1 avec entrée conique 6-8 filets, pour filetage UNF (Unified National Fine) 3/4" avec 16 filets par pouce et classe de tolérance 2B, dimensions selon la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5243/4NO1
GradeLumineux
Product Number5976398
Product FamilyE524

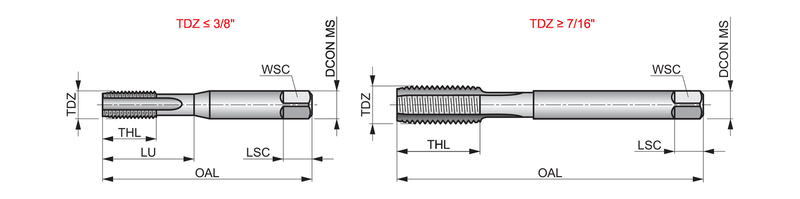

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number153369
EAN7320760153369
File Type Download
E5243/4NO1 — Line Drawing PDF Download
