E5473/8NO2
E5473/8NO2
E5473/8NO2

E5473/8NO2

UGC DOR5976412
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.21 CAD - $70.21 CAD
$70.21 CAD
$70.21 CAD - $70.21 CAD
$70.21 CAD

Vendu en lots de : 1

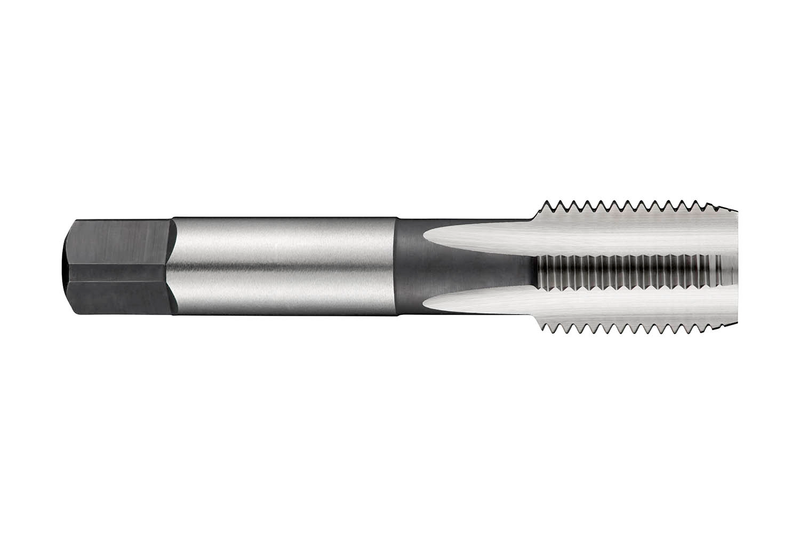

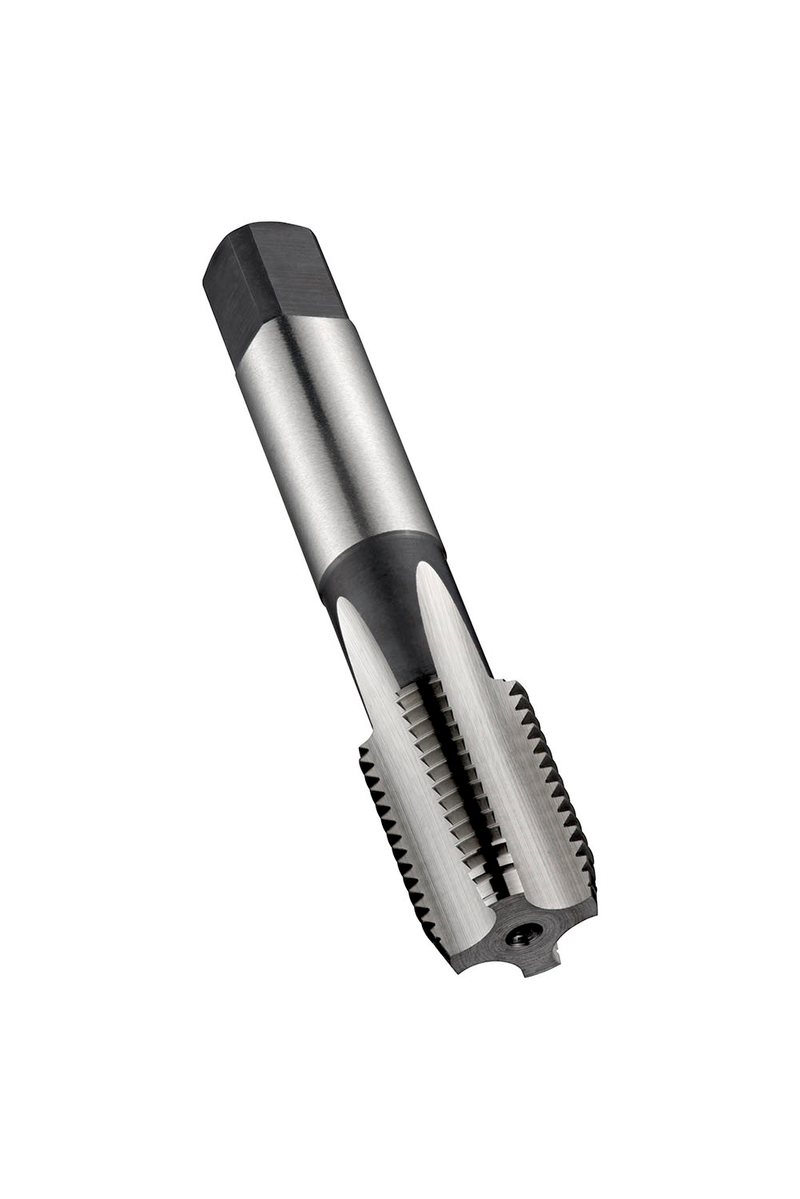

Taraud à main à coupe droite NO2 avec entrée seconde 4-6xP, pour filetage British Standard Pipe G 3/8" avec 19 filets par pouce et classe de tolérance Normale, dimensions selon norme ISO 2284 avec queue de 12,5mm et carré d'entraînement de 10,0mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes de 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5473/8NO2
GradeLumineux
Product Number5976412
Product FamilyE547
Dimensions
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.656"
Thread Diameter — mm (TD)16.662 mm
Thread Form (THFT)G - Fixation de tuyauterie britannique - Série G
Threads per Inch (TPI)19.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number157237
EAN7320760157237
File Type Download

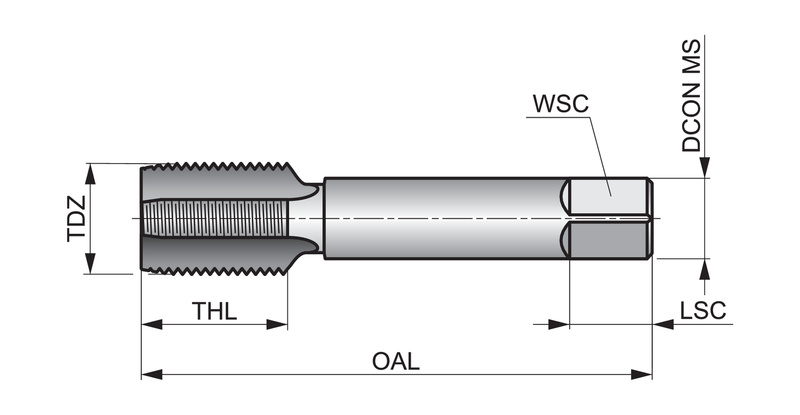

E5473/8NO2 — Line Drawing PDF Download
