E5473/8NO3
E5473/8NO3
E5473/8NO3

E5473/8NO3

UGC DOR5976416
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.21 CAD - $70.21 CAD
$70.21 CAD
$70.21 CAD - $70.21 CAD
$70.21 CAD

Vendu en lots de : 1

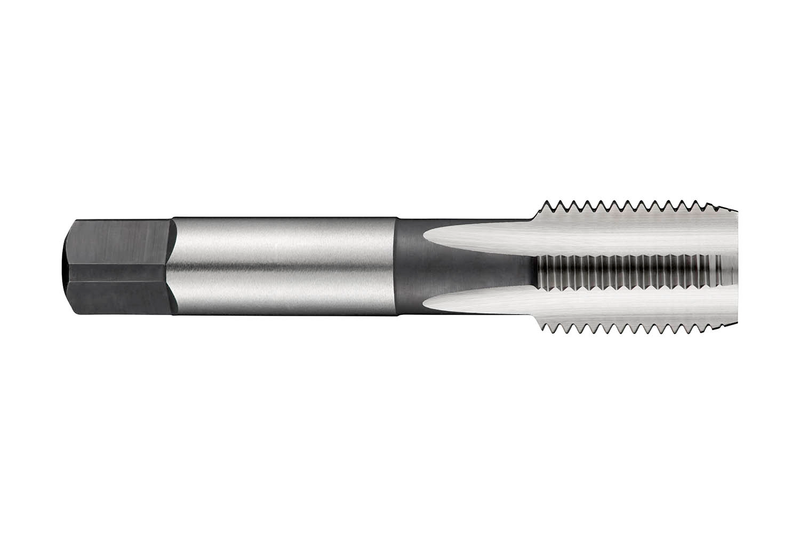

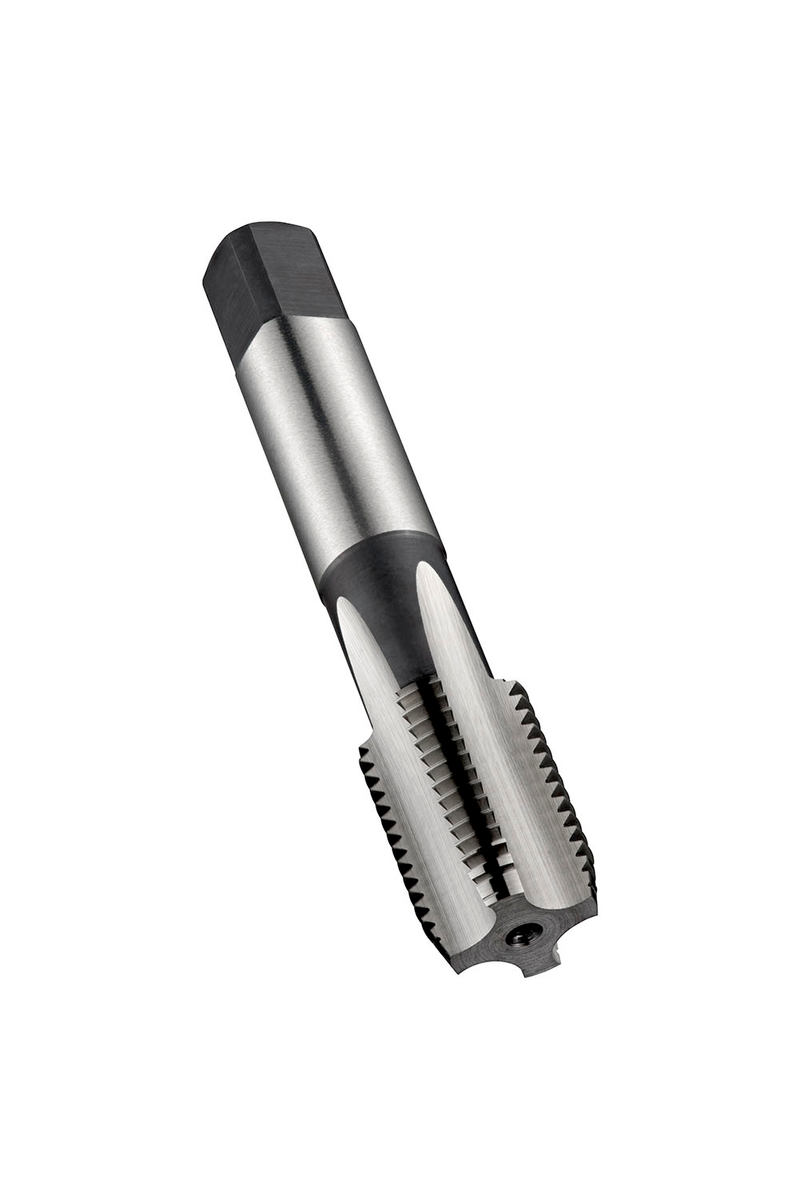

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets) pour filetage BSP (British Standard Pipe) G 3/8" avec 19 filets par pouce et classe de tolérance normale, dimensions conformes à la norme ISO 2284 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5473/8NO3
GradeLumineux
Product Number5976416
Product FamilyE547

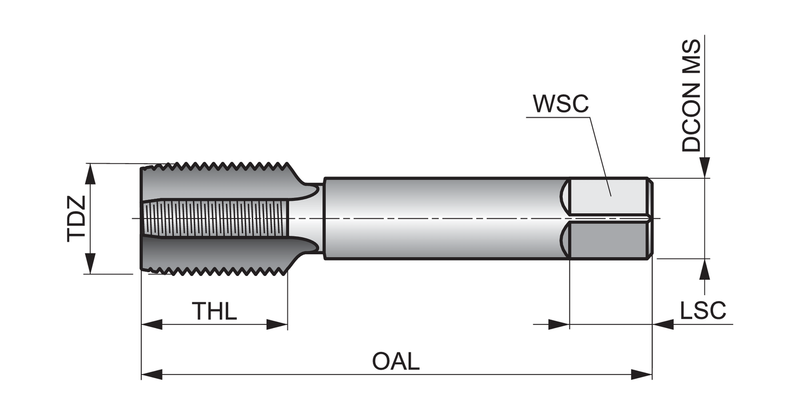

Dimensions
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.656"
Thread Diameter — mm (TD)16.662 mm
Thread Form (THFT)G - Fixation de tuyauterie britannique - Série G
Threads per Inch (TPI)19.0
Tool Information
ShankQueue cylindrique à embase carrée
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number99315
EAN7320760099315
File Type Download
E5473/8NO3 — Line Drawing PDF Download
