E5477/8NO1
E5477/8NO1
E5477/8NO1

E5477/8NO1

UGC DOR5976438
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$247.66 CAD - $247.66 CAD
$247.66 CAD
$247.66 CAD - $247.66 CAD
$247.66 CAD

Vendu en lots de : 1

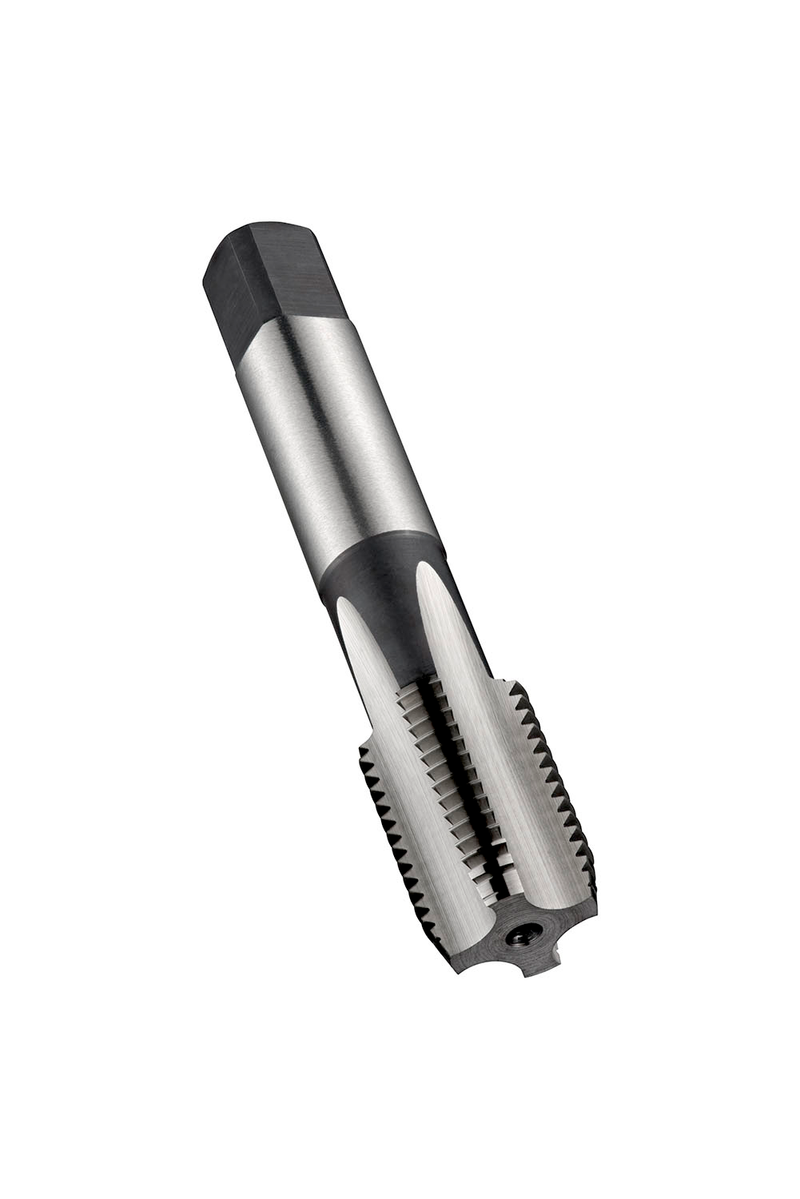

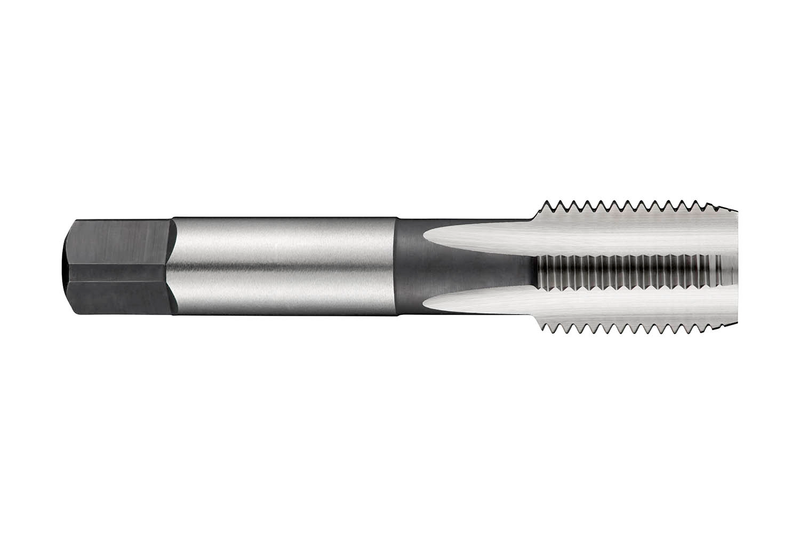

Taraud à main à coupe droite NO1 avec entrée conique 6-8xP, pour filetage British Standard Pipe G 7/8" avec 14 filets par pouce et classe de tolérance normale, dimensions selon la norme ISO 2284 avec queue de 22,4mm et carré d'entraînement de 18,0mm, HSS avec finition brillante pour le filetage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5477/8NO1
GradeLumineux
Product Number5976438
Product FamilyE547
Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8819"
Connection Dia. — mm (DCON)22.4 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)7/8
Thread Diameter — in (TD)1.189"
Thread Diameter — mm (TD)30.201 mm
Thread Form (THFT)G - Fixation de tuyauterie standard britannique - Série G
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number157305
EAN7320760157305
File Type Download

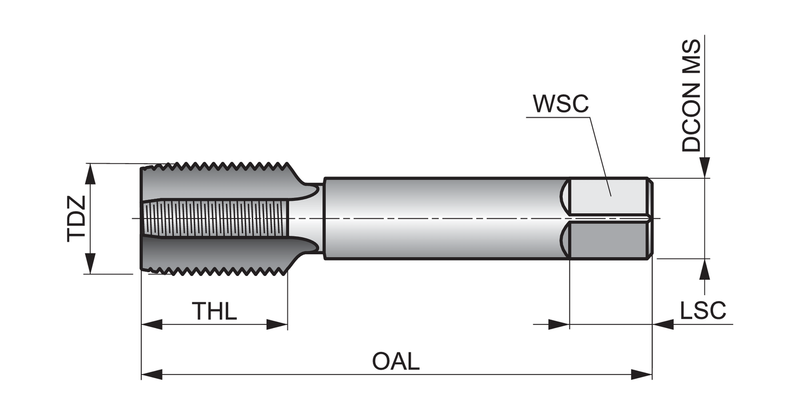

E5477/8NO1 — Line Drawing PDF Download
