E5501/2
E5501/2
E5501/2

E5501/2

UGC DOR5976459
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$122.47 CAD - $122.47 CAD
$122.47 CAD
$122.47 CAD - $122.47 CAD
$122.47 CAD

Vendu en lots de : 1

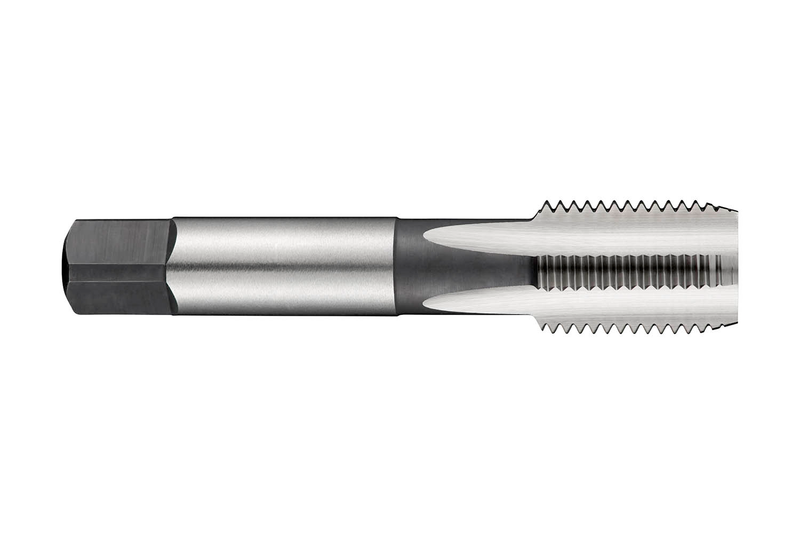

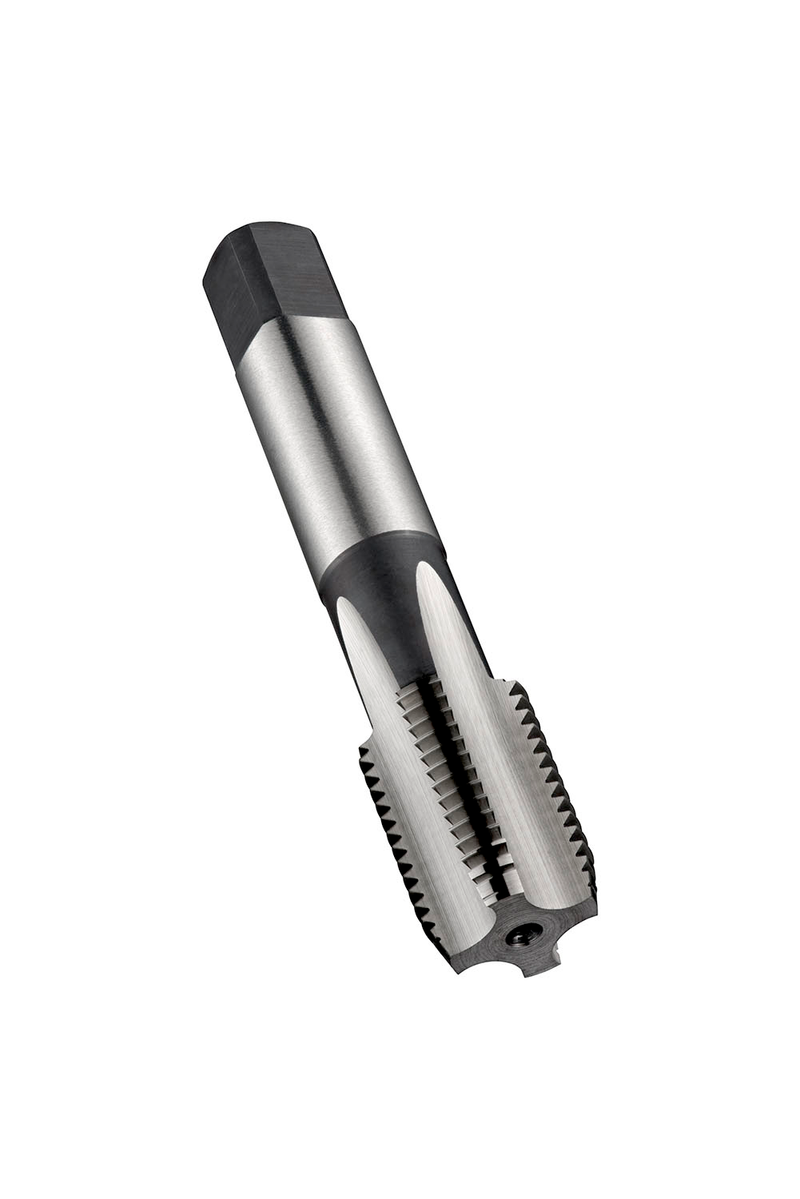

Taraud à main à coupe droite avec une entrée C de 2-3 filets, pour filetage conique gaz BSPT Rc 1/2" à 14 filets par pouce et tolérance normale, dimensions selon norme ISO 2284 avec queue de 16,0 mm et carré d'entraînement de 12,5 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5501/2
GradeLumineux
Product Number5976459
Product FamilyE550

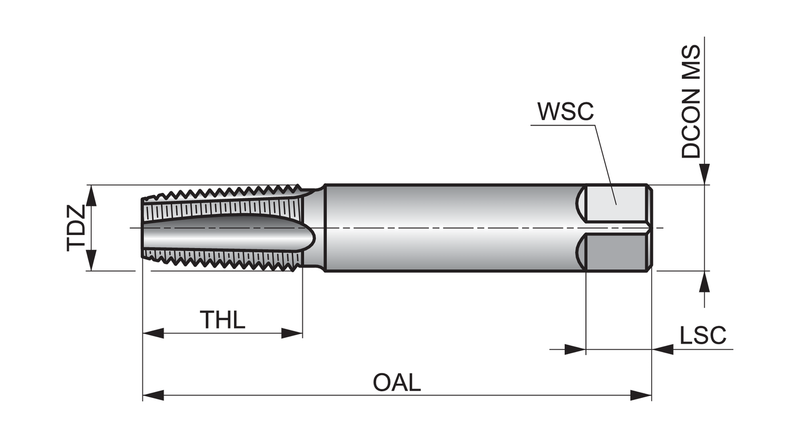

Dimensions
Overall Length — in (OAL)3.4252"
Overall Length — mm (OAL)87.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.825"
Thread Diameter — mm (TD)20.955 mm
Thread Form (THFT)Rc - Filetage conique britannique pour tuyauterie - Série Rc
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number99476
EAN7320760099476
File Type Download
E5501/2 — Line Drawing PDF Download
