E5501/2NON
E5501/2NON
E5501/2NON

E5501/2NON

UGC DOR5976462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.39 CAD - $244.39 CAD
$244.39 CAD
$244.39 CAD - $244.39 CAD
$244.39 CAD

Vendu en lots de : 1

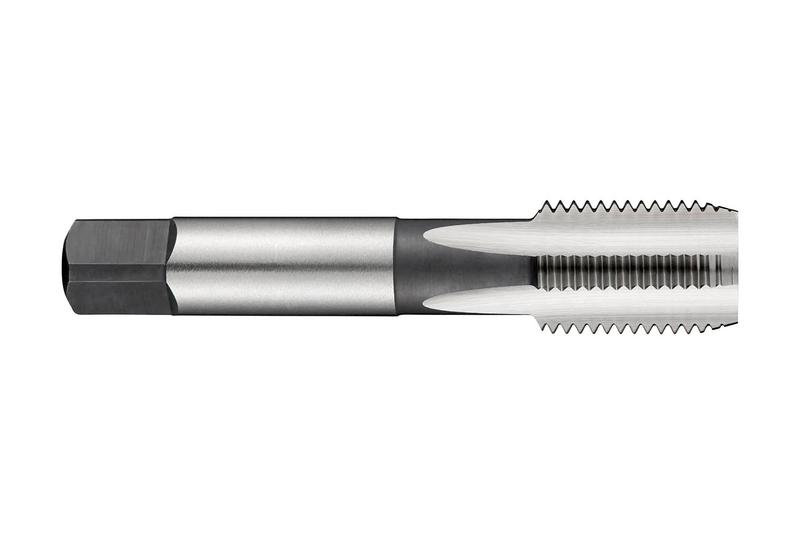

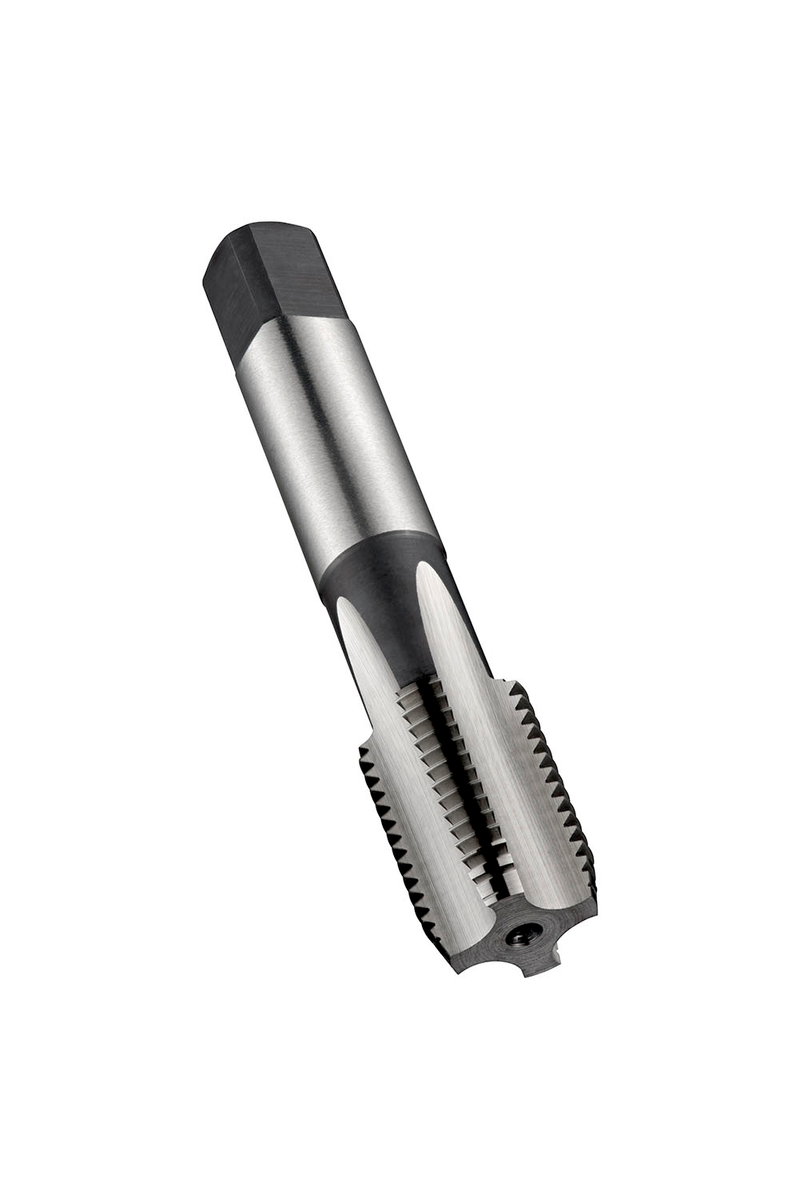

Jeu de tarauds à main à queue droite NO7 pour filetage conique British Standard Pipe Rc 1/2" avec 14 TPI et classe de tolérance normale, comprenant 1 taraud d'amorce 4-6xP et 1 taraud d'amorce 2-3xP, dimensions selon la norme ISO 2284 avec une queue de 16,0 mm et un carré d'entraînement de 12,5 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E5501/2NO7
Product Name (ISO)E5501/2NON7
GradeLumineux
Product Number5976462
Product FamilyE550

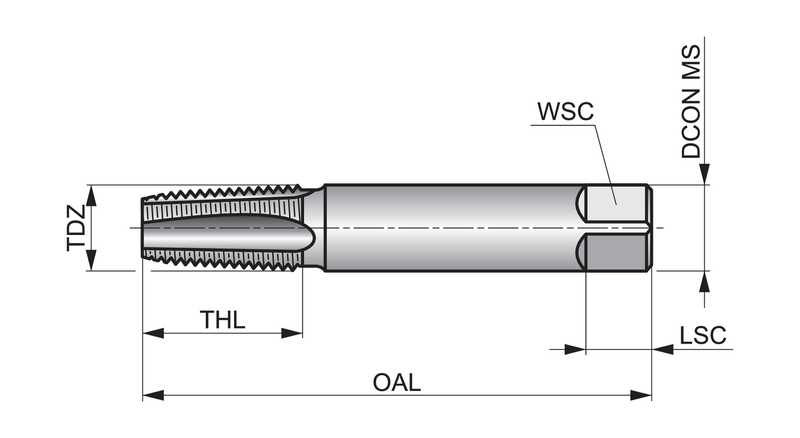

Dimensions
Overall Length — in (OAL)3.4252"
Overall Length — mm (OAL)87.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.825"
Thread Diameter — mm (TD)20.955 mm
Thread Form (THFT)Rc - Filetage conique de tuyau (norme britannique) - Série Rc
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number159460
EAN7320760159460
File Type Download
E5501/2NON — Line Drawing PDF Download
