E5471/2NO3
E5471/2NO3
E5471/2NO3

E5471/2NO3

UGC DOR5976480
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.40 CAD - $66.40 CAD
$66.40 CAD
$66.40 CAD - $66.40 CAD
$66.40 CAD

Vendu en lots de : 1

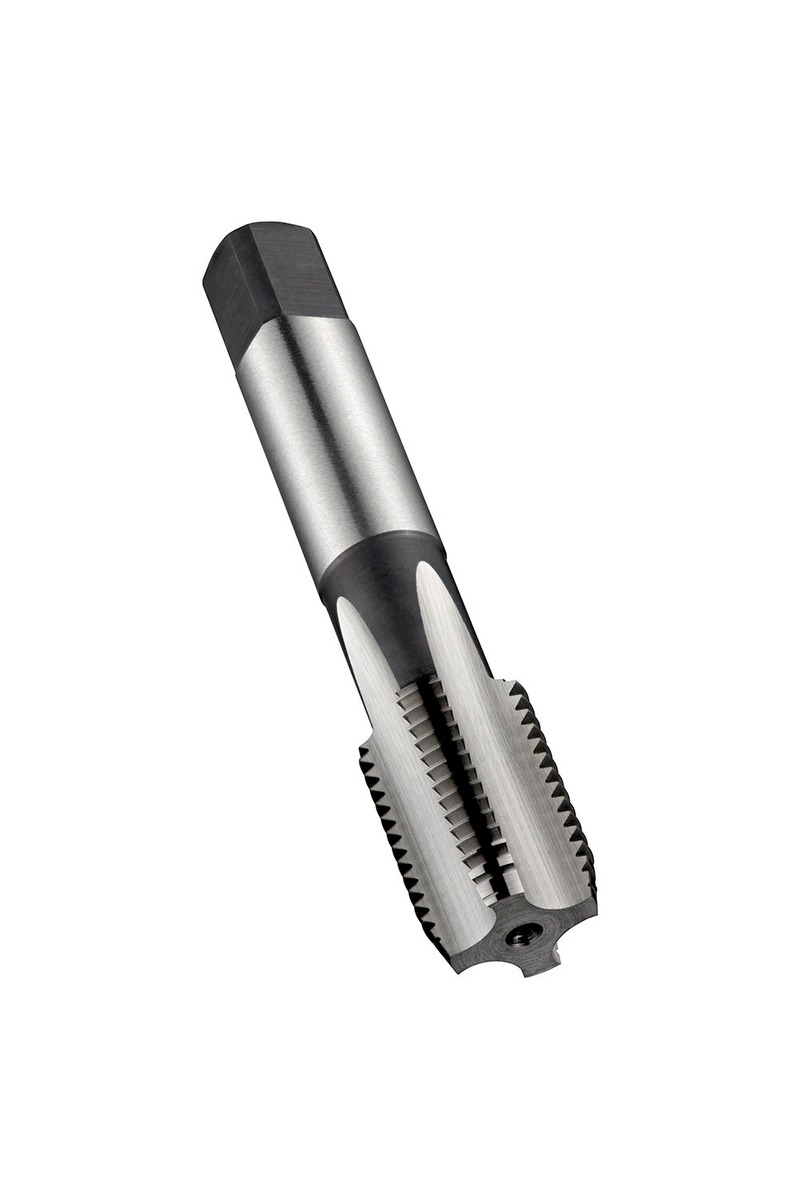

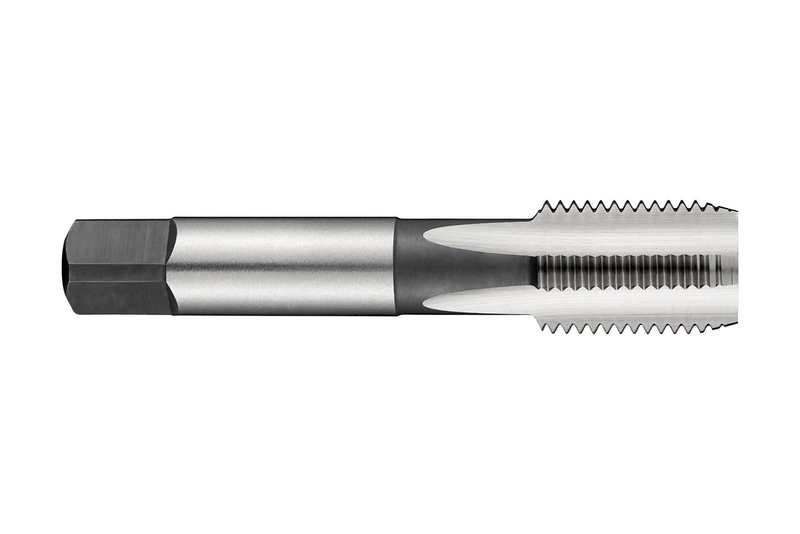

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filet de tuyauterie britannique G 1/2" avec 14 filets par pouce et tolérance normale, dimensions conformes à la norme ISO 2284 avec queue de 16,0 mm et carré d'entraînement de 12,5 mm, en HSS brillant pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5471/2NO3
GradeLumineux
Product Number5976480
Product FamilyE547

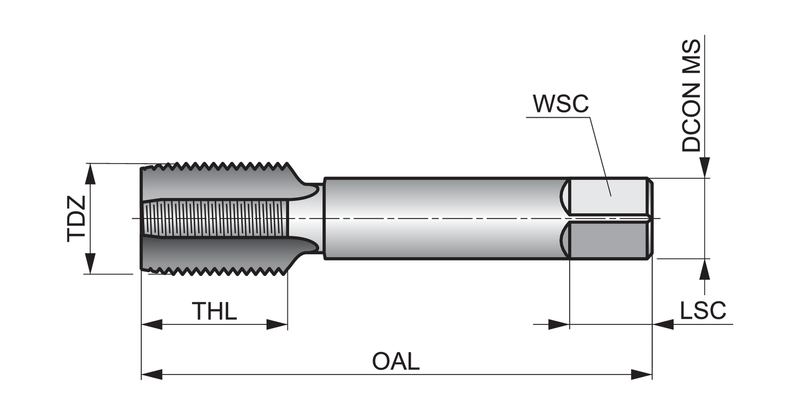

Dimensions
Overall Length — in (OAL)3.4252"
Overall Length — mm (OAL)87.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.825"
Thread Diameter — mm (TD)20.955 mm
Thread Form (THFT)G - Raccord de tuyauterie à filetage BSP - Série G
Threads per Inch (TPI)14.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 2284
Reference Numbers
EDP Number99261
EAN7320760099261
File Type Download
E5471/2NO3 — Line Drawing PDF Download
