E5331/2
E5331/2
E5331/2

E5331/2

UGC DOR5976481
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.41 CAD - $60.41 CAD
$60.41 CAD
$60.41 CAD - $60.41 CAD
$60.41 CAD

Vendu en lots de : 1

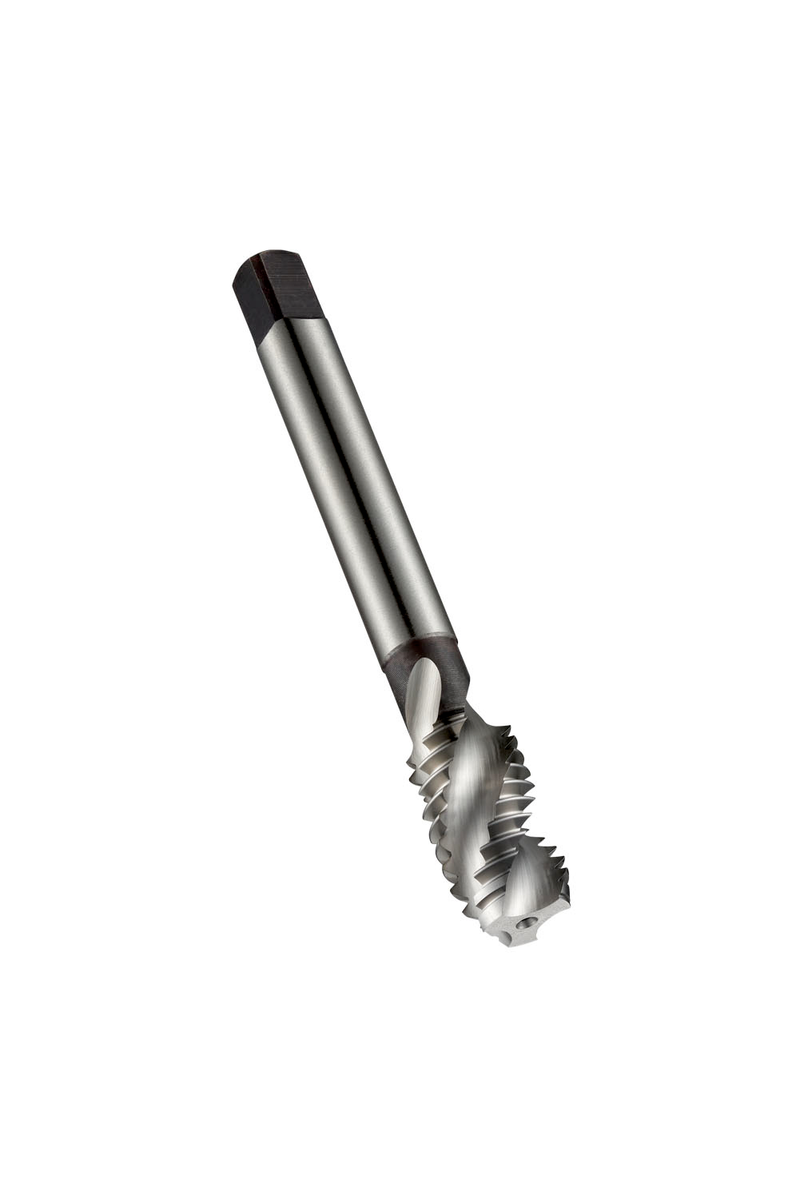

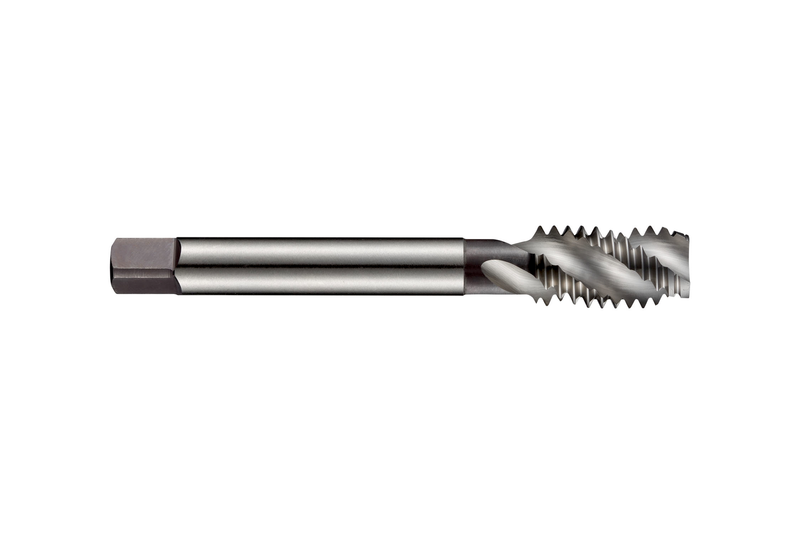

Taraud machine à goujures hélicoïdales, forme C avec entrée 2-3 filets, pour filet Whitworth à pas fin (BSW) 1/2" avec 12 filets par pouce, tolérance moyenne, dimensions selon la norme ISO 529 avec un diamètre de queue de 9,0mm et un carré d'entraînement de 7,1mm, en HSS finition brillante avec revenu vapeur et un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans les aciers à usinage libre et aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5331/2
GradeLumineux/CT
Product Number5976481
Product FamilyE533

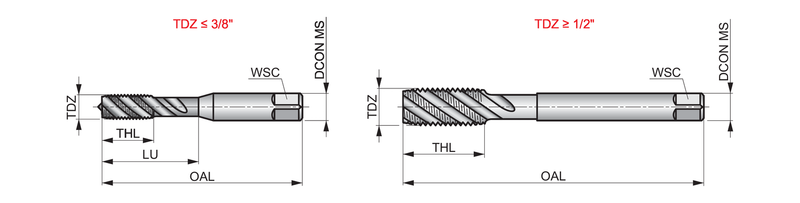

Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number149164
EAN7320760149164
File Type Download
E5331/2 — Line Drawing PDF Download
