E5331/2BLEU
E5331/2BLEU
E5331/2BLEU

E5331/2BLEU

UGC DOR5976483
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.41 CAD - $60.41 CAD
$60.41 CAD
$60.41 CAD - $60.41 CAD
$60.41 CAD

Vendu en lots de : 1

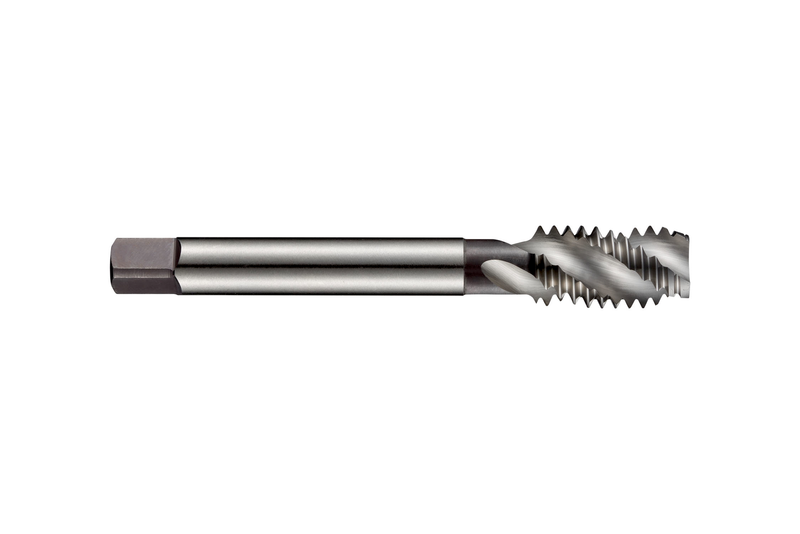

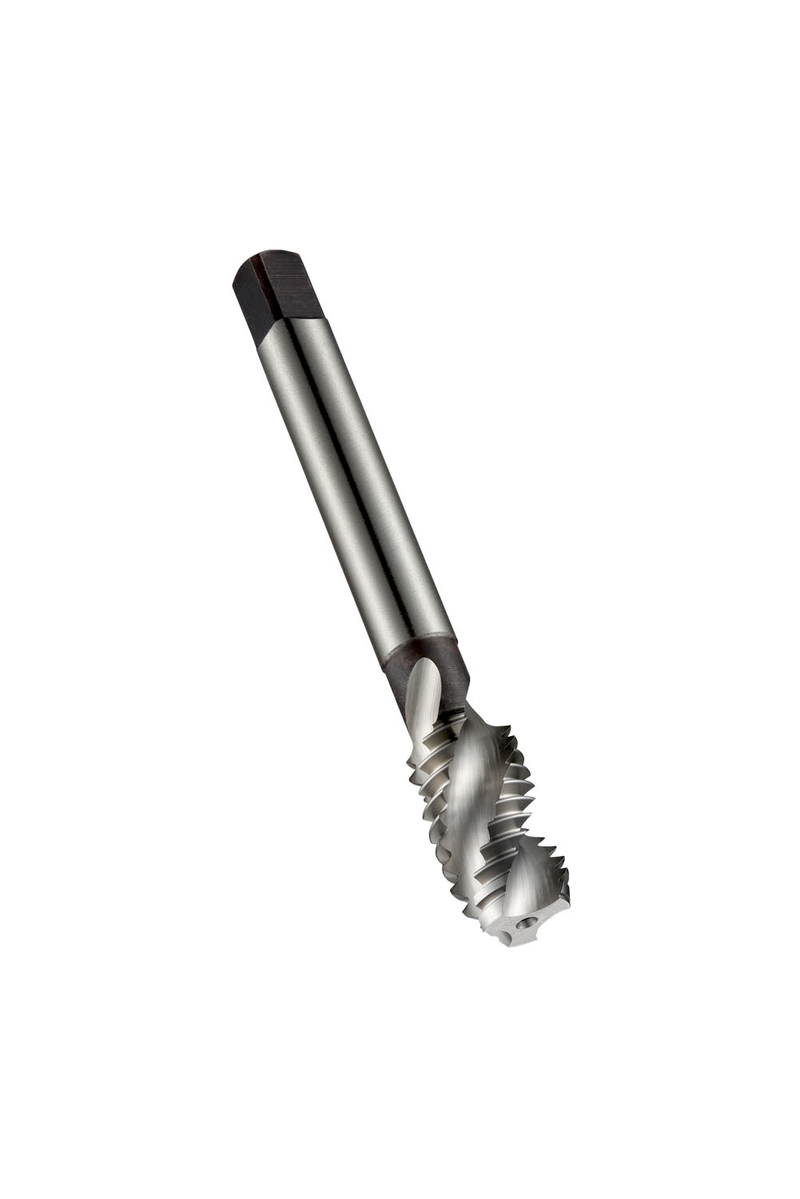

Taraud à gorge spirale, forme d'entrée C avec une entrée progressive de 2-3xP, pour filetage British Standard Whitworth BSW 1/2" avec 12 filets par pouce et classe de tolérance Moyenne, dimensions selon la norme ISO 529 avec queue de 9,0 mm et carré d'entraînement de 7,1 mm, en HSS finition brillante avec revenu à la vapeur et un angle d'hélice de 40° pour le filetage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5331/2BLEU
GradeLumineux/CT
Product Number5976483
Product FamilyE533
Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)12.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201565
EAN7320760201565
File Type Download

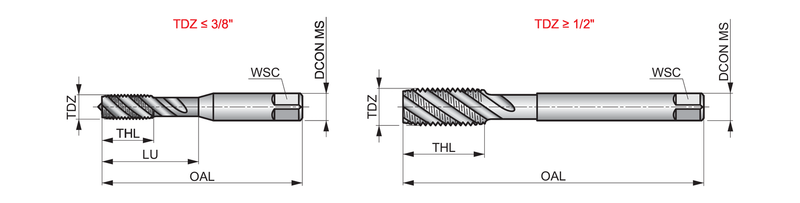

E5331/2BLEU — Line Drawing PDF Download
