E5331/4
E5331/4
E5331/4

E5331/4

UGC DOR5976486
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.71 CAD - $32.71 CAD
$32.71 CAD
$32.71 CAD - $32.71 CAD
$32.71 CAD

Vendu en lots de : 1

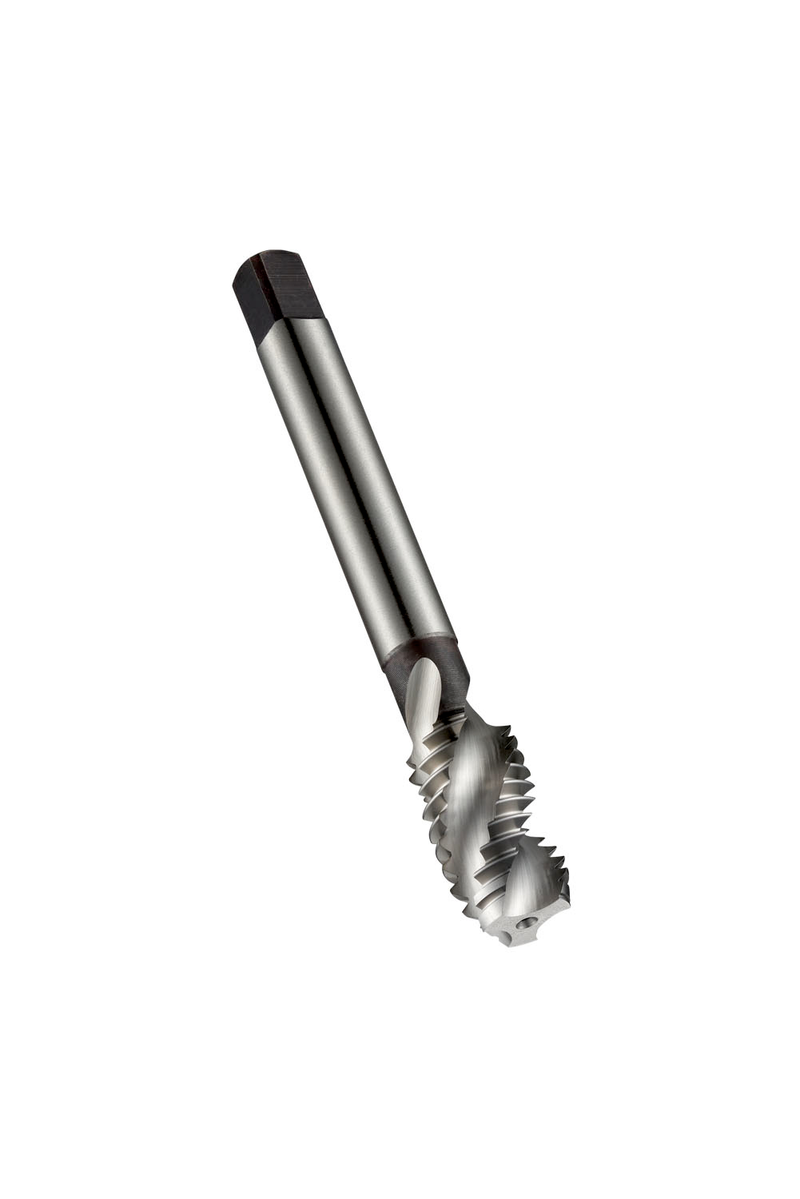

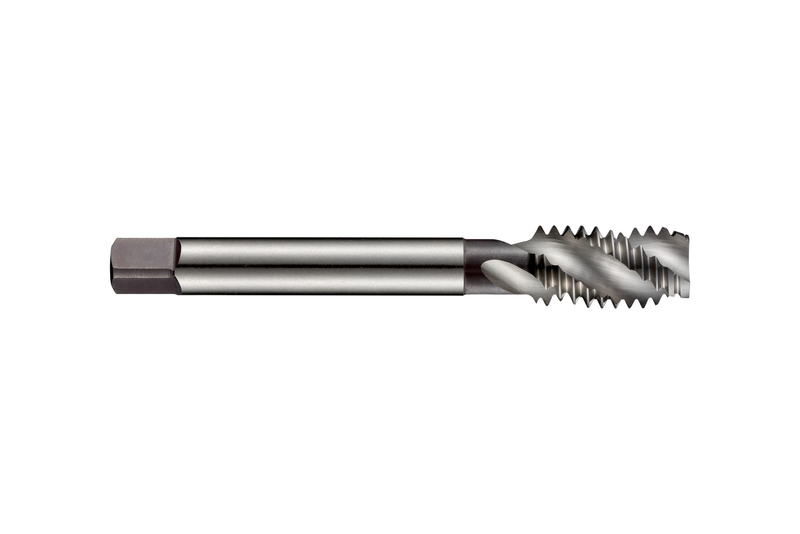

Taraud à gorge spirale, forme C, entrée 2-3xP, pour filet British Standard Whitworth BSW 1/4" avec 20 filets par pouce et tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS finition brillante avec revenu à la vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5331/4
GradeLumineux/ST
Product Number5976486
Product FamilyE533

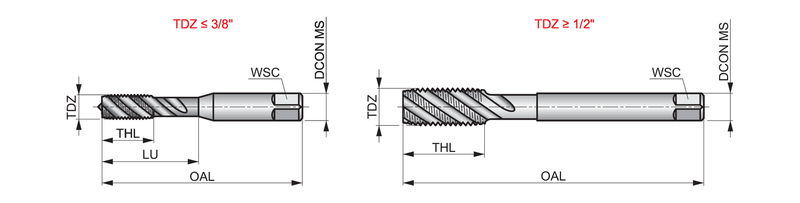

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)BSW - Filetage Whitworth britannique
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201503
EAN7320760201503
File Type Download
E5331/4 — Line Drawing PDF Download
