E5331/4BLEU
E5331/4BLEU
E5331/4BLEU

E5331/4BLEU

UGC DOR5976488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.71 CAD - $32.71 CAD
$32.71 CAD
$32.71 CAD - $32.71 CAD
$32.71 CAD

Vendu en lots de : 1

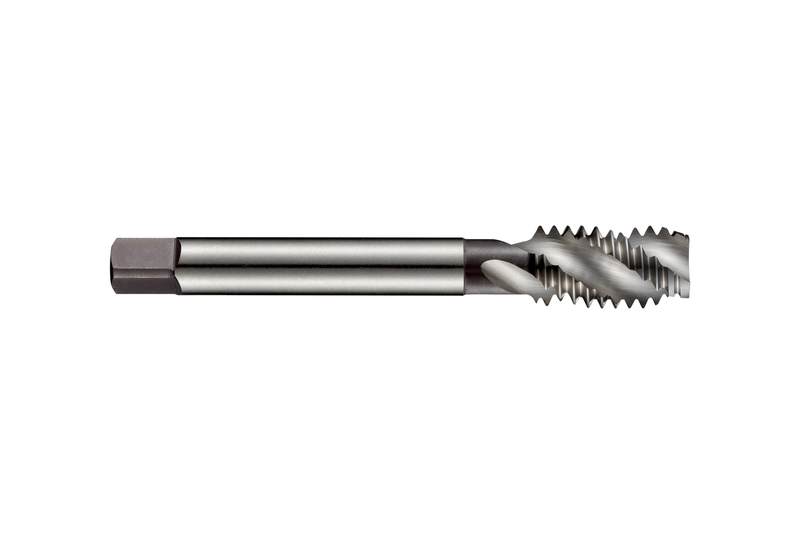

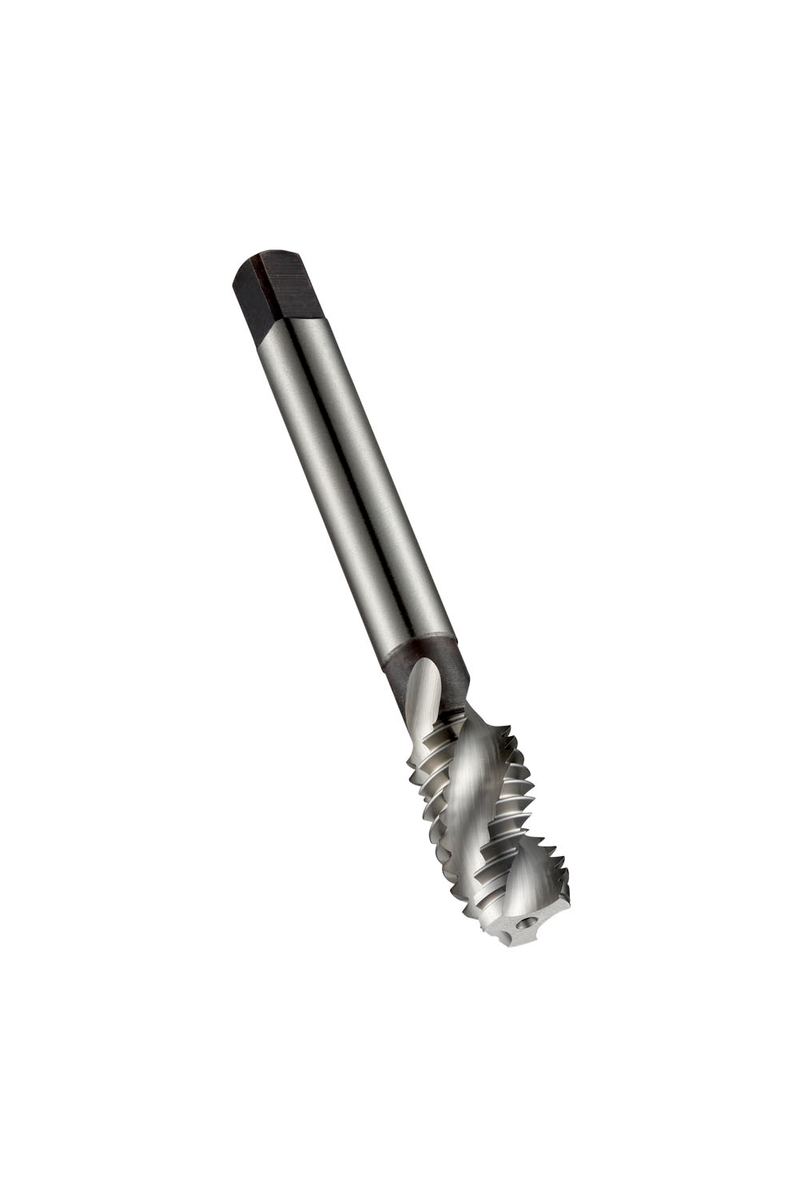

Taraud à gorge spirale forme C avec entrée 2-3xP, pour filet British Standard Whitworth BSW 1/4" avec 20 filets par pouce et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en acier rapide avec finition brillante et revenu à la vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5331/4BLEU
GradeLumineux/CT
Product Number5976488
Product FamilyE533

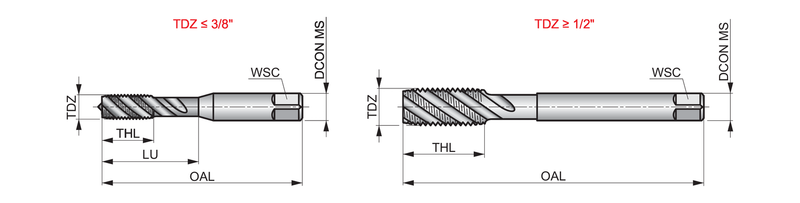

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201510
EAN7320760201510
File Type Download
E5331/4BLEU — Line Drawing PDF Download
