E5331/8
E5331/8
E5331/8

E5331/8

UGC DOR5976489
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.60 CAD - $56.60 CAD
$56.60 CAD
$56.60 CAD - $56.60 CAD
$56.60 CAD

Vendu en lots de : 1

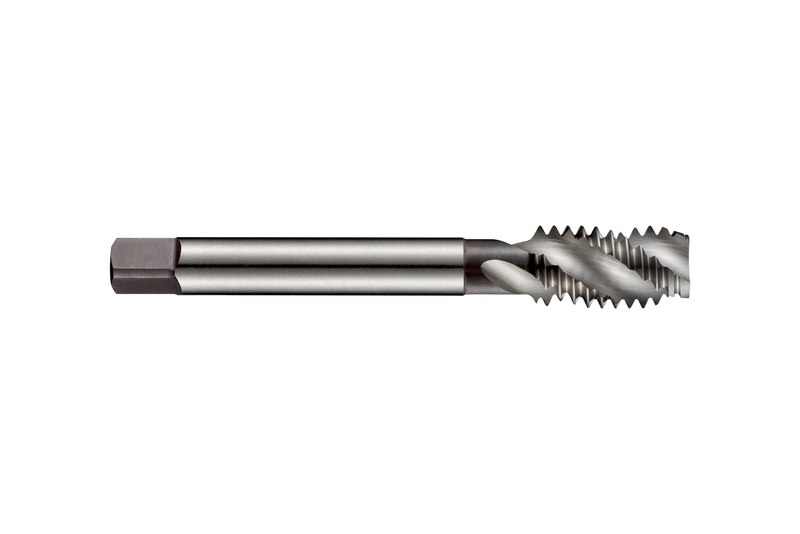

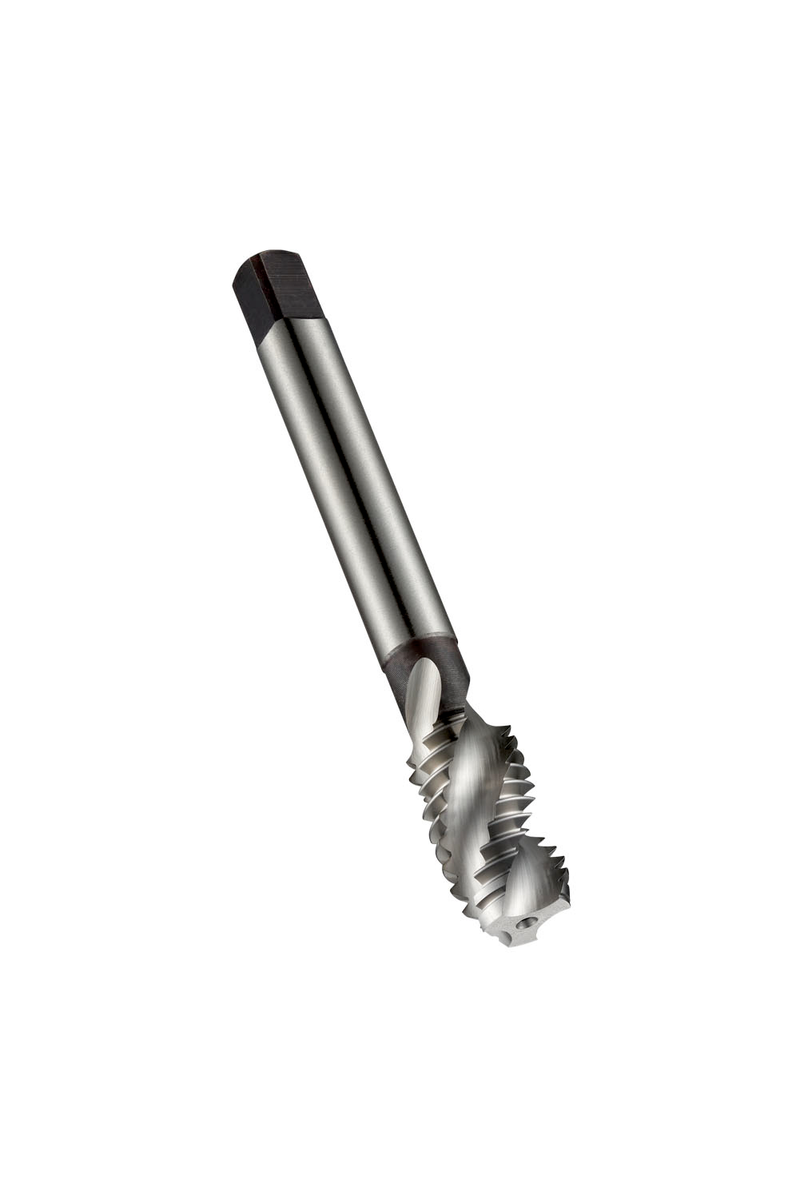

Taraud à coupe à gauche, goujure hélicoïdale, forme C, 2-3 filets d'entrée, pour filetage British Standard Whitworth BSW 1/8" avec 40 filets par pouce et tolérance moyenne, dimensions selon la norme ISO 529, queue de 3,15 mm et carré d'entraînement de 2,5 mm, HSS, finition brillante avec revenu à la vapeur, angle d'hélice de 40° pour le taraudage de trous borgnes 2xD dans l'acier de décolletage et l'acier au carbone non allié

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5331/8
GradeBrillant/ST
Product Number5976489
Product FamilyE533

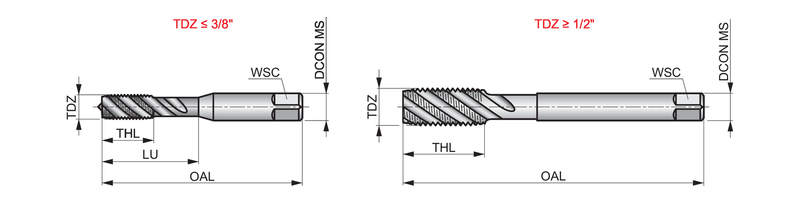

Dimensions
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.4921"
Usable Length — mm (LU)12.5 mm
Connection Dia. — in (DCON)0.124"
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)1/8
Thread Diameter — in (TD)0.125"
Thread Diameter — mm (TD)3.175 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)40.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201459
EAN7320760201459
File Type Download
E5331/8 — Line Drawing PDF Download
