E5333/16
E5333/16
E5333/16

E5333/16

UGC DOR5976492
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.67 CAD - $34.67 CAD
$34.67 CAD
$34.67 CAD - $34.67 CAD
$34.67 CAD

Vendu en lots de : 1

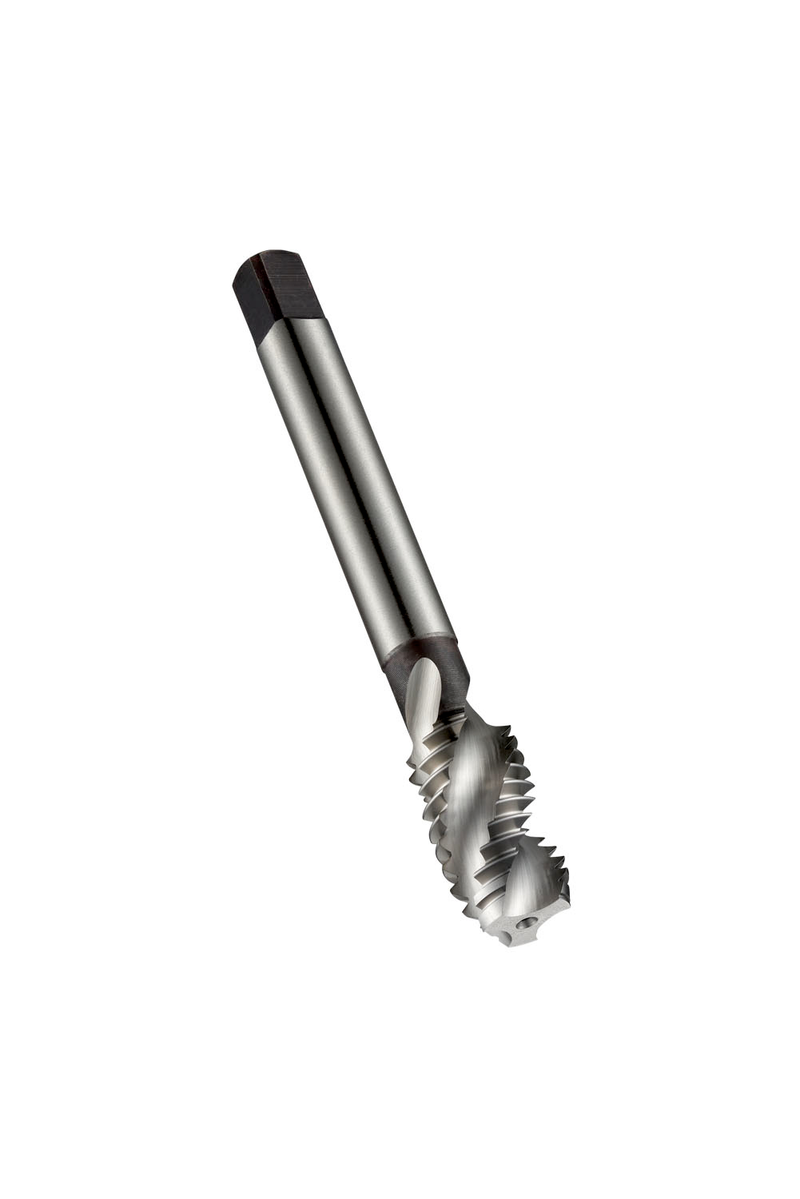

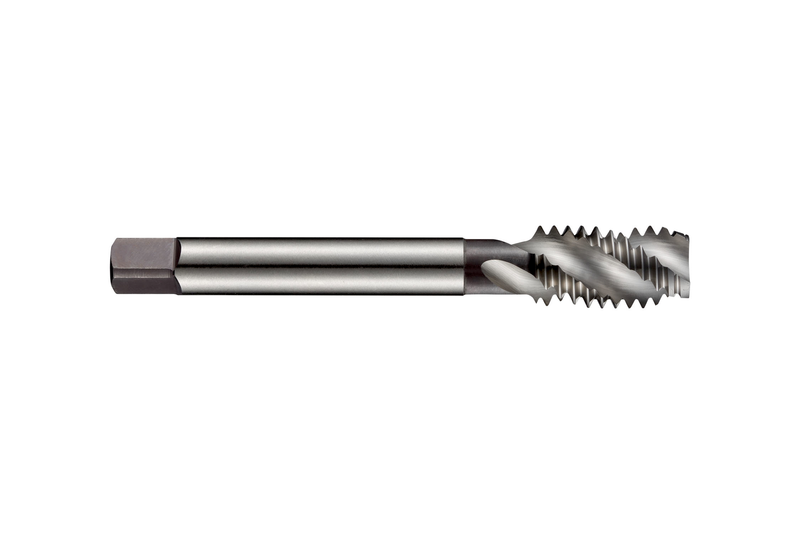

Taraud machine à goujures hélicoïdales et chanfrein forme C avec entrée 2-3xP, pour filet Whitworth à pas fin BSW 3/16" avec 24 filets par pouce et qualité moyenne, dimensions selon la norme ISO 529 avec queue de 5,0mm et carré d'entraînement de 4,0mm, en HSS finition brillante avec bleuissement et angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5333/16
GradeLumineux/ST
Product Number5976492
Product FamilyE533

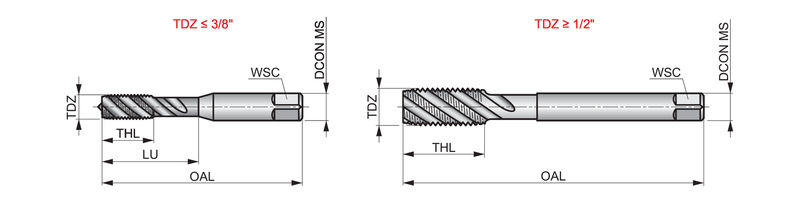

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/16
Thread Diameter — in (TD)0.1875"
Thread Diameter — mm (TD)4.763 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201480
EAN7320760201480
File Type Download
E5333/16 — Line Drawing PDF Download
