E5333/16BLEU
E5333/16BLEU
E5333/16BLEU

E5333/16BLEU

UGC DOR5976495
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.67 CAD - $34.67 CAD
$34.67 CAD
$34.67 CAD - $34.67 CAD
$34.67 CAD

Vendu en lots de : 1

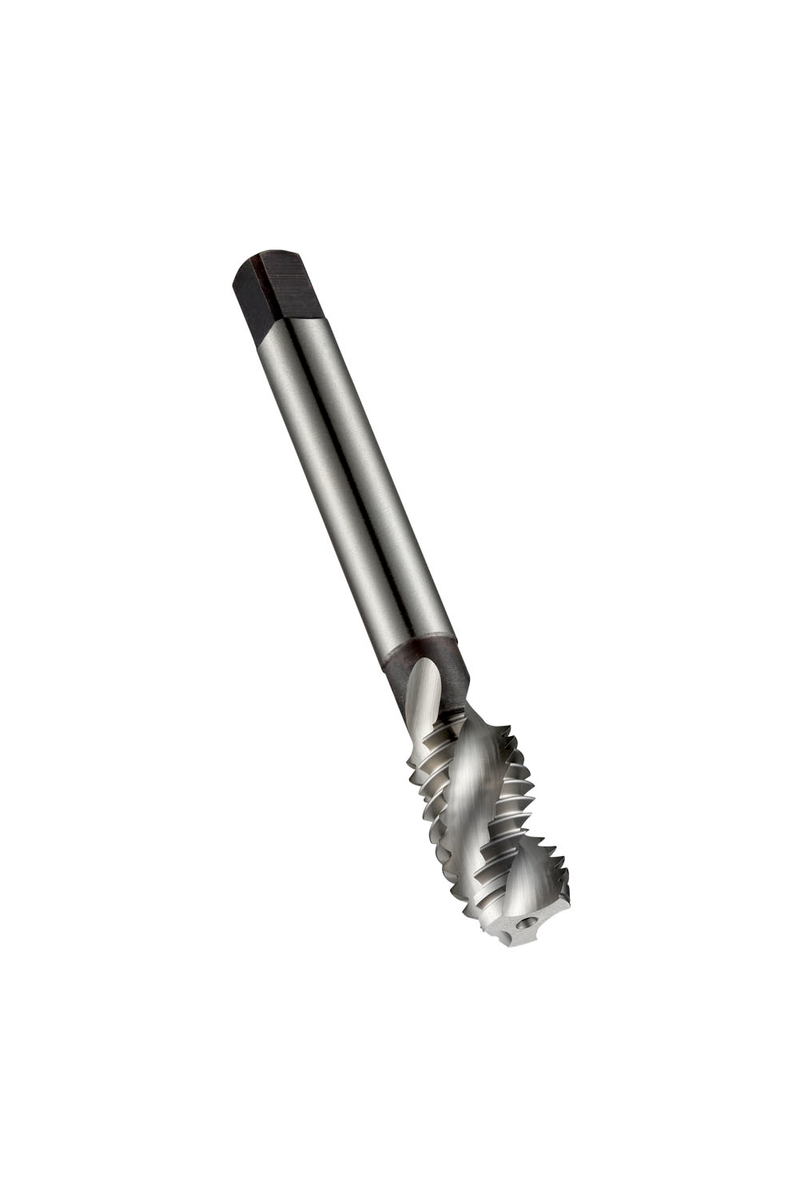

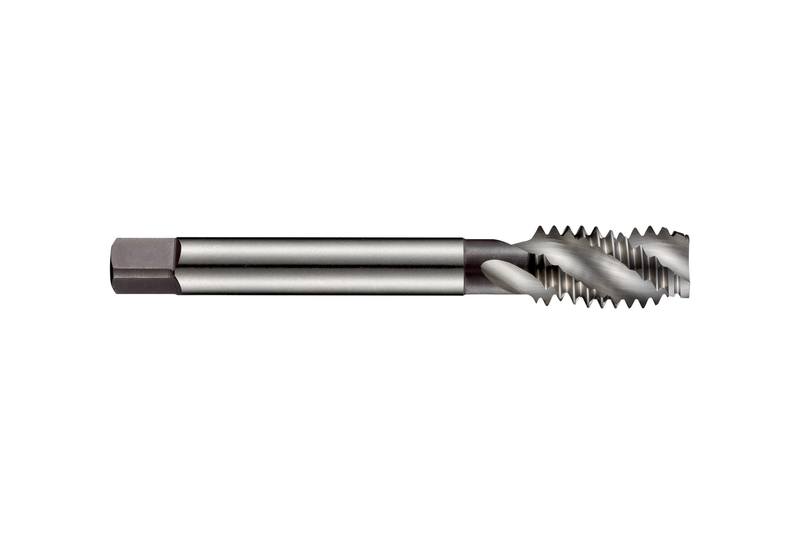

Taraud machine à goujure hélicoïdale avec chanfrein forme C 2-3xP, pour filetage British Standard Whitworth BSW 3/16" avec 24 filets par pouce et une classe de tolérance moyenne, dimensions selon la norme ISO 529 avec un diamètre de queue de 5.0mm et carré d'entraînement de 4.0mm, HSS avec finition brillante trempée à la vapeur et un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5333/16BLEU
GradeLumineux/ST
Product Number5976495
Product FamilyE533

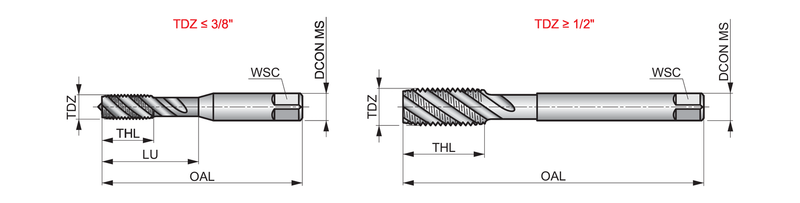

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/16
Thread Diameter — in (TD)0.1875"
Thread Diameter — mm (TD)4.763 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)24.0
Tool Information
ShankTige cylindrique à embase carrée
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201497
EAN7320760201497
File Type Download
E5333/16BLEU — Line Drawing PDF Download
