E5333/4
E5333/4
E5333/4

E5333/4

UGC DOR5976497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.80 CAD - $132.80 CAD
$132.80 CAD
$132.80 CAD - $132.80 CAD
$132.80 CAD

Vendu en lots de : 1

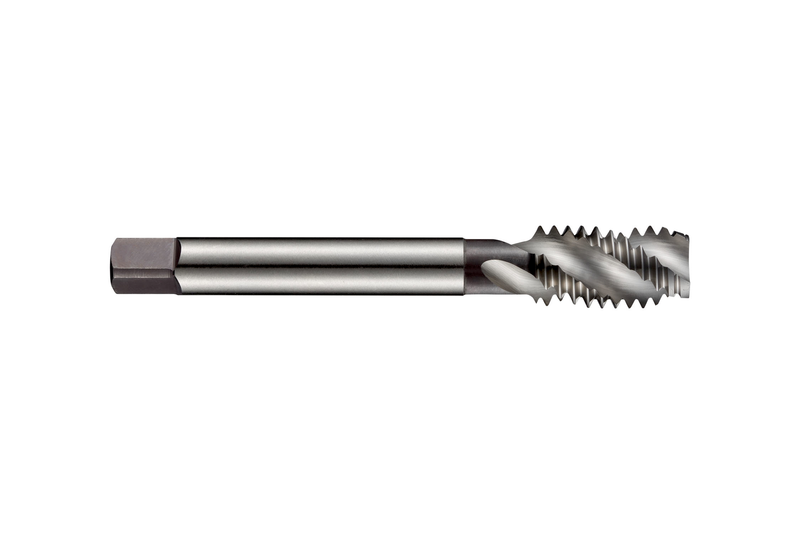

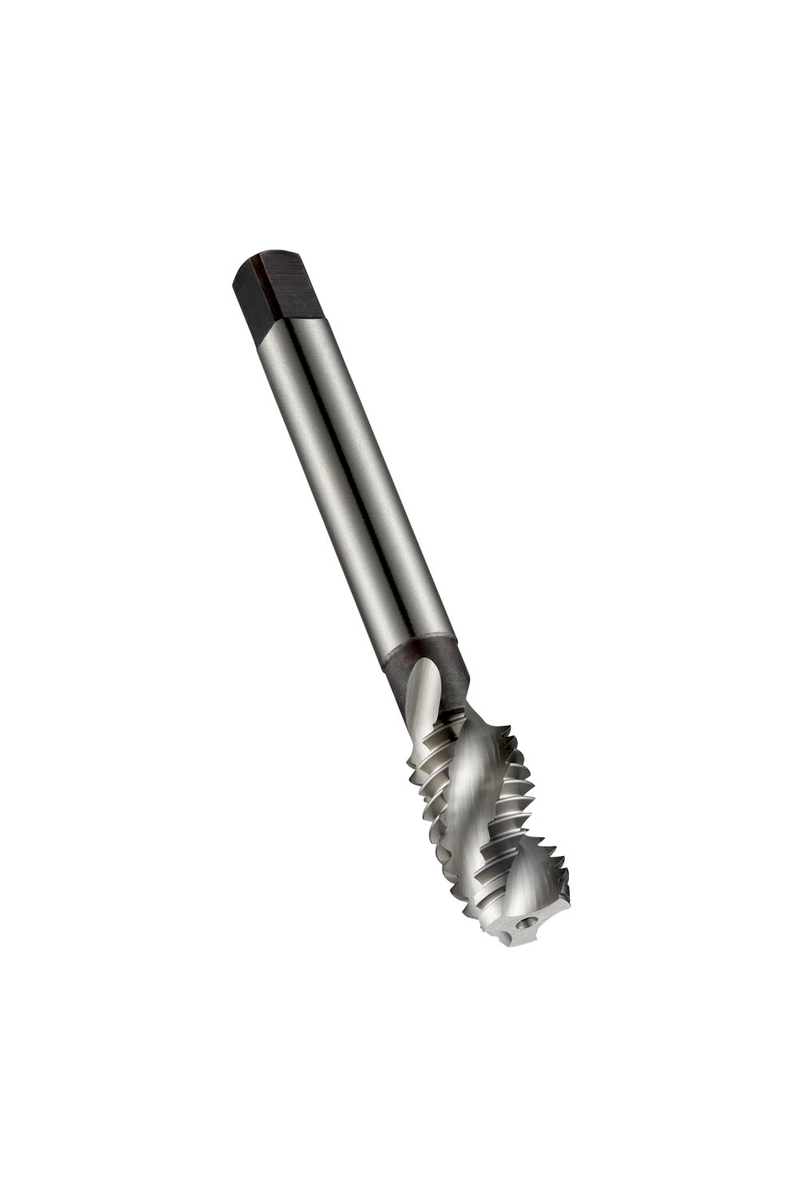

Taraud à coupe spirale avec entrée C (2-3 filets) pour filetage British Standard Whitworth BSW 3/4" avec 10 filets par pouce et classe de tolérance moyenne, dimensions conformes à la norme ISO 529 avec queue de 14,0 mm et carré d'entraînement de 11,2 mm, HSS avec finition brillante et trempe à la vapeur et un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5333/4
GradeLumineux/ST
Product Number5976497
Product FamilyE533

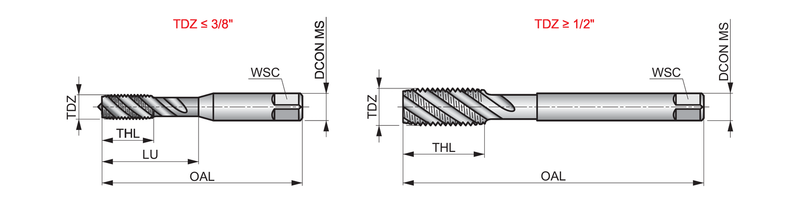

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)BSW - Whitworth standard britannique
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number149171
EAN7320760149171
File Type Download
E5333/4 — Line Drawing PDF Download
