E5333/4BLEU
E5333/4BLEU
E5333/4BLEU

E5333/4BLEU

UGC DOR5976501
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$132.80 CAD - $132.80 CAD
$132.80 CAD
$132.80 CAD - $132.80 CAD
$132.80 CAD

Vendu en lots de : 1

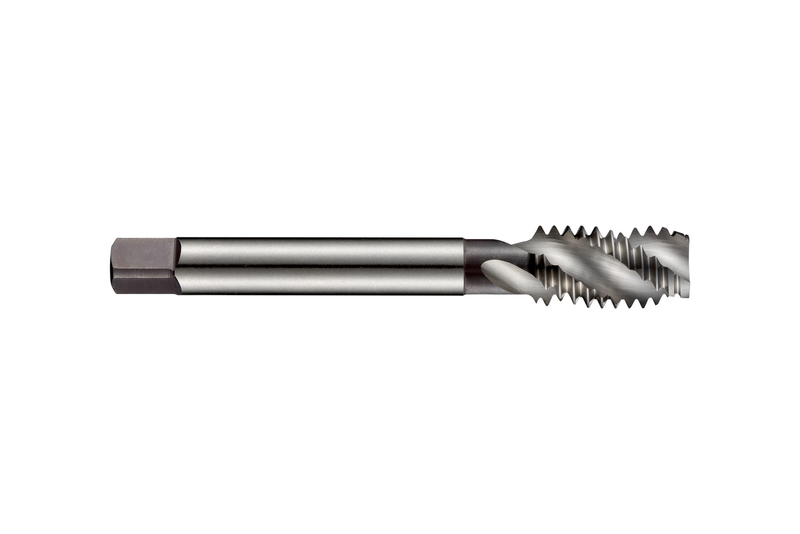

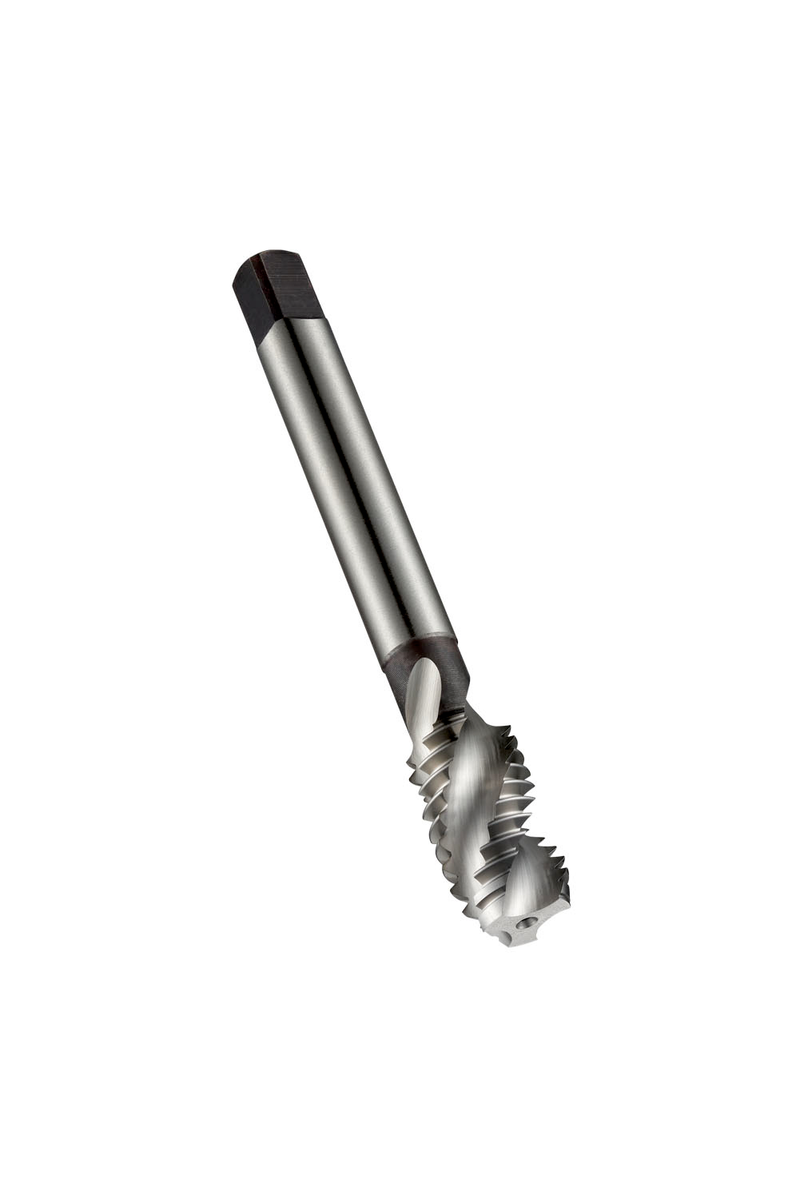

Taraud machine à goujures hélicoïdales avec entrée C (2-3 filets), pour filetage British Standard Whitworth BSW 3/4" avec 10 filets par pouce et classe de tolérance moyenne, dimensions selon norme ISO 529 avec queue de 14,0mm et carré d'entraînement de 11,2mm, HSS avec finition brillante avec revenu à la vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5333/4BLEU
GradeLumineux/ST
Product Number5976501
Product FamilyE533

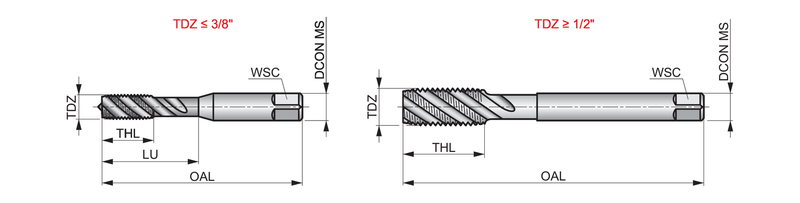

Dimensions
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201596
EAN7320760201596
File Type Download
E5333/4BLEU — Line Drawing PDF Download
