E5365/16NOV3
E5365/16NOV3
E5365/16NOV3

E5365/16NOV3

UGC DOR5976503
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.77 CAD - $20.77 CAD
$20.77 CAD
$20.77 CAD - $20.77 CAD
$20.77 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée conique 2-3xP, pour filetage BSF 5/16" à pas fin (BSF) avec 22 filets par pouce et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 8,0mm et carré d'entraînement de 6,3mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5365/16NO3
GradeLumineux
Product Number5976503
Product FamilyE536

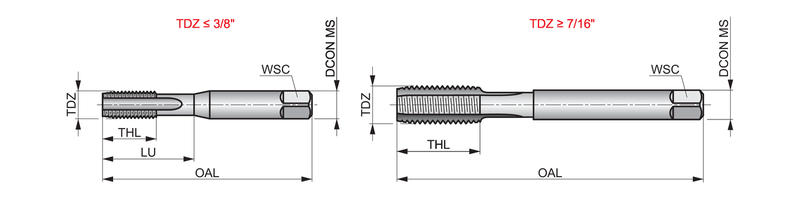

Dimensions
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.1417"
Usable Length — mm (LU)29.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3126"
Thread Diameter — mm (TD)7.94 mm
Thread Form (THFT)BSF - British Standard Fine
Threads per Inch (TPI)22.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number99018
EAN7320760099018
File Type Download
E5365/16NOV3 — Line Drawing PDF Download
