E5333/8BLEU
E5333/8BLEU
E5333/8BLEU

E5333/8BLEU

UGC DOR5976510
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.10 CAD - $46.10 CAD
$46.10 CAD
$46.10 CAD - $46.10 CAD
$46.10 CAD

Vendu en lots de : 1

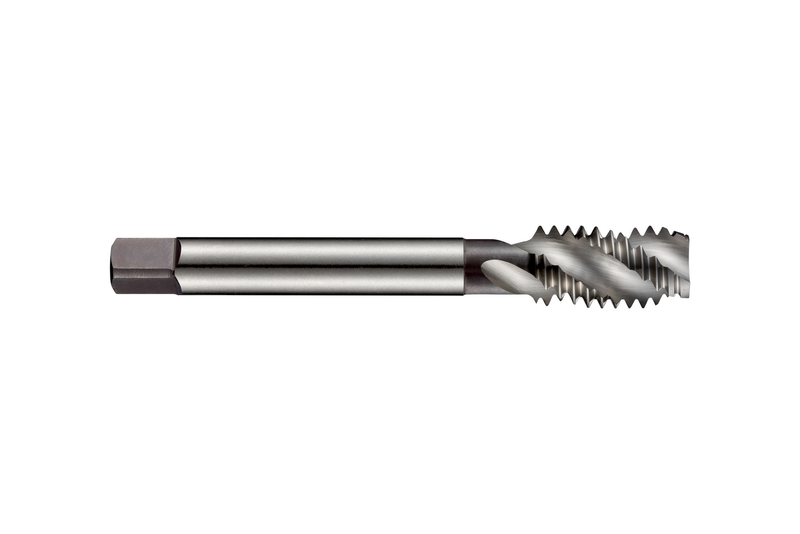

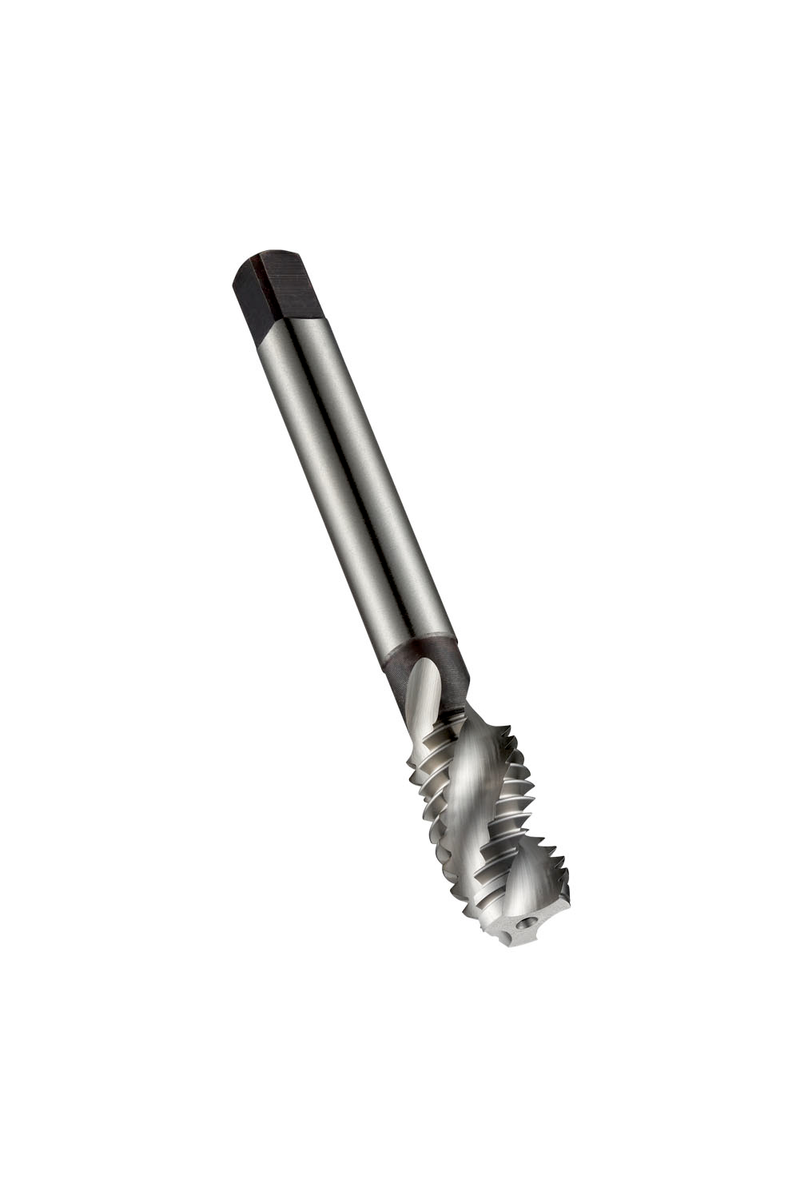

Taraud machine à goujures hélicoïdales et chanfrein forme C de 2-3 filets, pour filetage British Standard Whitworth BSW 3/8" avec 16 TPI et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 10,0mm et carré d'entraînement de 8,0mm, en HSS finition brillante avec revenu vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI)E5333/8BLUE
Product Name (ISO)E5333/8BLEU
GradeLumineux/CT
Product Number5976510
Product FamilyE533

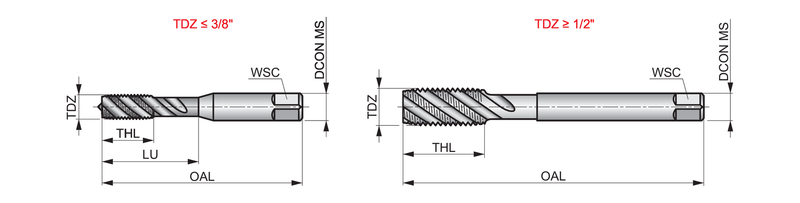

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.3386"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)BSW - Whitworth britannique normalisé
Threads per Inch (TPI)16.0
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201541
EAN7320760201541
File Type Download
E5333/8BLEU — Line Drawing PDF Download
