E5335/16BLEU
E5335/16BLEU
E5335/16BLEU

E5335/16BLEU

UGC DOR5976518
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 1

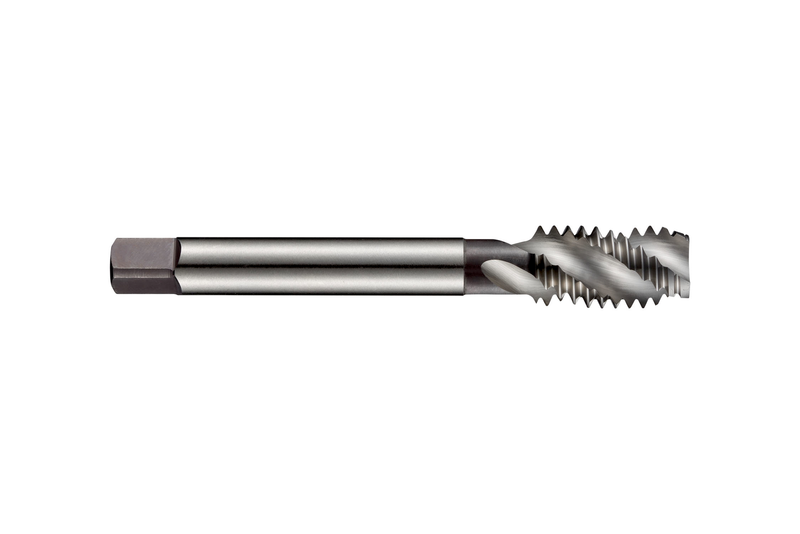

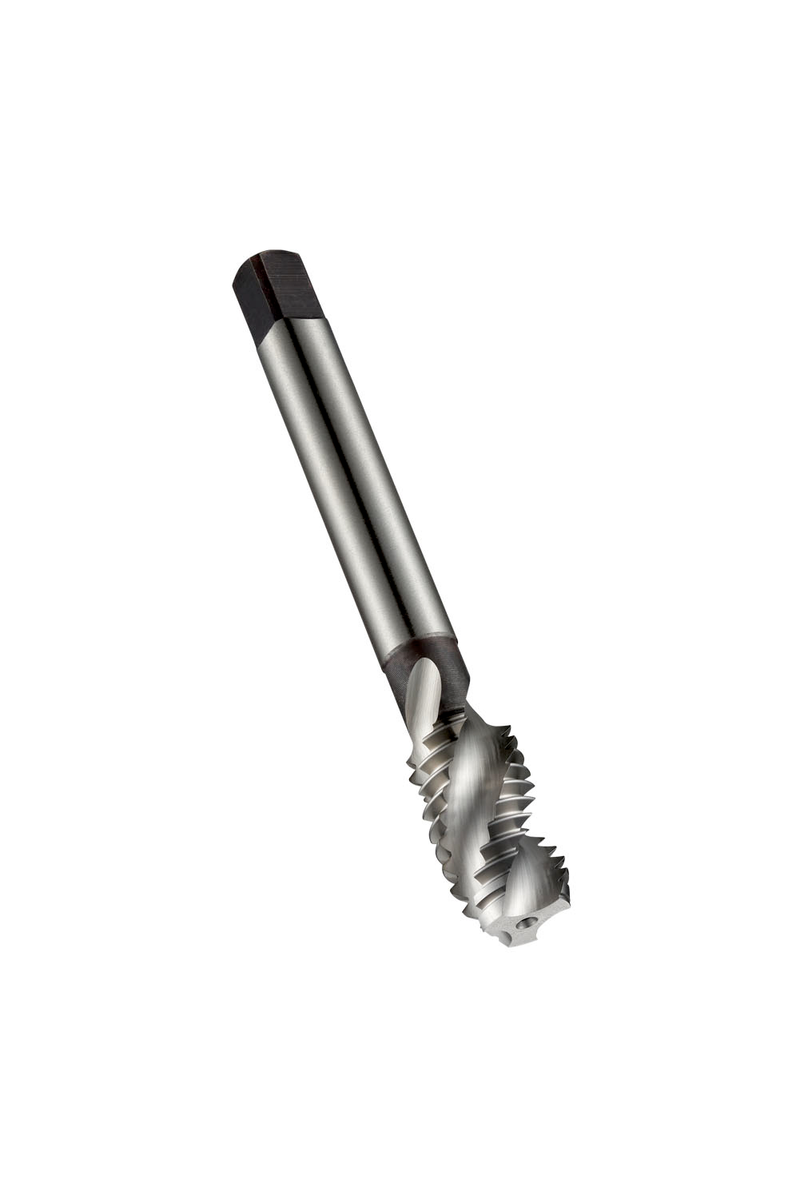

Taraud à gorge spirale, forme C avec une entrée de 2-3xP, pour filet British Standard Whitworth BSW 5/16" avec 18 TPI et classe de tolérance moyenne, dimensions selon la norme ISO 529 avec un diamètre de queue de 8,0 mm et un carré d'entraînement de 6,3 mm, en HSS, finition brillante avec trempe vapeur et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5335/16BLEU
GradeLumineux/ST
Product Number5976518
Product FamilyE533

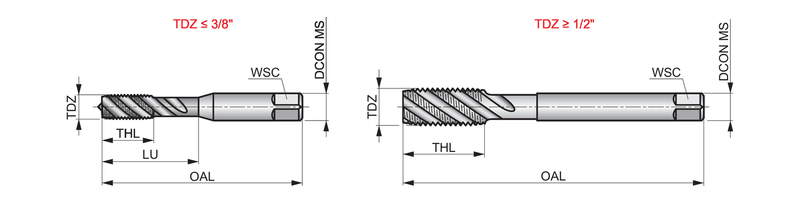

Dimensions
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.2205"
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)BSW - British Standard Whitworth
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201534
EAN7320760201534
File Type Download
E5335/16BLEU — Line Drawing PDF Download
