E5335/8
E5335/8
E5335/8

E5335/8

UGC DOR5976521
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.99 CAD - $91.99 CAD
$91.99 CAD
$91.99 CAD - $91.99 CAD
$91.99 CAD

Vendu en lots de : 1

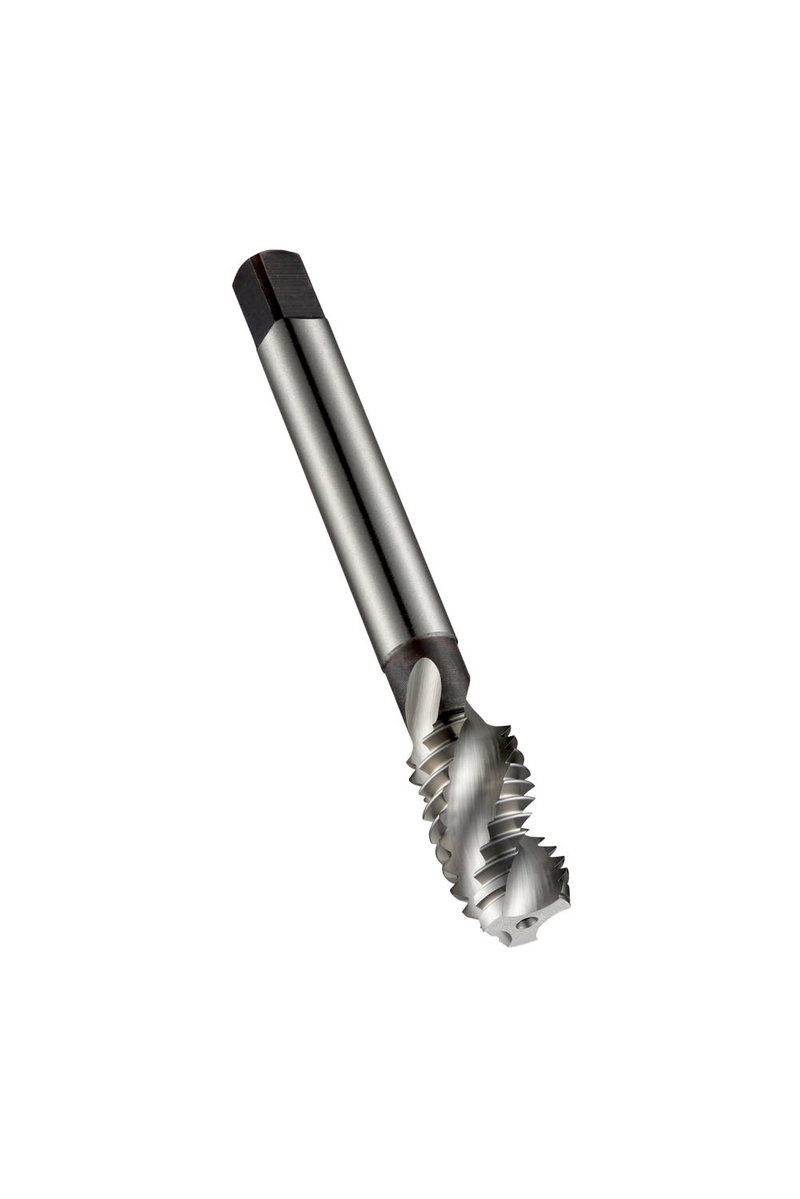

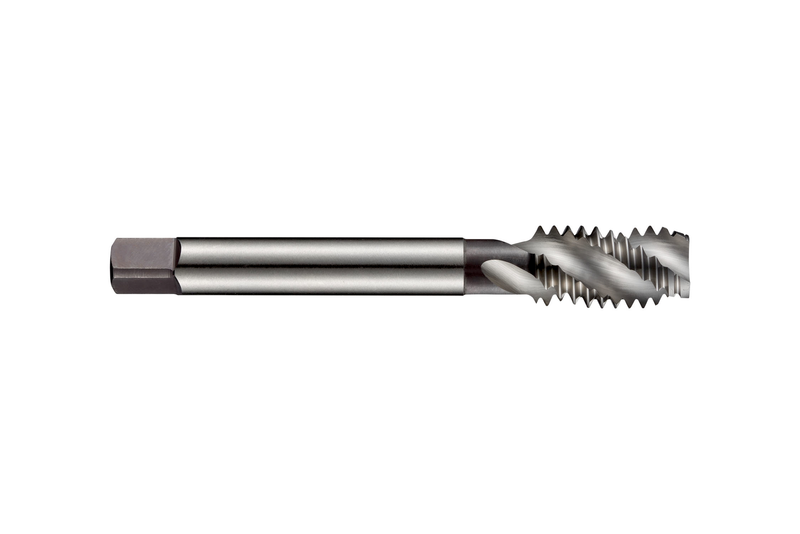

Taraud machine à goujures hélicoïdales, forme C avec entrée de 2-3 filets, pour filetage British Standard Whitworth BSW 5/8" avec 11 filets au pouce et qualité moyenne, dimensions selon norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en acier rapide avec finition brillante et revenu vapeur, angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans aciers de décolletage et aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5335/8
GradeLumineux/TP
Product Number5976521
Product FamilyE533
Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)5/8
Thread Diameter — in (TD)0.625"
Thread Diameter — mm (TD)15.875 mm
Thread Form (THFT)BSW - British standard Whitworth
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201572
EAN7320760201572
File Type Download

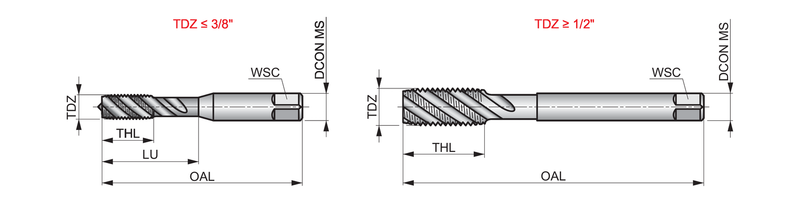

E5335/8 — Line Drawing PDF Download
