E5335/8BLEU
E5335/8BLEU
E5335/8BLEU

E5335/8BLEU

UGC DOR5976525
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$91.99 CAD - $91.99 CAD
$91.99 CAD
$91.99 CAD - $91.99 CAD
$91.99 CAD

Vendu en lots de : 1

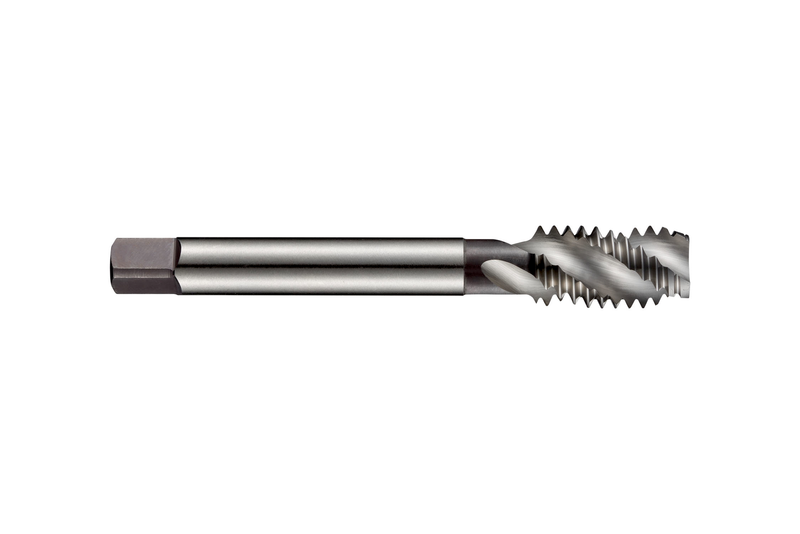

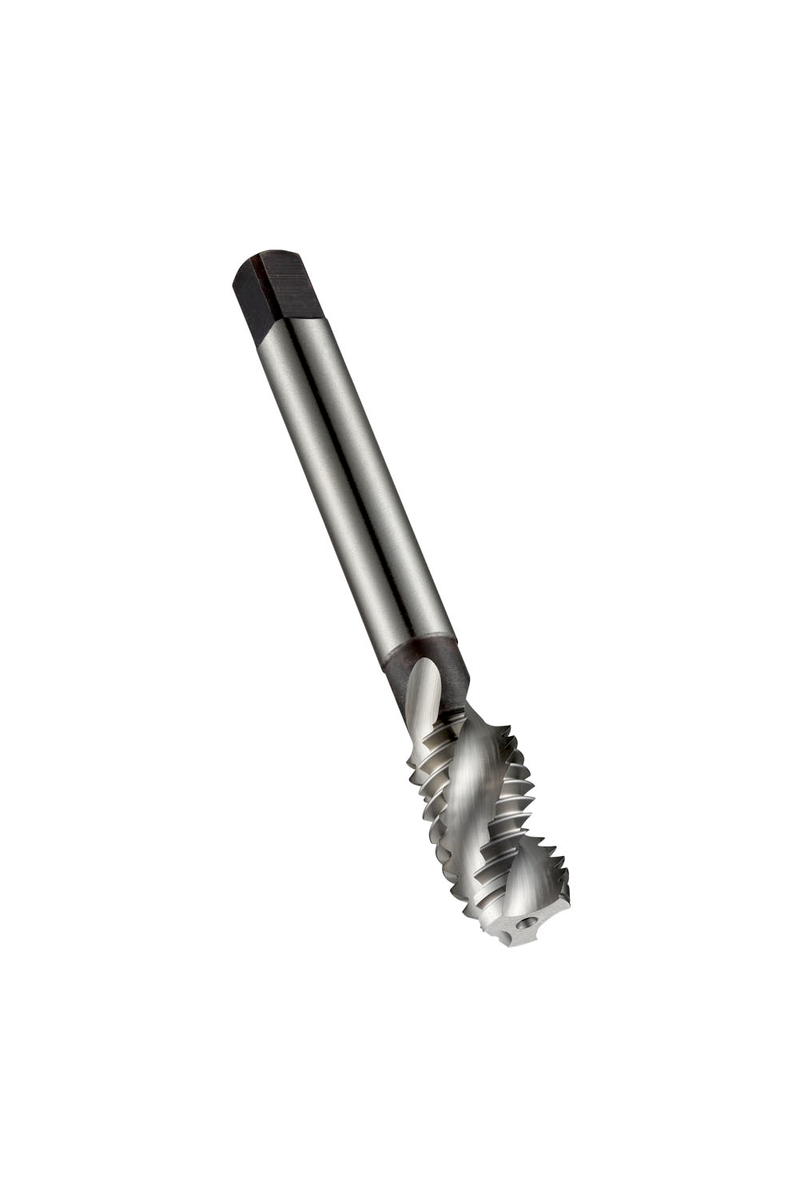

Taraud machine à goujures hélicoïdales à entrée C (2-3 filets) pour filet BSW 5/8" (pas de 11 filets par pouce) de classe de tolérance moyenne, dimensions conformes à la norme ISO 529 avec queue de 12,5 mm et carré d'entraînement de 10,0 mm, en acier rapide (HSS) avec finition brillante et traitement de surface à la vapeur, angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5335/8BLEU
GradeLumineux/ST
Product Number5976525
Product FamilyE533

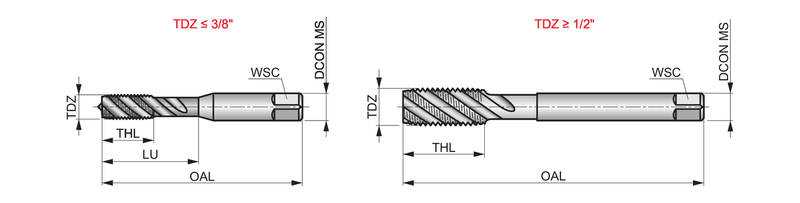

Dimensions
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)5/8
Thread Diameter — in (TD)0.625"
Thread Diameter — mm (TD)15.875 mm
Thread Form (THFT)BSW - Pas Whitworth britannique
Threads per Inch (TPI)11.0
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number201589
EAN7320760201589
File Type Download
E5335/8BLEU — Line Drawing PDF Download
