UGC DOR5976591
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.33 CAD - $20.33 CAD
$20.33 CAD
$20.33 CAD - $20.33 CAD
$20.33 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte 2-3xP, pour filetage British Association BA 4 au pas de 0,66 mm et classe de tolérance normale, dimensions selon la norme ISO 529 avec queue de 3,55 mm et carré d'entraînement de 2,8 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage libre et aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E542BA4NO3
GradeLumineux
Product Number5976591
Product FamilyE542

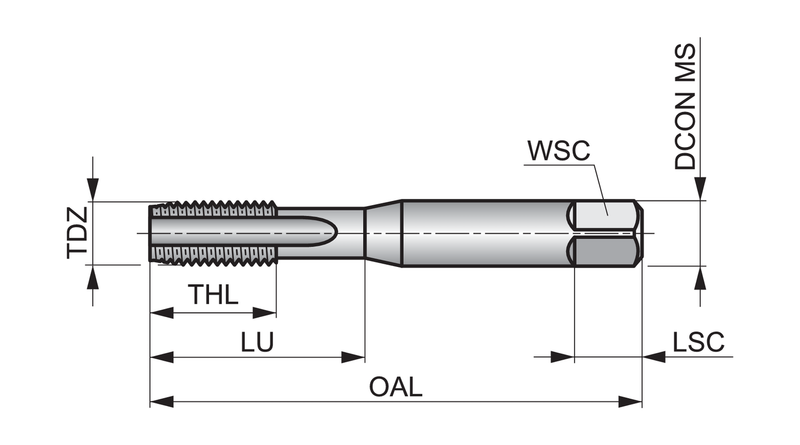

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.6496"
Usable Length — mm (LU)16.5 mm
Connection Dia. — in (DCON)0.1398"
Connection Dia. — mm (DCON)3.55 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)BA 4
Thread Diameter — in (TD)0.1417"
Thread Diameter — mm (TD)3.6 mm
Thread Form (THFT)BA - British association
Thread Pitch — mm (TP)0.66 mm
Thread Pitch — in (TP)0.026"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number99155
EAN7320760099155
File Type Download
E542BA4NO3 — Line Drawing PDF Download
