E5361NO3
E5361NO3
E5361NO3

E5361NO3

UGC DOR5976622
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$159.10 CAD - $159.10 CAD
$159.10 CAD
$159.10 CAD - $159.10 CAD
$159.10 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage BSF (British Standard Fine) 1" avec 10 filets par pouce et classe de tolérance Medium, dimensions selon la norme ISO 529 avec queue de 18,0 mm et carré d'entraînement de 14,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5361NO3
GradeLumineux
Product Number5976622
Product FamilyE536

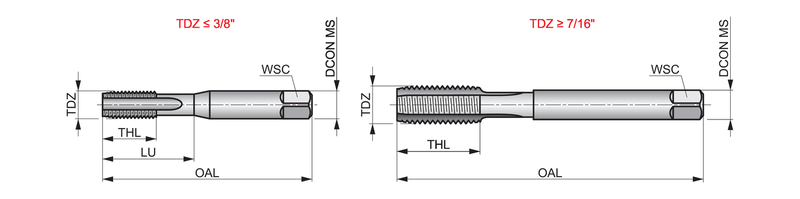

Dimensions
Overall Length — in (OAL)5.1181"
Overall Length — mm (OAL)130.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Diameter — in (TD)1.0"
Thread Diameter — mm (TD)25.4 mm
Thread Form (THFT)BSF - British standard fine
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98899
EAN7320760098899
File Type Download
E5361NO3 — Line Drawing PDF Download
