E422M6
E422M6
E422M6

E422M6

UGC DOR5976640
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.53 CAD - $61.53 CAD
$61.53 CAD
$61.53 CAD - $61.53 CAD
$61.53 CAD

Vendu en lots de : 1

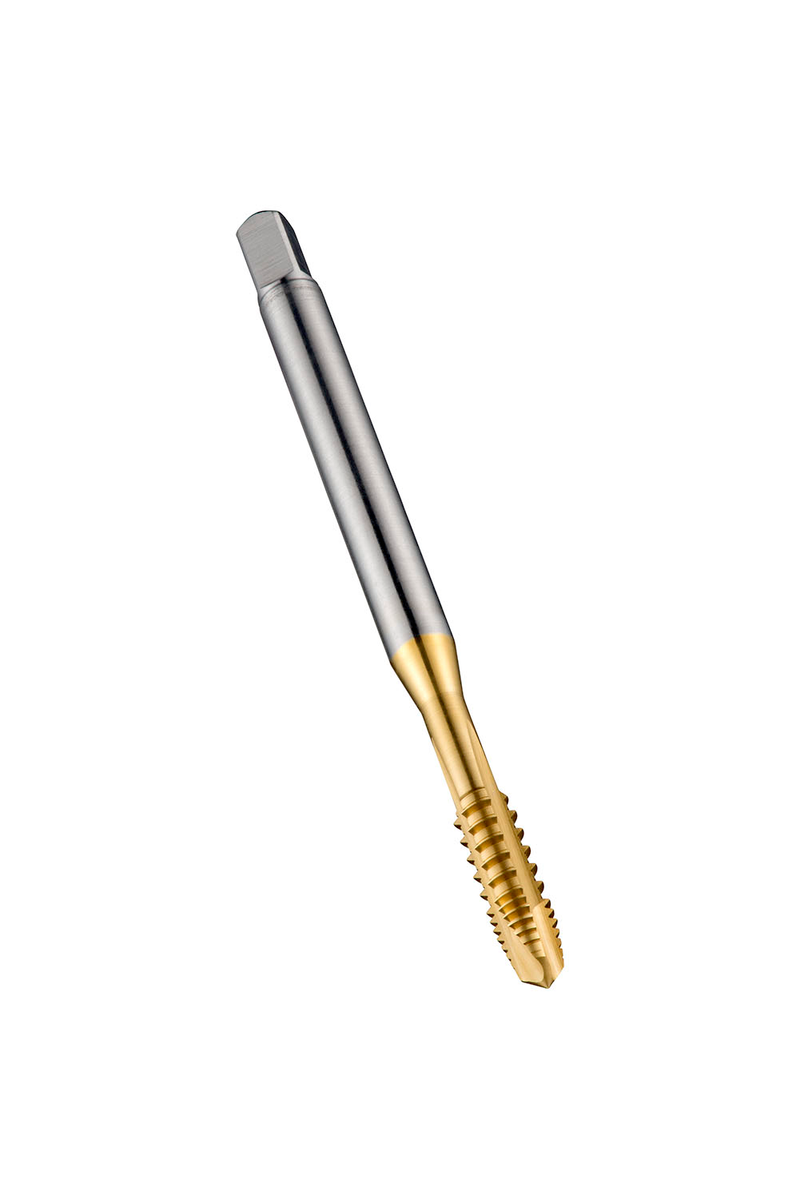

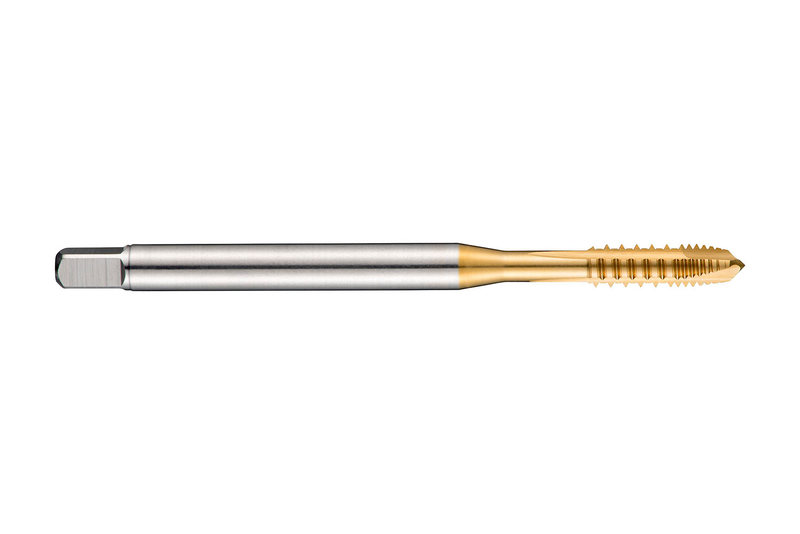

Taraud machine à pointe spirale, forme d'entrée B, 3,5-5 filets, pour filetage ISO-métrique M6 au pas de 1,00 mm et tolérance 6H, dimensions selon norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en acier rapide HSS-E métallurgie des poudres avec revêtement TiN pour le taraudage de trous débouchants jusqu'à 3xD dans l'acier de décolletage, l'acier au carbone non allié et allié, et les aciers corroyés ou le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E422M6
GradeTiN
Product Number5976640
Product FamilyE422

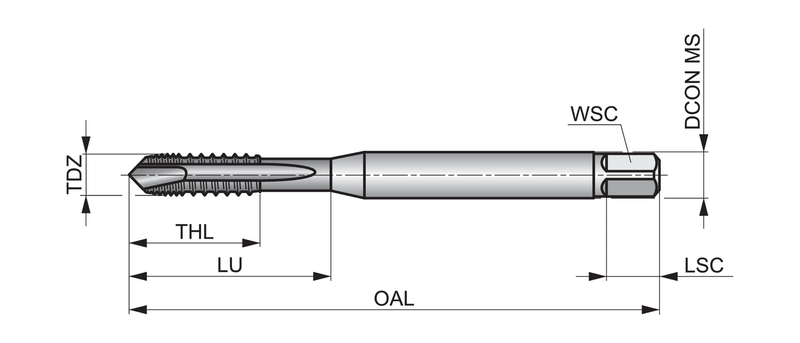

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number92965
EAN7320760092965
File Type Download
E422M6 — Line Drawing PDF Download
