E542BA10NO3
E542BA10NO3
E542BA10NO3

E542BA10NO3

UGC DOR5976647
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.60 CAD - $66.60 CAD
$66.60 CAD
$66.60 CAD - $66.60 CAD
$66.60 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée tronquée 2-3xP, pour filetage British Association BA 10 avec pas de 0,35 mm et classe de tolérance Normale, dimensions selon la norme ISO 529 avec queue de 2,5 mm et carré d'entraînement de 2,0 mm, HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E542BA10NO3
GradeLumineux
Product Number5976647
Product FamilyE542

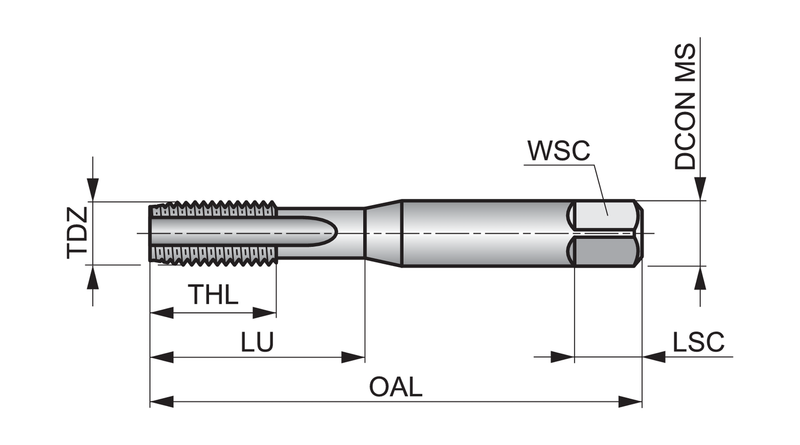

Dimensions
Overall Length — in (OAL)1.6142"
Overall Length — mm (OAL)41.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.2756"
Usable Length — mm (LU)7.0 mm
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)BA10
Thread Diameter — in (TD)0.0669"
Thread Diameter — mm (TD)1.7 mm
Thread Form (THFT)BA - association britannique
Thread Pitch — mm (TP)0.35 mm
Thread Pitch — in (TP)0.0138"
Tool Information
ShankTige cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number99100
EAN7320760099100
File Type Download
E542BA10NO3 — Line Drawing PDF Download
