E423M12
E423M12
E423M12

E423M12

UGC DOR5976648
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$102.73 CAD - $102.73 CAD
$102.73 CAD
$102.73 CAD - $102.73 CAD
$102.73 CAD

Vendu en lots de : 1

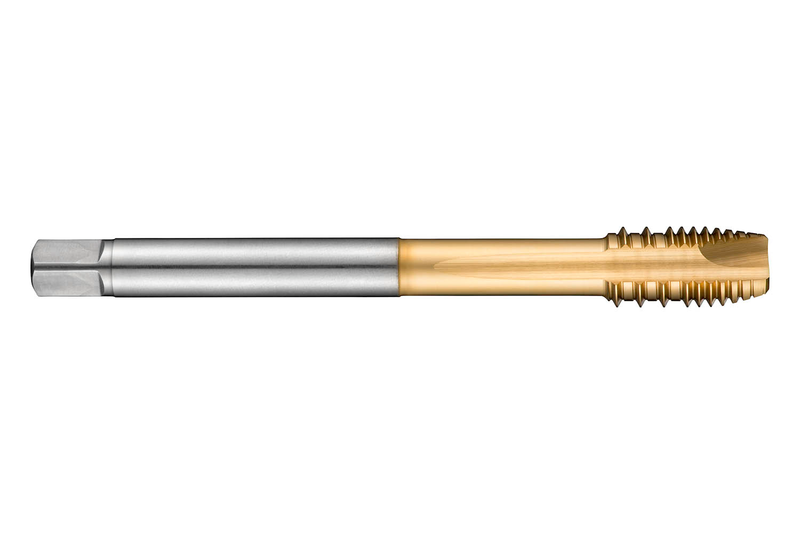

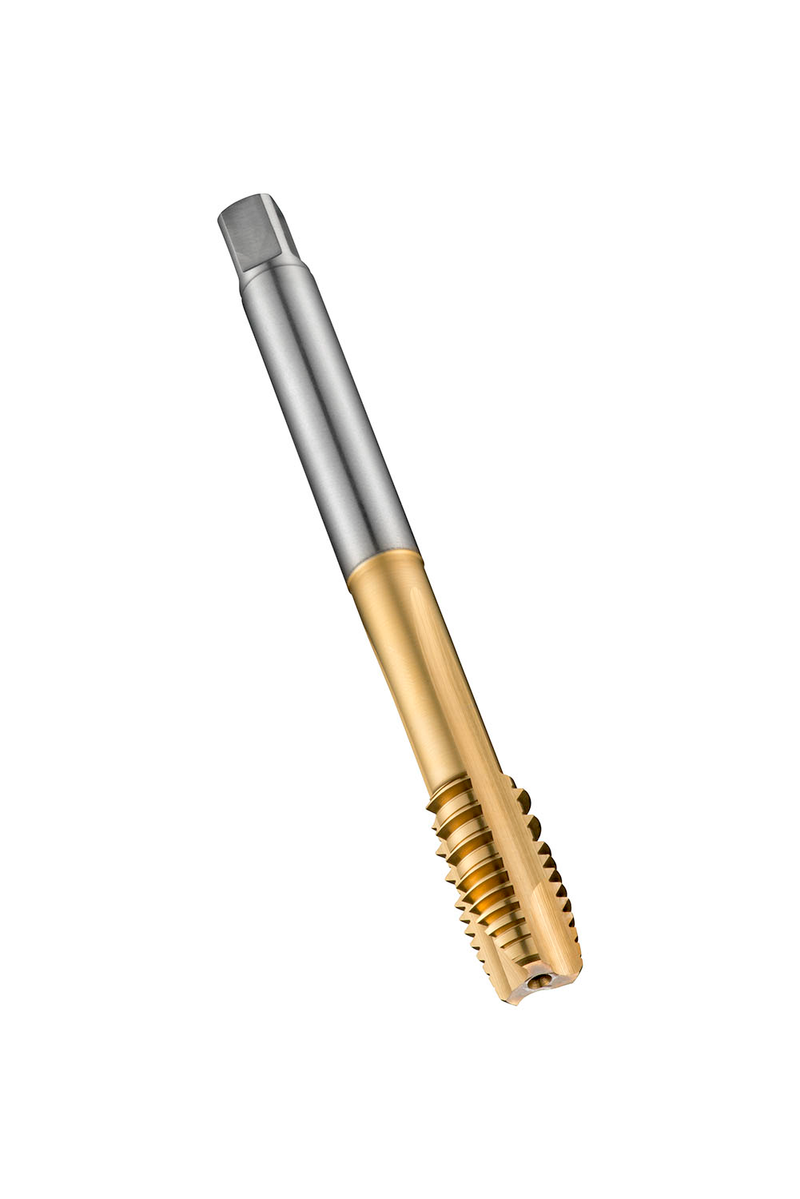

Taraud machine à pointe spirale avec entrée B (3,5-5 filets) pour filet métrique ISO M12 au pas de 1,75 mm et tolérance 6H, dimensions selon norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E PM avec revêtement TiN pour le taraudage de trous débouchants 3xD dans les aciers de décolletage, les aciers au carbone, les aciers alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E423M12
GradeTiN
Product Number5976648
Product FamilyE423

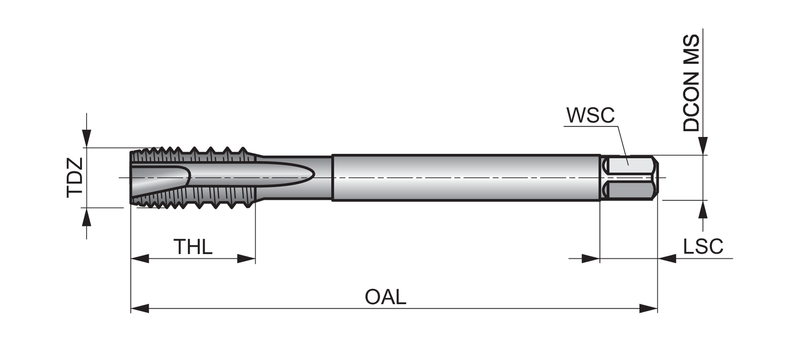

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number92989
EAN7320760092989
File Type Download
E423M12 — Line Drawing PDF Download
