E423M14
E423M14
E423M14

E423M14

UGC DOR5976651
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.10 CAD - $136.10 CAD
$136.10 CAD
$136.10 CAD - $136.10 CAD
$136.10 CAD

Vendu en lots de : 1

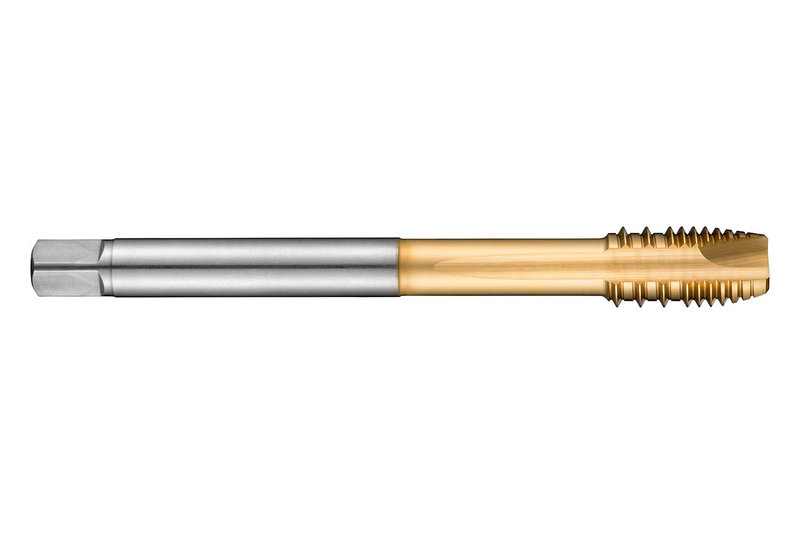

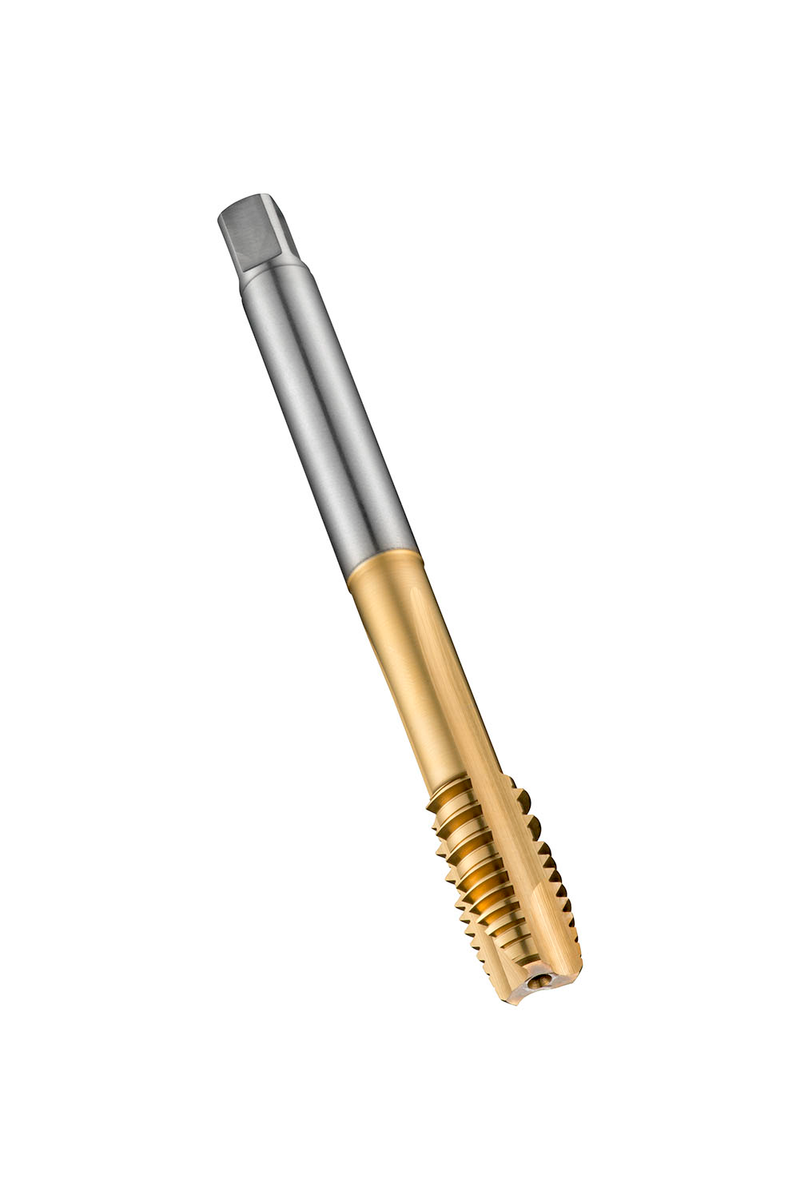

Taraud machine à pointe spirale avec entrée forme B (3.5-5xP), pour filet métrique ISO M14 au pas de 2,00 mm et tolérance 6H, dimensions selon la norme DIN 376 avec queue de 11,0 mm et carré d'entraînement de 9,0 mm, en HSS-E (acier rapide fritté) avec revêtement TiN, pour le taraudage de trous débouchants jusqu'à 3xD dans les aciers à usinage facile, les aciers au carbone, les aciers alliés, ainsi que le cuivre et ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E423M14
GradeTiN
Product Number5976651
Product FamilyE423

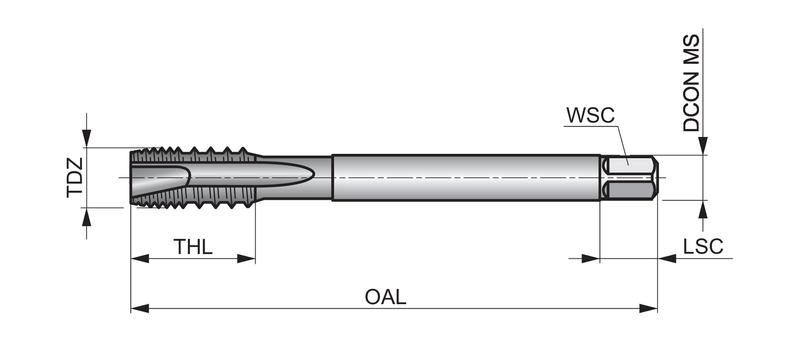

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number92996
EAN7320760092996
File Type Download
E423M14 — Line Drawing PDF Download
