UGC DOR5976660
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.33 CAD - $20.33 CAD
$20.33 CAD
$20.33 CAD - $20.33 CAD
$20.33 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage British Association BA 0 avec pas de 1,00 mm et classe de tolérance « Normal », dimensions conformes à la norme ISO 529 avec queue de 6,3 mm et carré d'entraînement de 5,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E542BA0NO3
GradeLumineux
Product Number5976660
Product FamilyE542

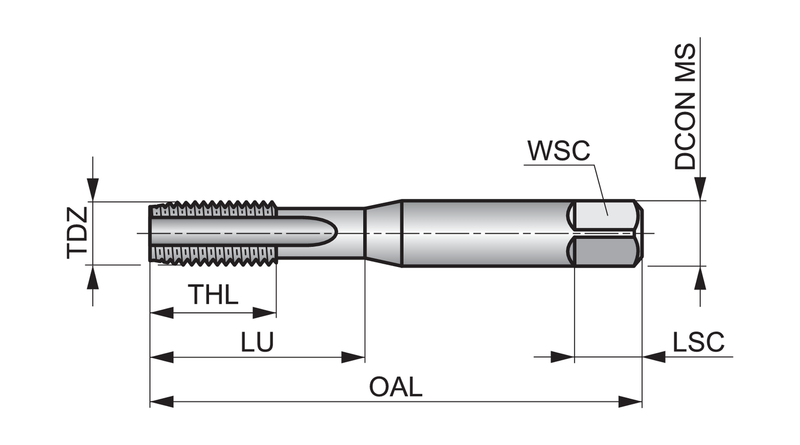

Dimensions
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.0236"
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.248"
Connection Dia. — mm (DCON)6.3 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)BA 0
Thread Diameter — in (TD)0.2362"
Thread Diameter — mm (TD)6.0 mm
Thread Form (THFT)BA - Association britannique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankTige cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number99087
EAN7320760099087
File Type Download
E542BA0NO3 — Line Drawing PDF Download
