UGC DOR5976672
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.43 CAD - $43.43 CAD
$43.43 CAD
$43.43 CAD - $43.43 CAD
$43.43 CAD

Vendu en lots de : 1

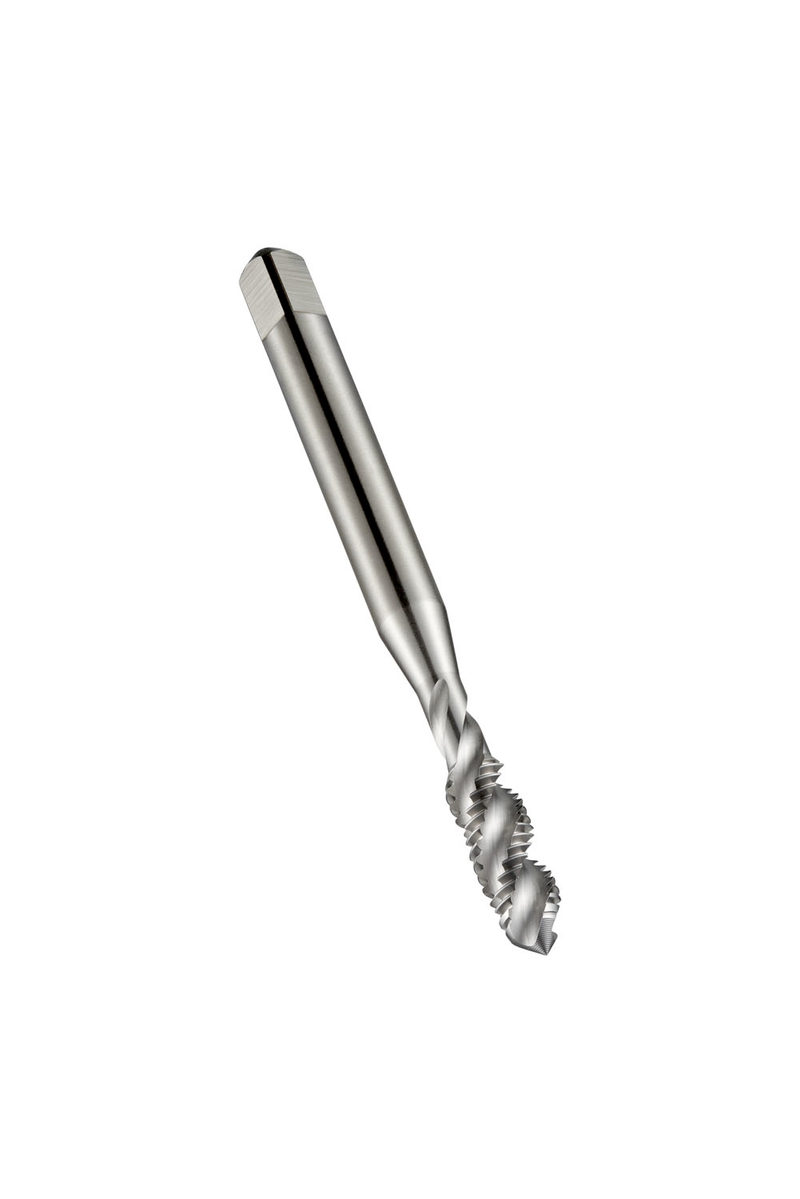

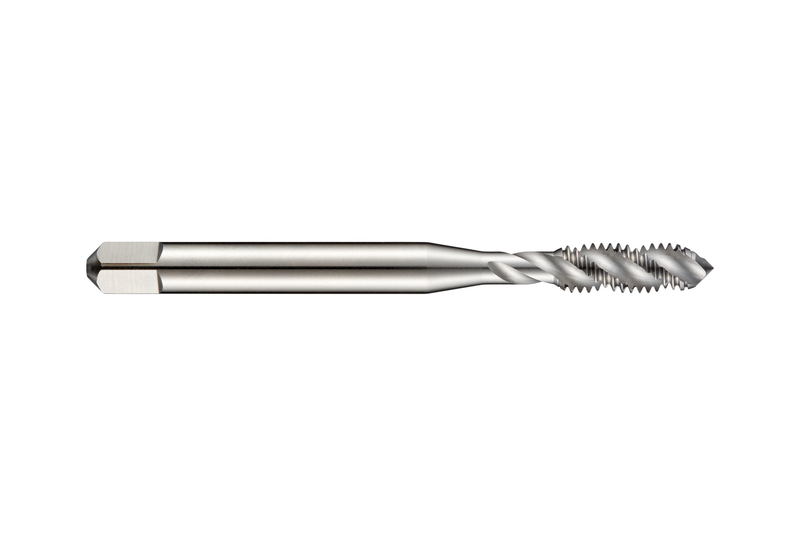

Taraud machine à goujures hélicoïdales avec chanfrein forme C, entrée 2-3xP, pour filetage British Association BA 2 avec un pas de 0,81 mm et classe de tolérance Normale, dimensions selon la norme ISO 529 avec queue de 5,0 mm et carré d'entraînement de 4,0 mm, HSS finition brillante avec revenu vapeur et angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage, aciers au carbone non alliés et aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E544BA2
GradeLumineux/ST
Product Number5976672
Product FamilyE544

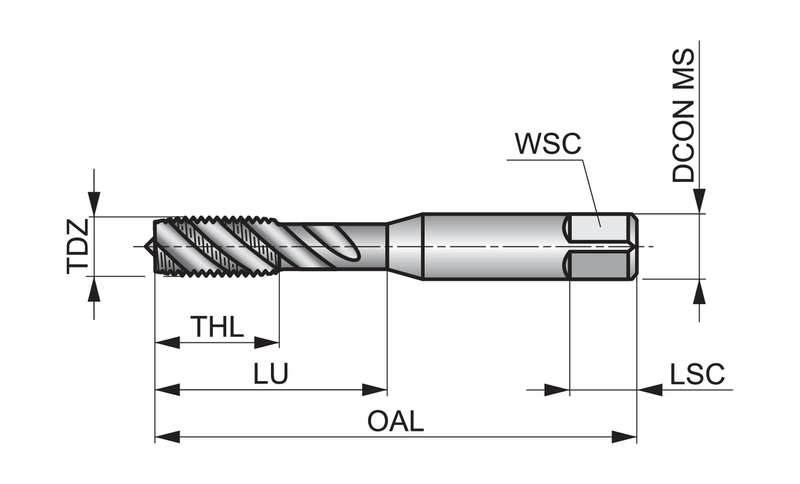

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)BA 2
Thread Diameter — in (TD)0.185"
Thread Diameter — mm (TD)4.7 mm
Thread Form (THFT)BA - Association britannique
Thread Pitch — mm (TP)0.81 mm
Thread Pitch — in (TP)0.0319"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number204085
EAN7320760204085
File Type Download
E544BA2 — Line Drawing PDF Download
