UGC DOR5976675
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.73 CAD - $23.73 CAD
$23.73 CAD
$23.73 CAD - $23.73 CAD
$23.73 CAD

Vendu en lots de : 1

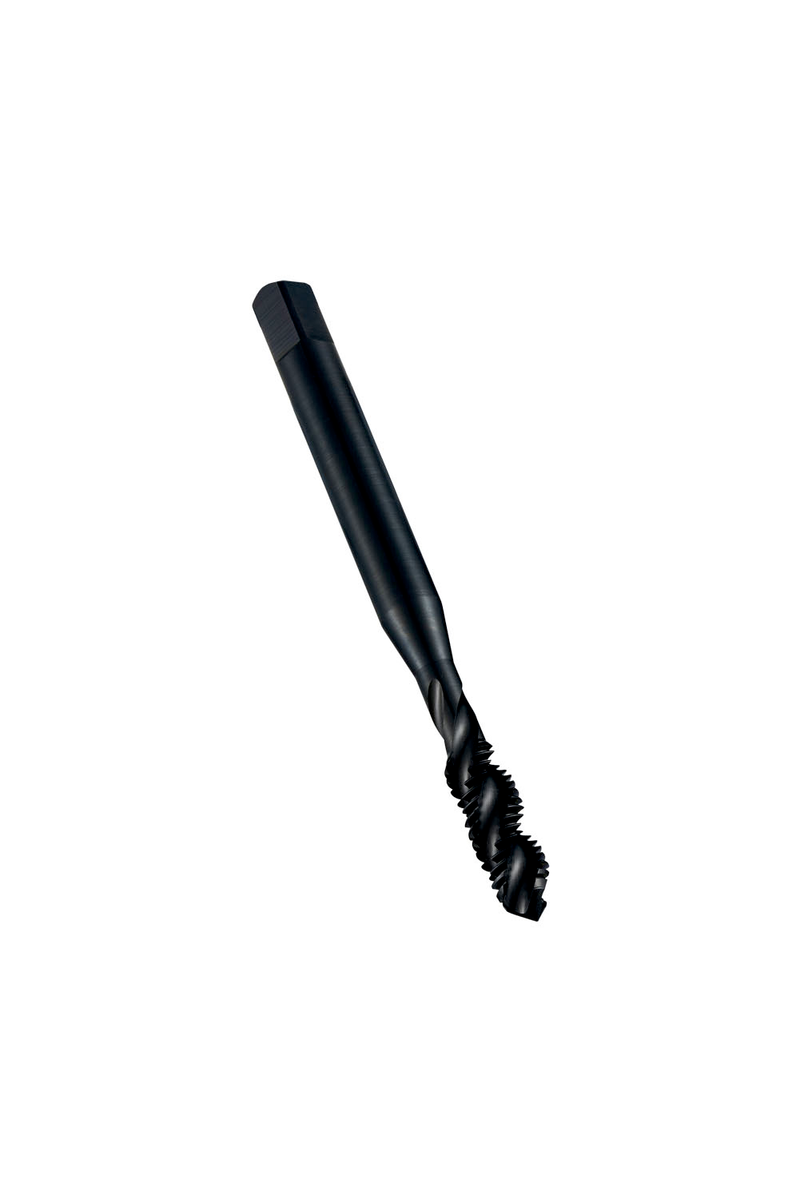

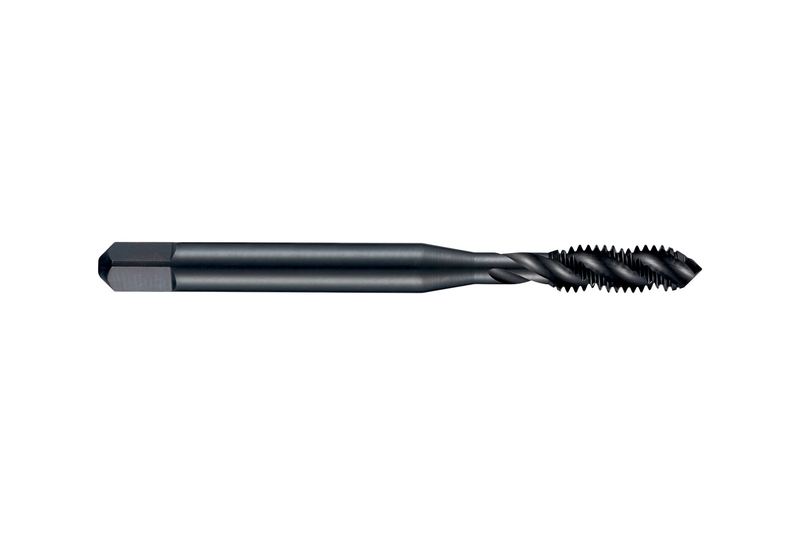

Taraud à queue spiralée avec chanfrein forme C et entrée de 2-3 filets, pour filetage British Association BA 2 avec un pas de 0,81 mm et une classe de tolérance normale, dimensions selon la norme ISO 529 avec un diamètre de queue de 5,0 mm et un carré d'entraînement de 4,0 mm, en HSS avec finition brillante et revenu à la vapeur, et un angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2xD dans des applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E544BA2BLEU
GradeLumineux/ST
Product Number5976675
Product FamilyE544

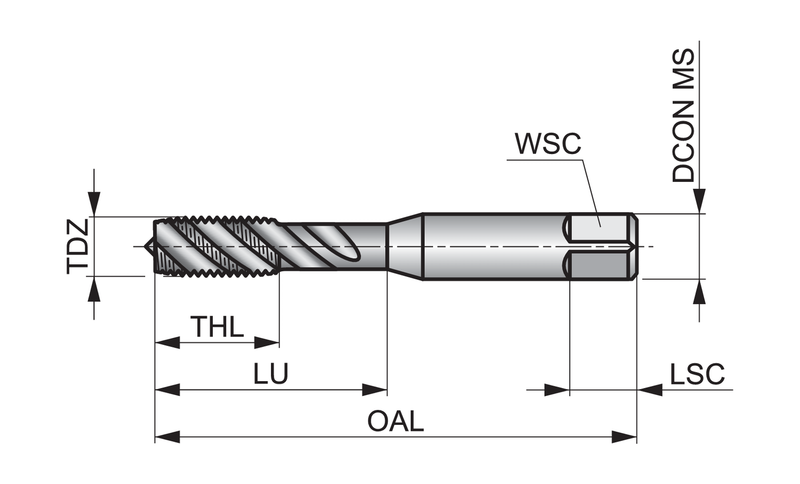

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)BA 2
Thread Diameter — in (TD)0.185"
Thread Diameter — mm (TD)4.7 mm
Thread Form (THFT)BA - Association britannique
Thread Pitch — mm (TP)0.81 mm
Thread Pitch — in (TP)0.0319"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number204092
EAN7320760204092
File Type Download
E544BA2BLEU — Line Drawing PDF Download
