E544BA4
E544BA4
E544BA4

E544BA4

UGC DOR5976678
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.33 CAD - $24.33 CAD
$24.33 CAD
$24.33 CAD - $24.33 CAD
$24.33 CAD

Vendu en lots de : 1

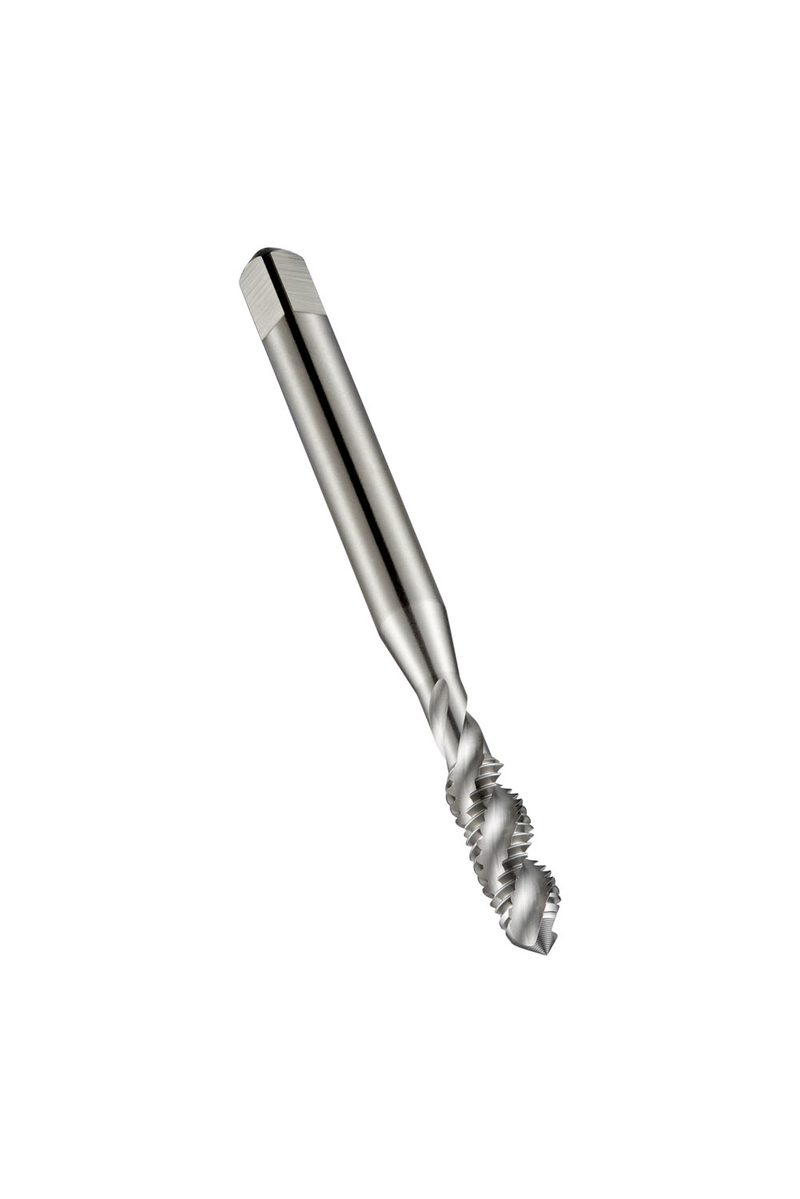

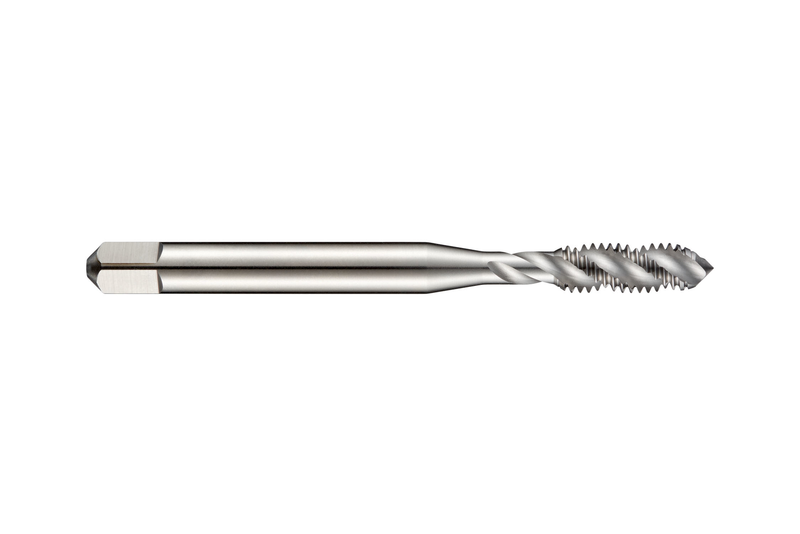

Taraud machine à goujures hélicoïdales, forme C avec entrée de 2-3 filets, pour filetage British Association BA 4 avec un pas de 0,66 mm et une classe de tolérance normale, dimensions selon la norme ISO 529 avec queue de 3,55 mm et carré d'entraînement de 2,8 mm, en HSS finition brillante avec revenu vapeur et angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans les aciers de décolletage, les aciers au carbone non alliés et les aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E544BA4
GradeVif/ST
Product Number5976678
Product FamilyE544

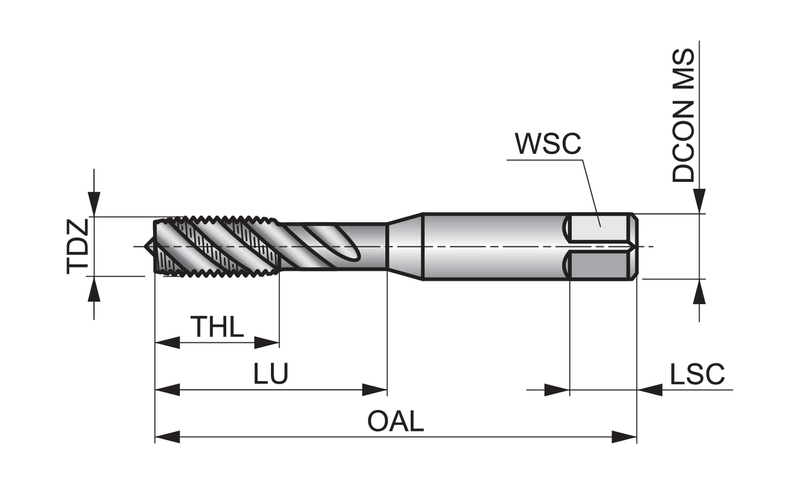

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.6496"
Usable Length — mm (LU)16.5 mm
Connection Dia. — in (DCON)0.1398"
Connection Dia. — mm (DCON)3.55 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)BA 4
Thread Diameter — in (TD)0.1417"
Thread Diameter — mm (TD)3.6 mm
Thread Form (THFT)BA - Association britannique
Thread Pitch — mm (TP)0.66 mm
Thread Pitch — in (TP)0.026"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number204054
EAN7320760204054
File Type Download
E544BA4 — Line Drawing PDF Download
