E513M10X1.0NO6
E513M10X1.0NO6
E513M10X1.0NO6
E513M10X1.0NO6

E513M10X1.0NO6

UGC DOR5976682
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

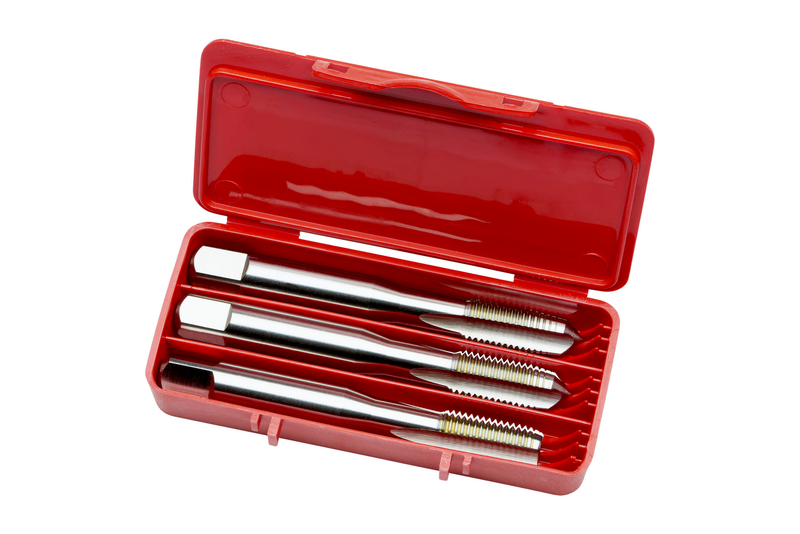

Jeu de tarauds à main à coupe droite NO6 pour filetages métriques ISO M10 au pas de 1,00 mm, de classe de tolérance 6H, comprenant 1 taraud ébaucheur de 6-8 filets, 1 taraud semi-finisseur de 4-6 filets et 1 taraud finisseur de 2-3 filets, dimensions conformes à la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS avec finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers à usinage facile, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M10X1.0NO6
GradeLumineux
Product Number5976682
Product FamilyE513

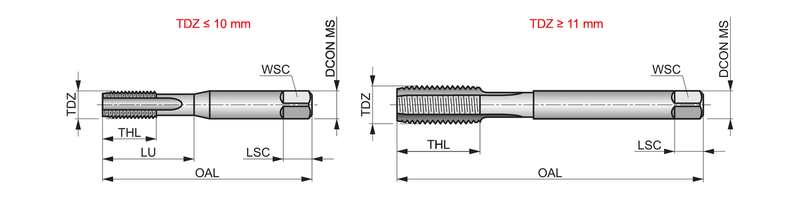

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.3386"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Mètrique fine
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number157084
EAN7320760157084
File Type Download
E513M10X1.0NO6 — Line Drawing PDF Download
