E5363/8NO3
E5363/8NO3
E5363/8NO3

E5363/8NO3

UGC DOR5976685
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.64 CAD - $28.64 CAD
$28.64 CAD
$28.64 CAD - $28.64 CAD
$28.64 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée tronquée 2-3xP, pour filetage BSF 3/8" au pas de 20 filets par pouce et tolérance moyenne, dimensions selon la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en HSS avec finition brillante pour le taraudage de trous traversants ou borgnes jusqu'à 1,5xD dans les aciers à coupe libre et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E5363/8NO3
GradeLumineux
Product Number5976685
Product FamilyE536

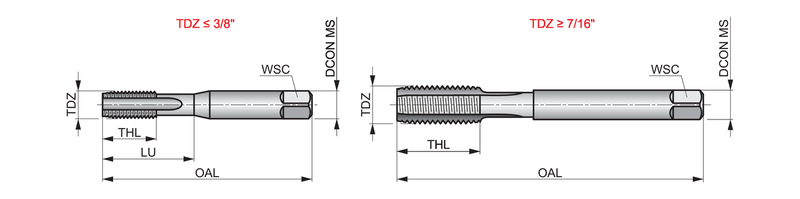

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.2598"
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.3752"
Thread Diameter — mm (TD)9.53 mm
Thread Form (THFT)BSF - British Standard Fine
Threads per Inch (TPI)20.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number98998
EAN7320760098998
File Type Download
E5363/8NO3 — Line Drawing PDF Download
