E544BA8
E544BA8
E544BA8

E544BA8

UGC DOR5976695
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.77 CAD - $48.77 CAD
$48.77 CAD
$48.77 CAD - $48.77 CAD
$48.77 CAD

Vendu en lots de : 1

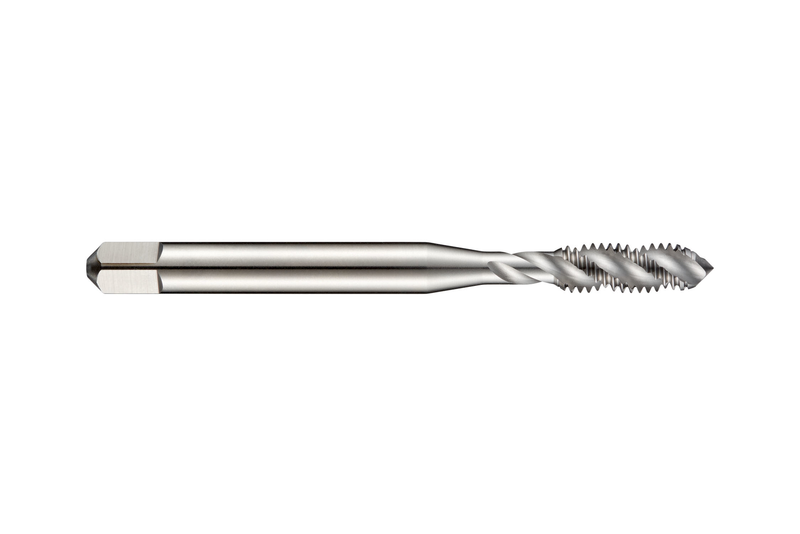

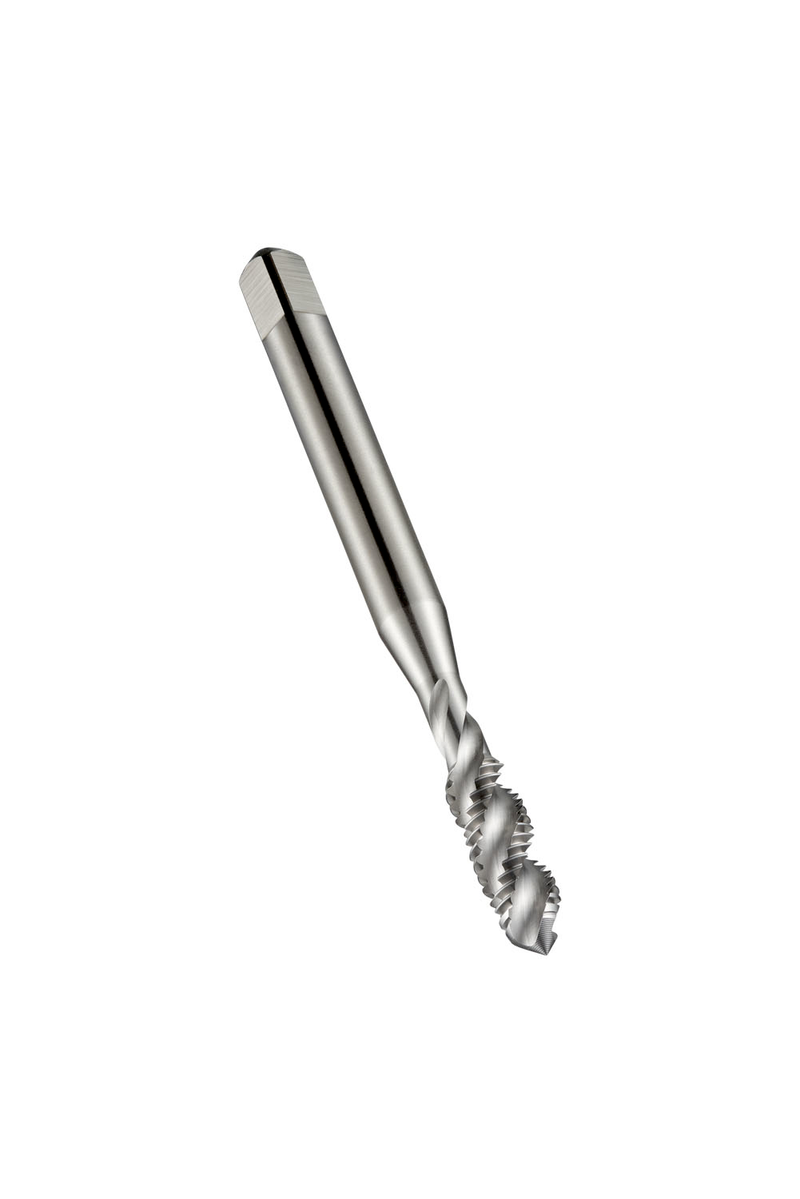

Taraud machine à goujures hélicoïdales avec chanfrein forme C de 2-3 filets, pour filetage British Association BA 8 avec un pas de 0.43 mm et classe de tolérance « Normal », dimensions selon norme ISO 529 avec queue de 2.8mm et carré d'entraînement de 2.2mm, en HSS avec finition brillante trempée vapeur et angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans les aciers à usinage facile, aciers au carbone non alliés et aciers alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E544BA8
GradeLumineux/ST
Product Number5976695
Product FamilyE544

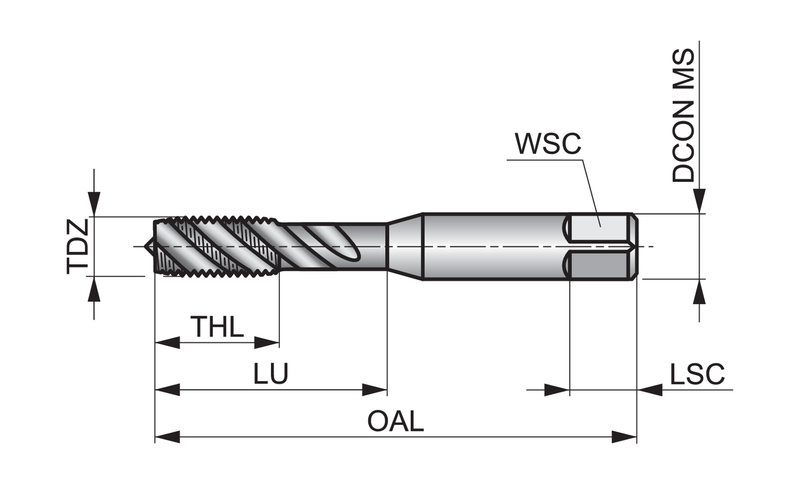

Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)BA 8
Thread Diameter — in (TD)0.0866"
Thread Diameter — mm (TD)2.2 mm
Thread Form (THFT)BA - Association britannique
Thread Pitch — mm (TP)0.43 mm
Thread Pitch — in (TP)0.0169"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number204009
EAN7320760204009
File Type Download
E544BA8 — Line Drawing PDF Download
