E544BA8BLEU
E544BA8BLEU
E544BA8BLEU

E544BA8BLEU

UGC DOR5976697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.77 CAD - $48.77 CAD
$48.77 CAD
$48.77 CAD - $48.77 CAD
$48.77 CAD

Vendu en lots de : 1

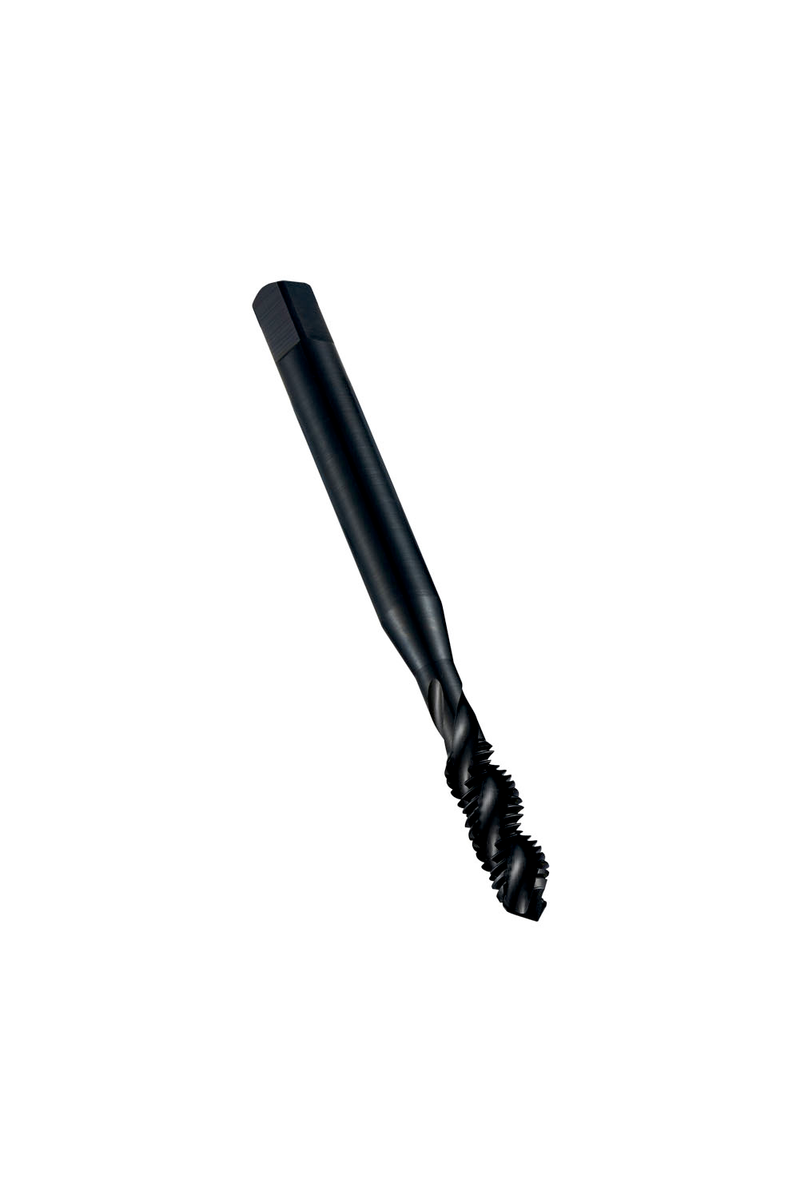

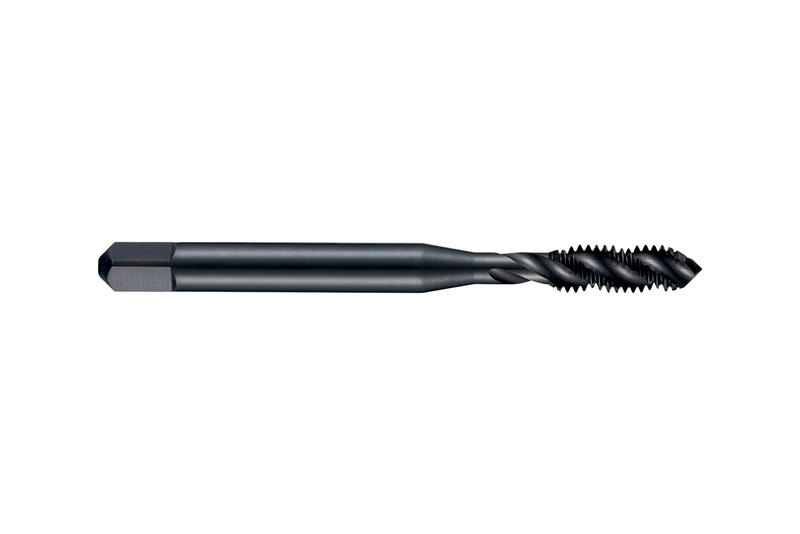

Taraud machine à goujure hélicoïdale, forme C, entrée 2-3 filets, pour filetage British Association BA 8 au pas de 0,43 mm et qualité normale, dimensions selon la norme ISO 529 avec queue de 2,8 mm et carré d'entraînement de 2,2 mm, HSS finition brillante avec revenu vapeur et angle d'hélice de 40° pour taraudage de trous borgnes jusqu'à 2xD dans des applications courantes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E544BA8BLEU
GradeClair/ST
Product Number5976697
Product FamilyE544

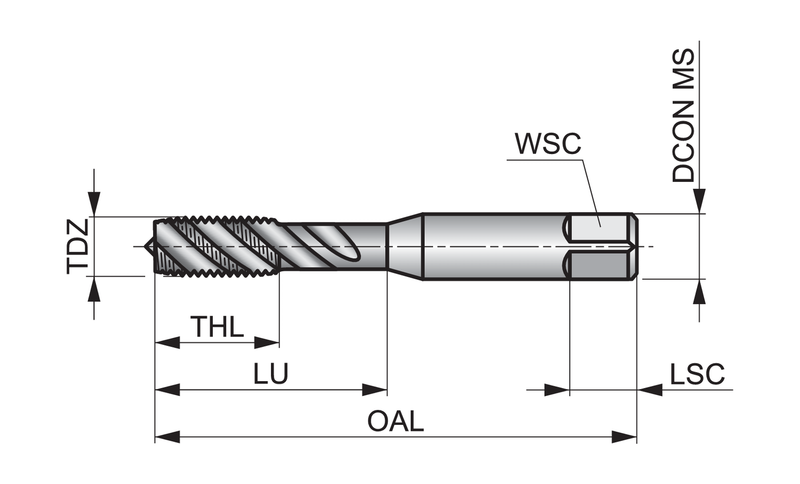

Dimensions
Overall Length — in (OAL)1.752"
Overall Length — mm (OAL)44.5 mm
Length × Diameter Ratio2
Usable Length — in (LU)0.374"
Usable Length — mm (LU)9.5 mm
Connection Dia. — in (DCON)0.1102"
Connection Dia. — mm (DCON)2.8 mm
Number of Flutes (NOF)2
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)BA 8
Thread Diameter — in (TD)0.0866"
Thread Diameter — mm (TD)2.2 mm
Thread Form (THFT)AB - Association britannique
Thread Pitch — mm (TP)0.43 mm
Thread Pitch — in (TP)0.0169"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number204016
EAN7320760204016
File Type Download
E544BA8BLEU — Line Drawing PDF Download
