E513M12X1.25NO7
E513M12X1.25NO7
E513M12X1.25NO7

E513M12X1.25NO7

UGC DOR5976725
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.86 CAD - $89.86 CAD
$89.86 CAD
$89.86 CAD - $89.86 CAD
$89.86 CAD

Vendu en lots de : 1

Jeu de tarauds à main à coupe droite NO7 pour filetage ISO-Métric fin M12 au pas de 1,25 mm et classe de tolérance 6H, comprenant 1 taraud ébaucheur de 4-6xP et 1 taraud finisseur de 2-3xP, dimensions selon la norme ISO 529 avec queue de 9,0 mm et carré d'entraînement de 7,1 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans l'acier de décolletage, l'acier au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M12X1.25NO7
GradeLumineux
Product Number5976725
Product FamilyE513

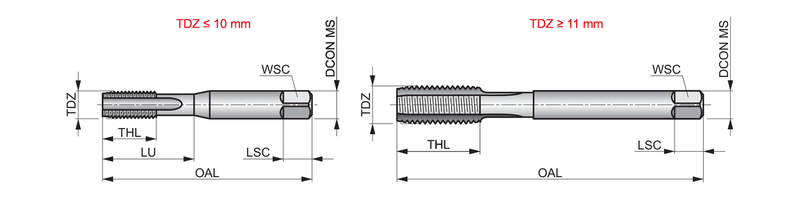

Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96123
EAN7320760096123
File Type Download
E513M12X1.25NO7 — Line Drawing PDF Download
