E500M4.5NON1
E500M4.5NON1

E500M4.5NON1

UGC DOR5976749
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.60 CAD - $12.60 CAD
$12.60 CAD
$12.60 CAD - $12.60 CAD
$12.60 CAD

Vendu en lots de : 1

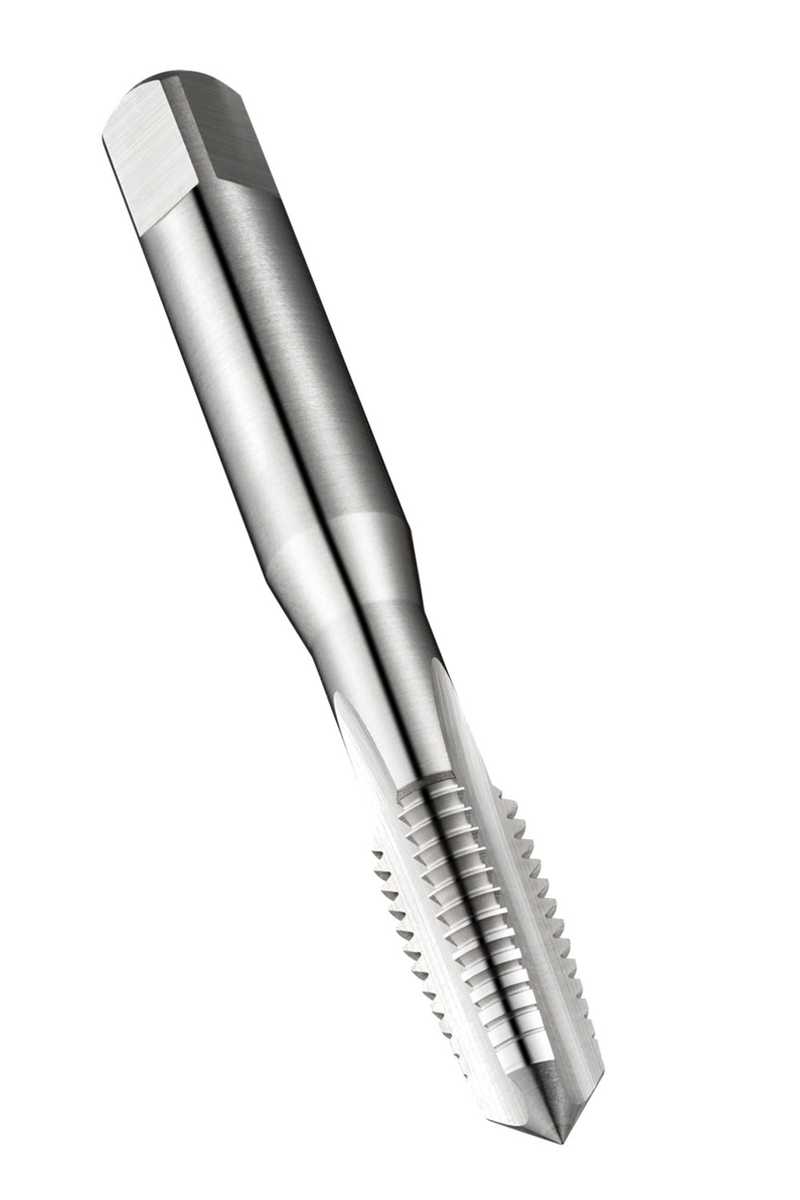

Taraud main à flûte droite NO1 avec une entrée conique de 6-8 filets (P), pour filetage métrique ISO M4.5 au pas de 0,75 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec un diamètre de queue de 4,5 mm et un carré d'entraînement de 3,55 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M4.5NO1
GradeLumineux
Product Number5976749
Product FamilyE500

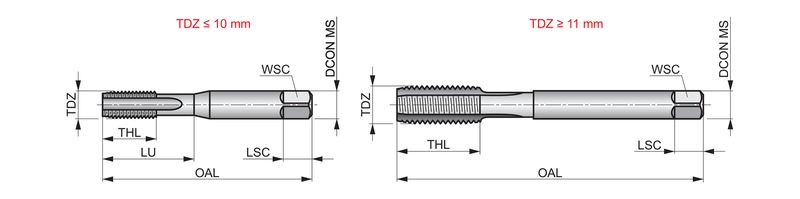

Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4.5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154762
EAN7320760154762
File Type Download
E500M4.5NON1 — Line Drawing PDF Download
