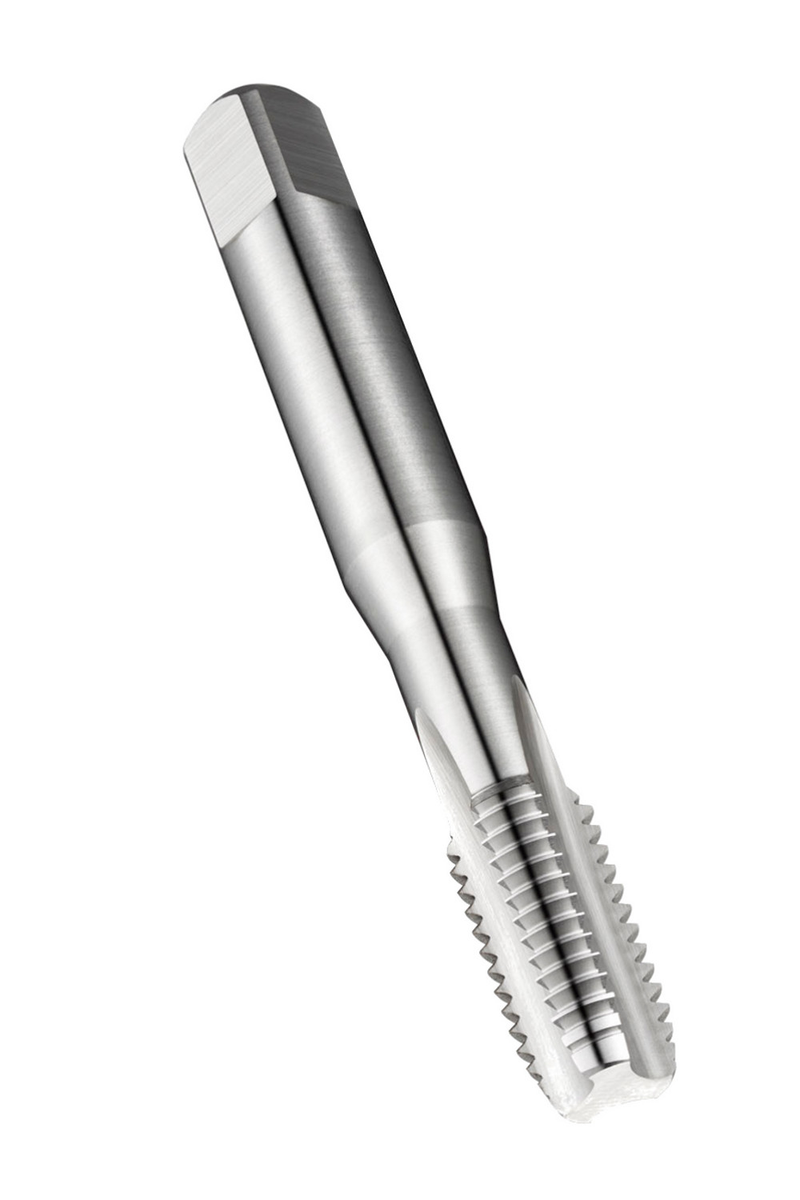

E500M4.5NO3
E500M4.5NO3

E500M4.5NO3

UGC DOR5976754
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.60 CAD - $12.60 CAD
$12.60 CAD
$12.60 CAD - $12.60 CAD
$12.60 CAD

Vendu en lots de : 1

Taraud à main à flûtes droites NO3 avec entrée conique 2-3xP, pour filet ISO-Métrique M4.5 au pas de 0.75 mm et classe de tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 4.5mm et carré d'entraînement de 3.55mm, HSS finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1.5xD dans les aciers à usinage facile et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M4.5NO3
GradeLumineux
Product Number5976754
Product FamilyE500
Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4.5
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number94624
EAN7320760094624
File Type Download
E500M4.5NO3 — Line Drawing PDF Download
