E500M4.5NO6
E500M4.5NO6

E500M4.5NO6

UGC DOR5976757
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.96 CAD - $37.96 CAD
$37.96 CAD
$37.96 CAD - $37.96 CAD
$37.96 CAD

Vendu en lots de : 1

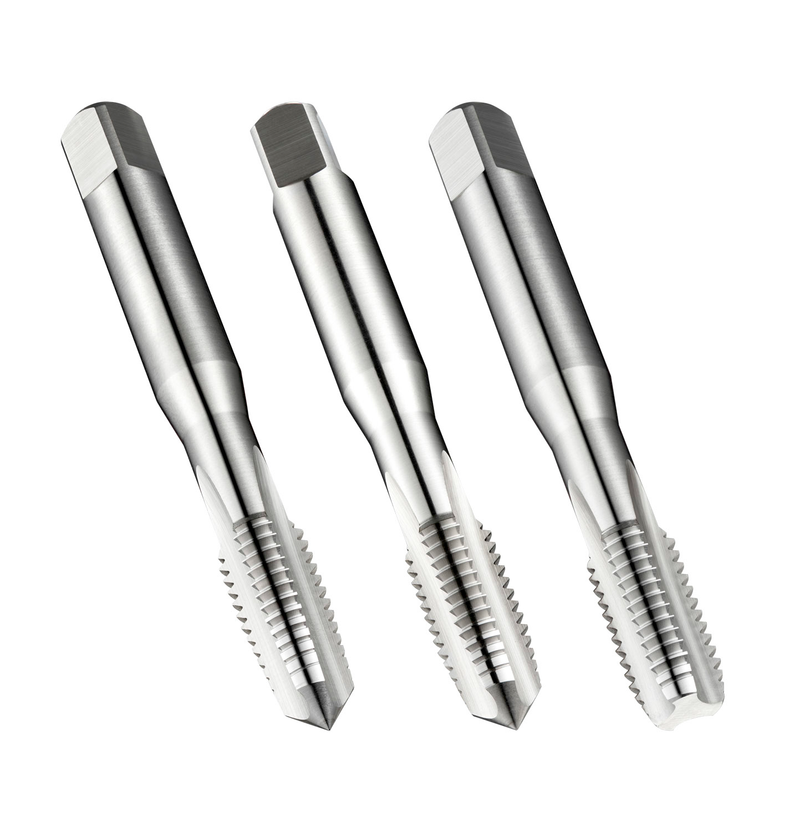

Jeu de tarauds à main à coupe droite NO6 pour filetage ISO-Métrique M4.5 avec pas de 0.75 mm et tolérance 6H, composé de 1 taraud ébaucheur 6-8xP, 1 taraud semi-finisseur 4-6xP et 1 taraud finisseur 2-3xP, dimensions conformes à la norme ISO 529 avec queue de 4.5mm et carré d'entraînement de 3.55mm, HSS poli brillant pour le taraudage de trous traversants ou borgnes jusqu'à 1.5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M4.5NO6
GradeLumineux
Product Number5976757
Product FamilyE500
Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4.5
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154755
EAN7320760154755
File Type Download
E500M4.5NO6 — Line Drawing PDF Download
