E513M14X1.25NO3
E513M14X1.25NO3
E513M14X1.25NO3

E513M14X1.25NO3

UGC DOR5976760
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.21 CAD - $50.21 CAD
$50.21 CAD
$50.21 CAD - $50.21 CAD
$50.21 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO3 avec entrée courte 2-3 filets, pour filetage métrique fin ISO M14 au pas de 1,25 mm et tolérance 6H, dimensions selon la norme ISO 529 avec queue de 11,2 mm et carré d'entraînement de 9,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M14X1.25NO3
GradeLumineux
Product Number5976760
Product FamilyE513

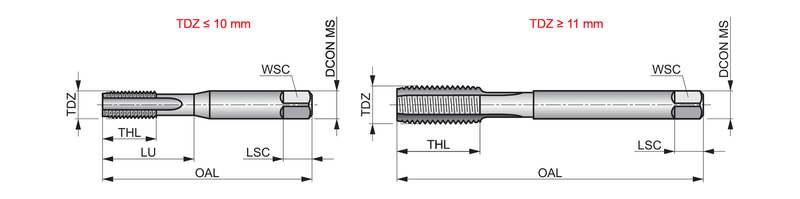

Dimensions
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.4409"
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number96161
EAN7320760096161
File Type Download
E513M14X1.25NO3 — Line Drawing PDF Download
