E513M10X1.25NO2
E513M10X1.25NO2
E513M10X1.25NO2

E513M10X1.25NO2

UGC DOR5976768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.17 CAD - $39.17 CAD
$39.17 CAD
$39.17 CAD - $39.17 CAD
$39.17 CAD

Vendu en lots de : 1

Taraud à main à coupe droite NO2 avec entrée 4-6xP, pour filetage métrique fin ISO M10 au pas de 1,25 mm et classe de tolérance 6H, dimensions selon la norme ISO 529 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage, les aciers au carbone non alliés, le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E513M10X1.25NO2
GradeLumineux
Product Number5976768
Product FamilyE513

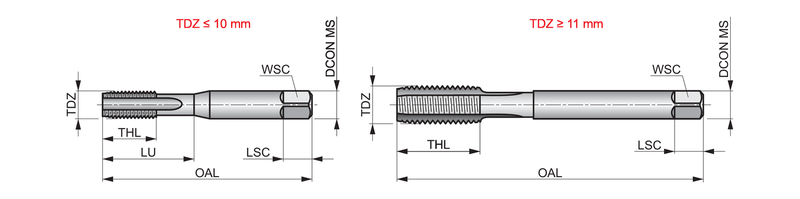

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.3386"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin (métrique)
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number152508
EAN7320760152508
File Type Download
E513M10X1.25NO2 — Line Drawing PDF Download
