E500M33NO1
E500M33NO1

E500M33NO1

UGC DOR5976778
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$435.54 CAD - $435.54 CAD
$435.54 CAD
$435.54 CAD - $435.54 CAD
$435.54 CAD

Vendu en lots de : 1

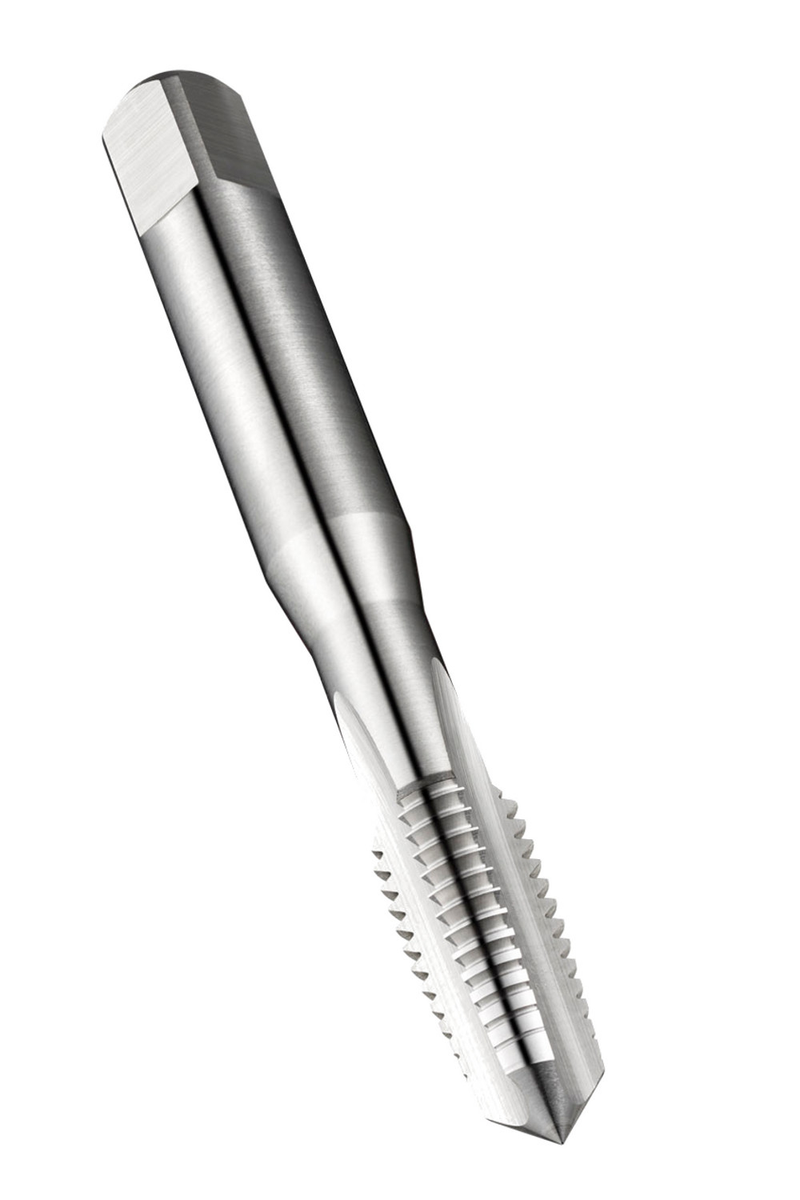

Taraud main à goujures droites NO1 avec entrée conique 6-8xP, pour filet métrique ISO M33 au pas de 3,50 mm et classe de tolérance 6H, dimensions selon norme ISO 529 avec queue de 22,4 mm et carré d'entraînement de 18,0 mm, en HSS finition brillante pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M33NO1
GradeLumineux
Product Number5976778
Product FamilyE500
Dimensions
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.8819"
Connection Dia. — mm (DCON)22.4 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)33
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)3.5 mm
Thread Pitch — in (TP)0.1378"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154342
EAN7320760154342
File Type Download
E500M33NO1 — Line Drawing PDF Download
