E500M4NO7
E500M4NO7

E500M4NO7

UGC DOR5976785
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.29 CAD - $25.29 CAD
$25.29 CAD
$25.29 CAD - $25.29 CAD
$25.29 CAD

Vendu en lots de : 1

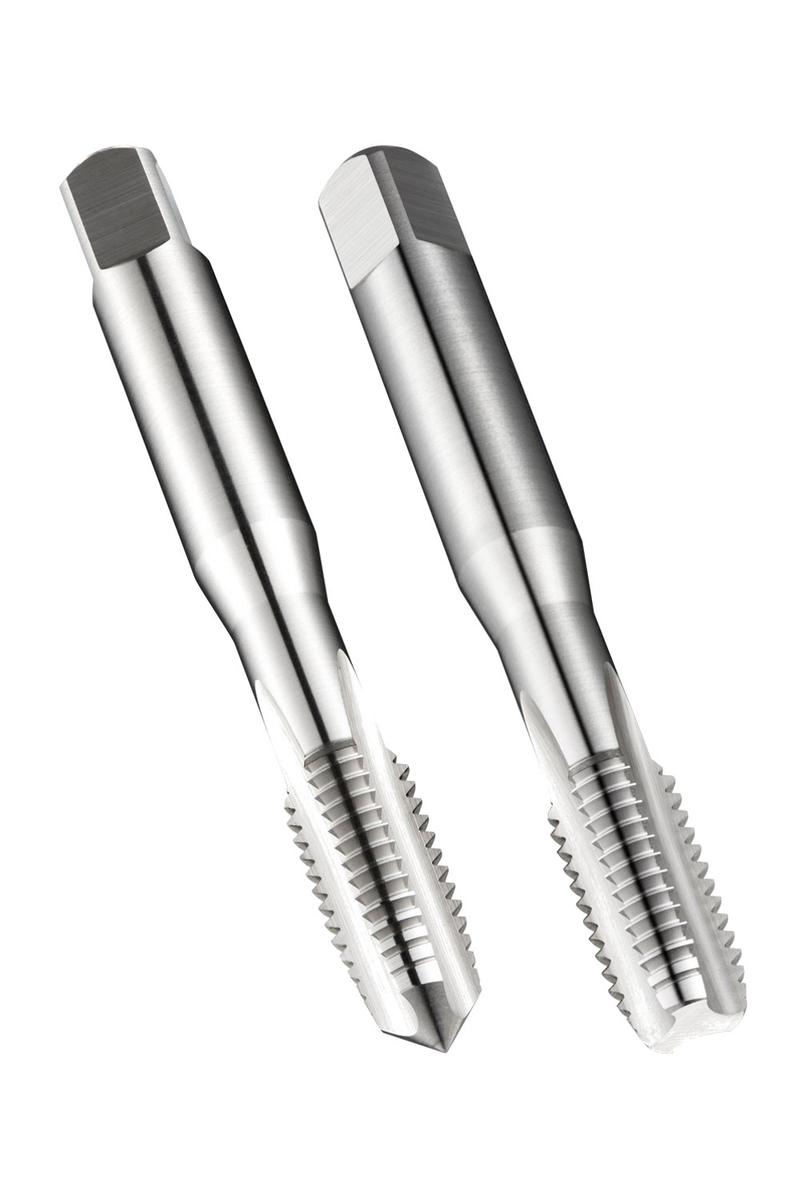

Jeu de tarauds à main à coupe droite NO7 pour filetage métrique ISO M4 au pas de 0,70 mm et de tolérance 6H, composé de 1 taraud d'ébauche 4-6 filets et de 1 taraud de finition 2-3 filets, dimensions selon la norme ISO 529 avec une queue de 4,0 mm et un carré d'entraînement de 3,15 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M4NO7
GradeLumineux
Product Number5976785
Product FamilyE500
Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.5512"
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number154779
EAN7320760154779
File Type Download
E500M4NO7 — Line Drawing PDF Download
