E500M4X.75NO3
E500M4X.75NO3

E500M4X.75NO3

UGC DOR5976802
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.93 CAD - $25.93 CAD
$25.93 CAD
$25.93 CAD - $25.93 CAD
$25.93 CAD

Vendu en lots de : 1

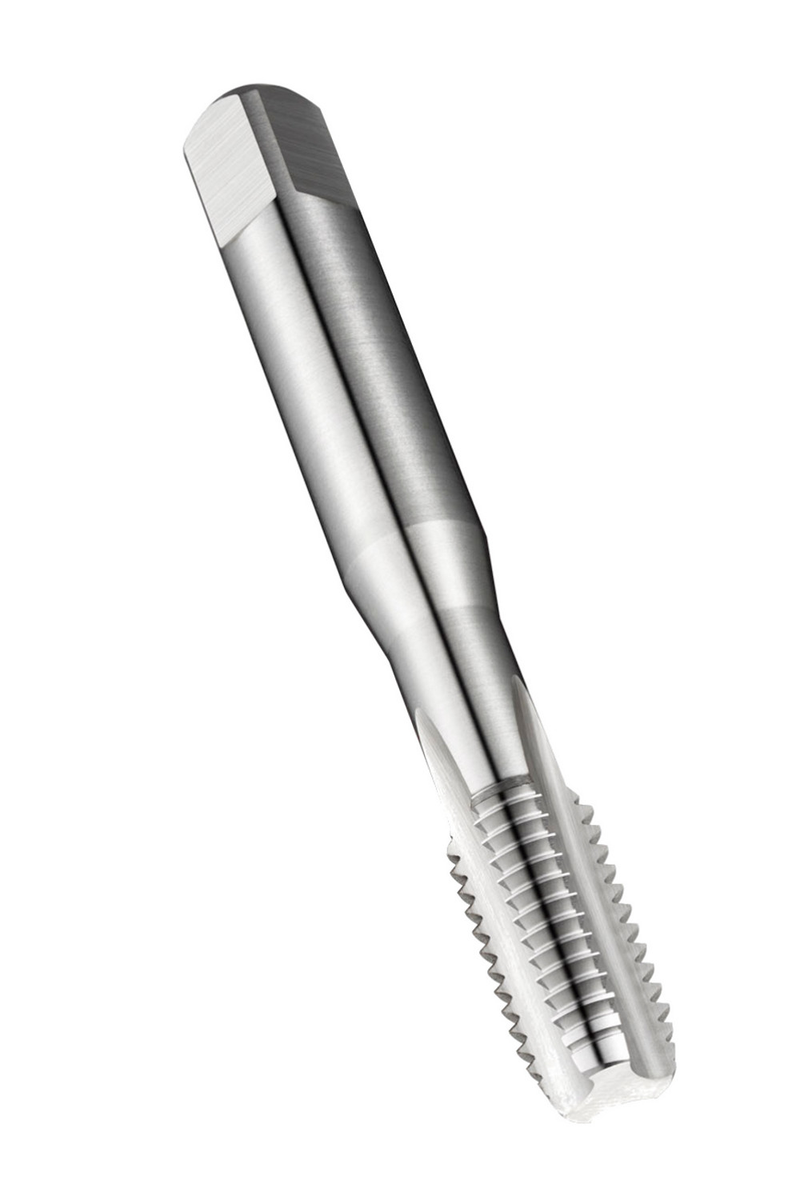

Taraud à main à coupe droite NO3 avec entrée courte (2-3 filets), pour filetage ISO métrique M4 au pas de 0,75 mm et tolérance 6H, dimensions conformes à la norme ISO 529 avec queue de 4,0 mm et carré d'entraînement de 3,15 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les aciers au carbone non alliés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E500M4X.75NO3
GradeLumineux
Product Number5976802
Product FamilyE500
Dimensions
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.5512"
Usable Length — mm (LU)14.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.0295"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number160237
EAN7320760160237
File Type Download
E500M4X.75NO3 — Line Drawing PDF Download
