E513M10X1.25NO7
E513M10X1.25NO7
E513M10X1.25NO7

E513M10X1.25NO7

UGC DOR5976833
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.23 CAD - $78.23 CAD
$78.23 CAD
$78.23 CAD - $78.23 CAD
$78.23 CAD

Vendu en lots de : 1

Jeu de tarauds à main à coupe droite NO7 pour filet M10 métrique fin au pas de 1,25 mm et classe de tolérance 6H, composé de 1 taraud d’amorce 4-6xP et de 1 taraud de finition 2-3xP, dimensions selon la norme ISO 529 avec un diamètre de queue de 10,0 mm et un carré d’entraînement de 8,0 mm, en HSS finition brillante pour le taraudage de trous débouchants ou borgnes jusqu’à 1,5xD dans l’acier au carbone doux et l’acier au carbone ordinaire, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)E513M10X1.25NO7
Product Name (ISO)E513M10X1,25NO7
GradeLumineux
Product Number5976833
Product FamilyE513

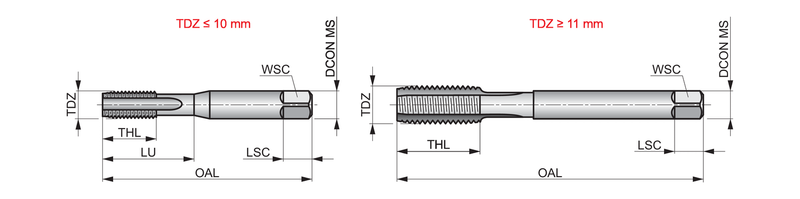

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)1.3386"
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number155530
EAN7320760155530
File Type Download
E513M10X1.25NO7 — Line Drawing PDF Download
