E504M5NO3
E504M5NO3
E504M5NO3

E504M5NO3

UGC DOR5976848
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.34 CAD - $18.34 CAD
$18.34 CAD
$18.34 CAD - $18.34 CAD
$18.34 CAD

Vendu en lots de : 1

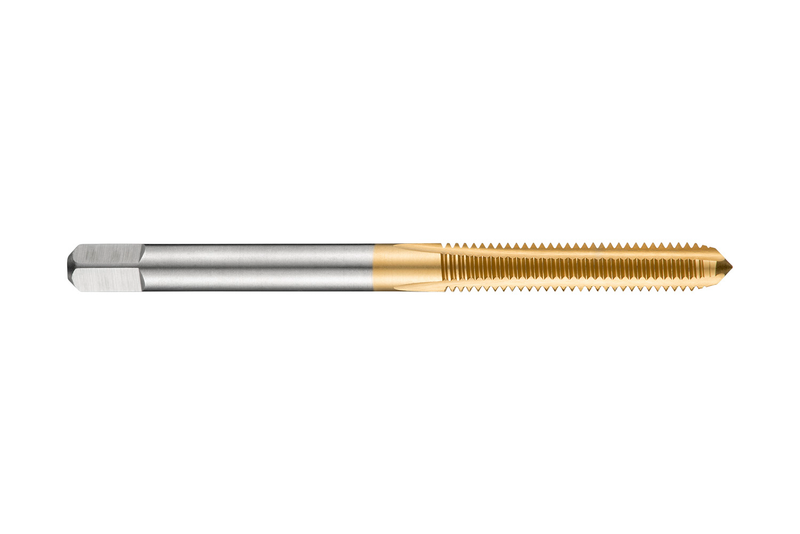

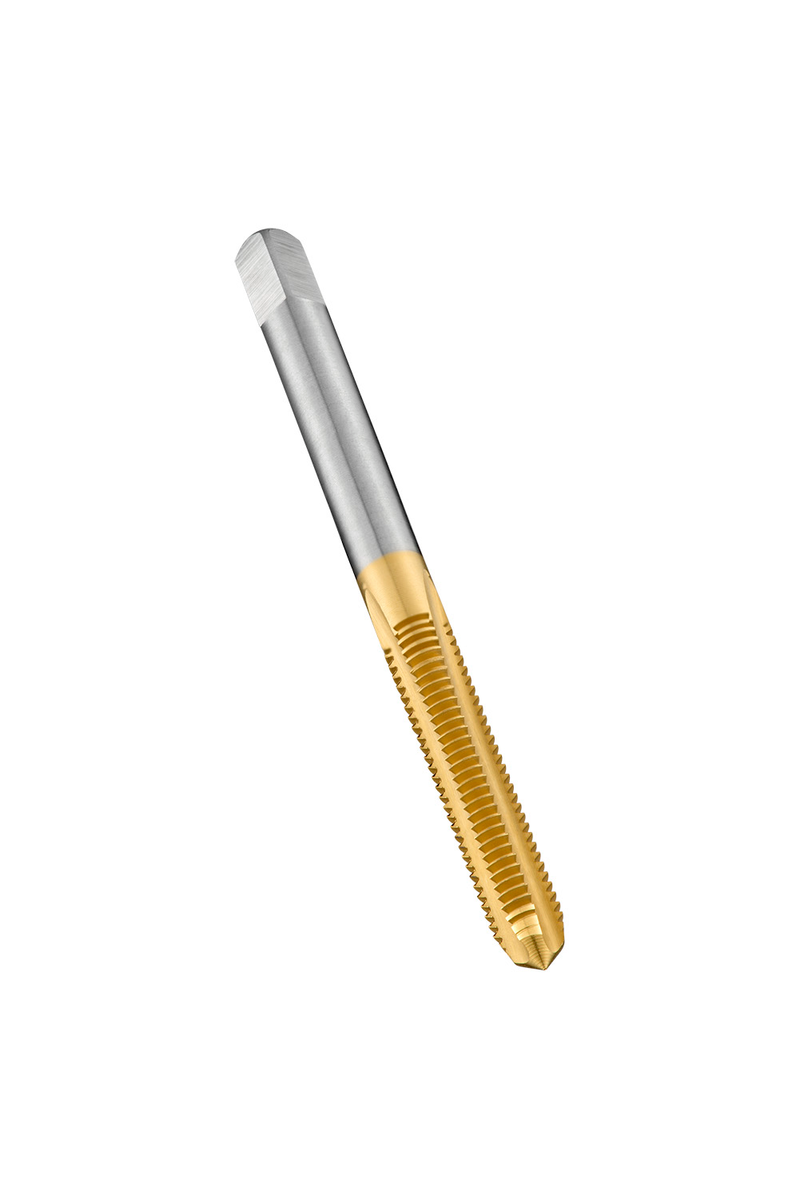

Taraud à main à coupe droite NO3, entrée courte (2-3 filets), pour filet métrique ISO M5 au pas de 0,80 mm, tolérance 6H, dimensions selon la norme ISO 529, queue de 5,0 mm et carré d'entraînement de 4,0 mm, en acier rapide (HSS) avec revêtement TiN, pour taraudage de trous débouchants ou borgnes jusqu'à 1,5xD dans les aciers de décolletage et les fontes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E504M5NO3
GradeTiN
Product Number5976848
Product FamilyE504

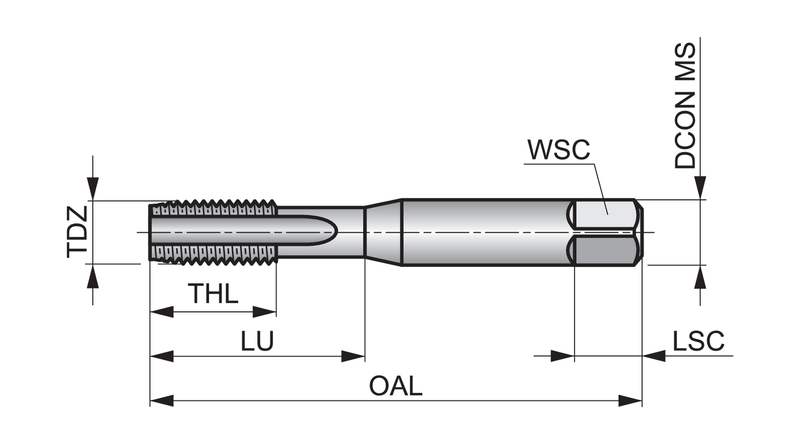

Dimensions
Overall Length — in (OAL)2.2835"
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — in (LU)0.8661"
Usable Length — mm (LU)22.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number122501
EAN7320760122501
File Type Download
E504M5NO3 — Line Drawing PDF Download
